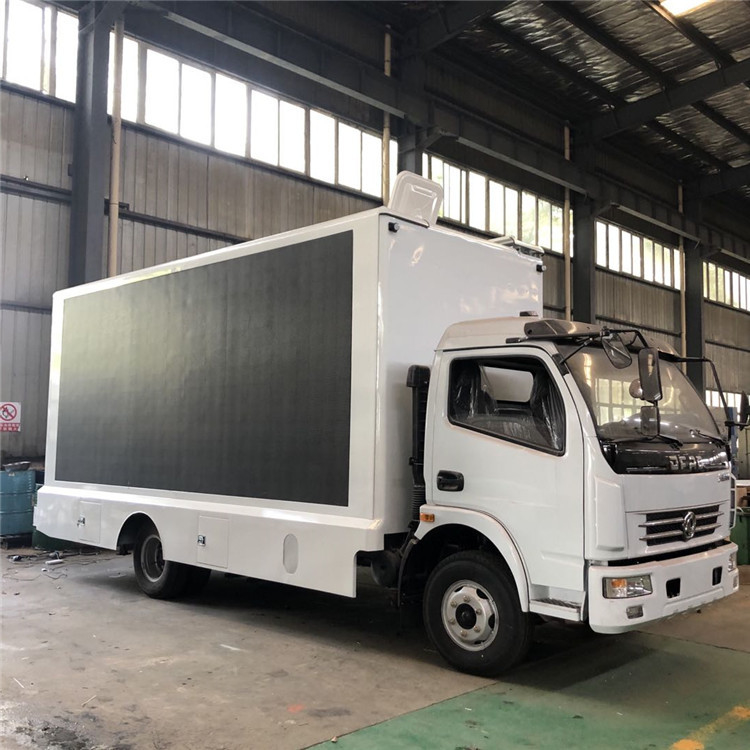

Dongfeng 4x2 Mobile LED Advertising Truck for Outdoor Digital Display
Desciption:
LED truck is also called LED video truck, LED advertising truck, mobile LED truck, LED TV screen truck, LED billboard truck,
advertisment truck, LED screen truck, LED display truck, etc.
1. Chassis: Dongfeng DLK 4x2, 6 wheelers, left hand drive
2. Engine: Euro 3 emission standard diesel engine 120hp
3. Led box body: 3 sides P5 led screens, led screen size: left and right 4800*2080mm, rear 1600*1600mm

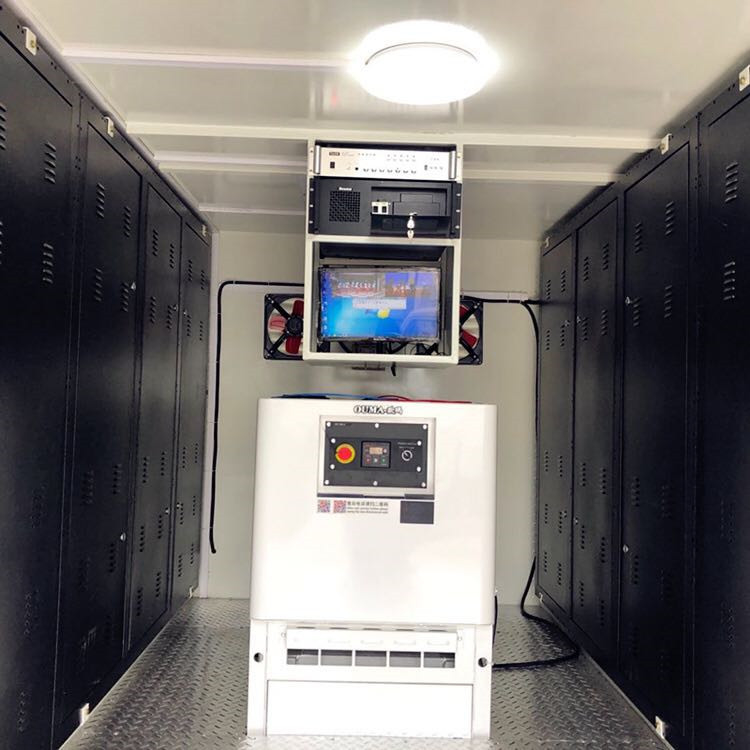

4. With OUMA 25KW silent diesel generator, industrial computer with control system, 4 waterproof speakers, 1 amplifier, 1 console.
5. Optional: 1 side led screen, 2 sides led screen, lifting system for led screen, mobile stage, 4 hydraulic legs, etc.
6. Optional LED pannels: P4, P5 or P6 led displays.
Specification:
| Classification |
Item |
Unit |
Parameter |
| Vehicle |
Vehicle model |
|
Dongfeng DLK Led Advertising Billboard Truck |
| Manufacturer |
|
Cheng Li Special Automobile Co.,Ltd |
| Overall dimensions |
mm |
7290×2330×3350 |
| Curb weight |
kg |
7205 |
| Traction system |
|
4×2 |
| Max speed |
km/h |
90 |
| Chassis |
Chassis model |
|
EQ1090T9ADJ3AC |
| Manufacturer |
|
DongFeng Automobile Co., Ltd |
| Number of axles |
|
2 |
| Wheel base |
mm |
3800 |
| Tire specification |
|
7.50R16 |
| Number of tires |
|
6+1 spare |
| F/R track base |
mm |
1770/1586 |
| Engine |
Engine model |
|
YC4FA120-33 |
| Manufacturer |
|
GuangXi YuChai Machinery Co., Ltd |
| Fuel type |
|
Diesel |
| Power |
kw |
88 |
| Engine horse power |
hp |
120 |
| Displacement |
ml |
4260 |
| emission standard |
|
Euro 3 |
| Driver’s cab |
Brand |
|
DongFeng |
| Model |
|
Flat head, single row |
| Allowable seats |
|
2 |
| Steering |
|
Left hand drive |
| Transmission |
|
5-speed with over drive |
| Operation control system |
|
Electrically hydraulic control |
| Air-conditioning |
|
Optional |
| Standard equipment |

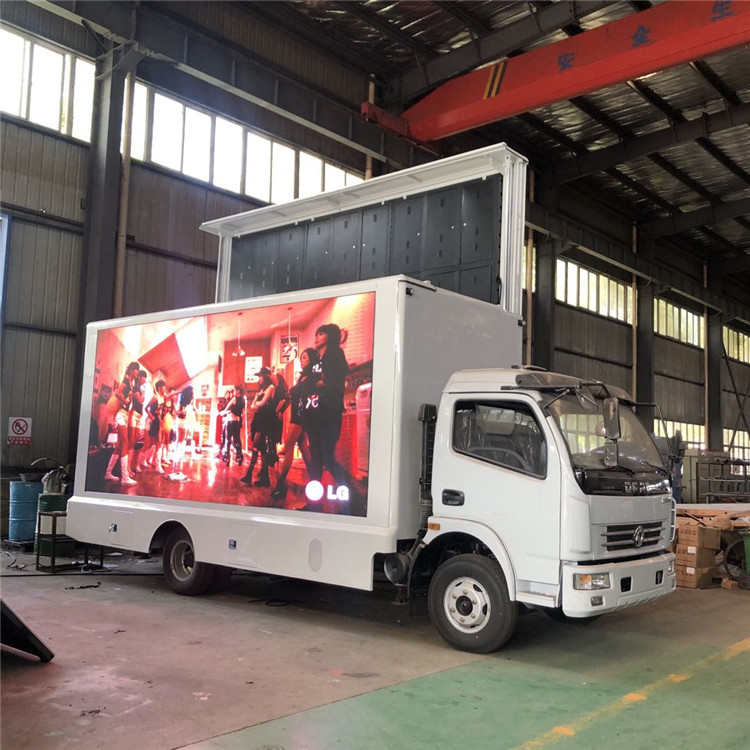

1> 3 sides (left, right and rear) P5 waterproof full color led screen;

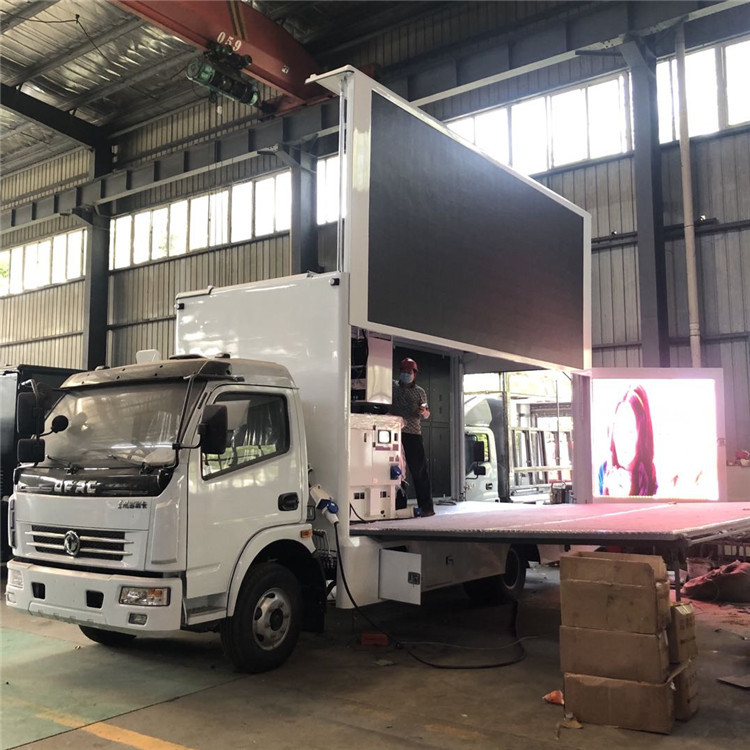

2> Both sides hydraulic lifting system for screens;
3> With 4 hydraulic legs and left side 14.5 m2 mobile hydraulic stage;
4> With GREE 1.5P air conditioner in the van;
5> 5cm composite steel box, aluminum alloy pattern plate floor;
6> Inside and outside the electric distribution box;
7> Loop ventilation cooling system;
8> Ouma silent diesel generator;
9> One industrial computer with control system, 4 waterproof speakers, 1 amplifier, 1 console;
|
| Color &Painting |
White |
|
Application: Widely used for outdoor commercial advertising, stage shows, live broadcast, sports stadium advertising, etc.
Our Services
1. Factory Supply:
a. one of the biggest and professional special using truck manufacturers in china,
b. more than 300 kinds of special truck for your needing.
2. OEM Ability: produce according to your demand, material, size, color and logo are optional for you.
3. Good Quality:
a. has solid technology, advanced equipments; reliant quality, flexible modes of operation and strict quality control system,
b. passed the ISO9001-2008 and the 3C (China Compulsory Certification),
c. our brand is china famous brand with good reputation in the market.
4. Good Service: you can contact us by 24-hour hotline or whatsapp or email.
5. Fast Delivery: 15-20 working days after payment, safe and quick delivery.
FAQ
1. Price term: FOB Shanghai, China or CIF or DAF, according to customers' requirements.
2. Payment: 30-50% deposit after order confirmation, balance should be paid before delivery. All by T/T.
3. Delivery time: 15-20 working days after full payment is received.
4. Standard Steering: Left-hand drive, if you need Right-hand drive, please inform us, will make special order for you.
We highly recommend this LED billboard truck. It's in excellent condition with good quality and competitive price. For further information, please feel free to contact me, we will offer our best service.
