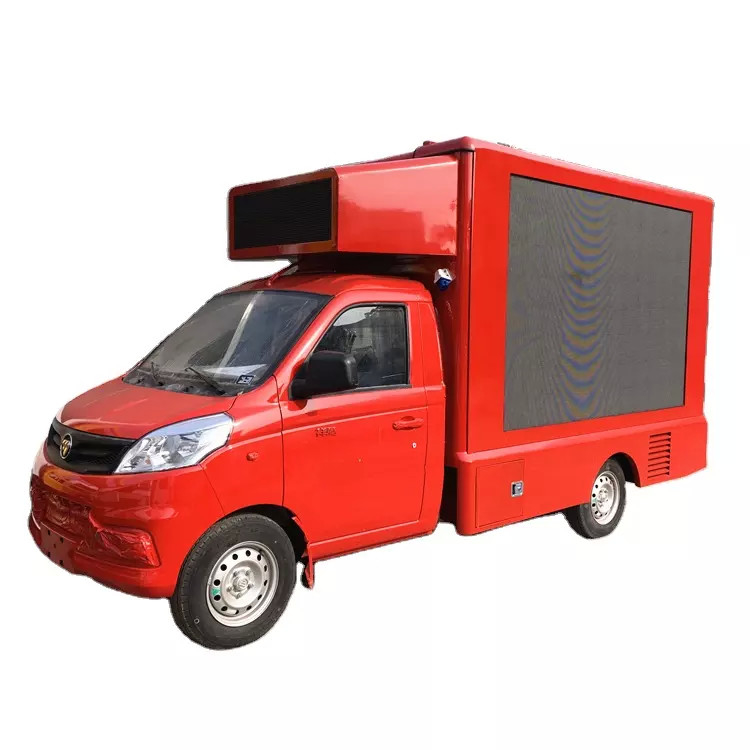

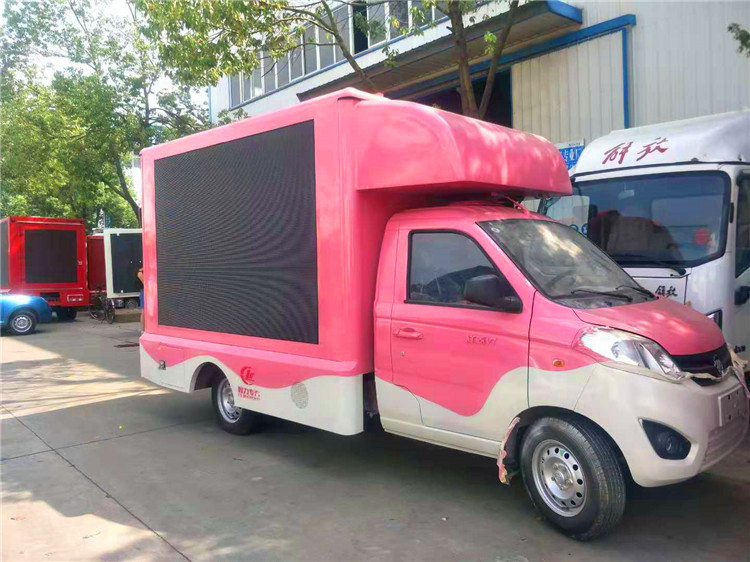

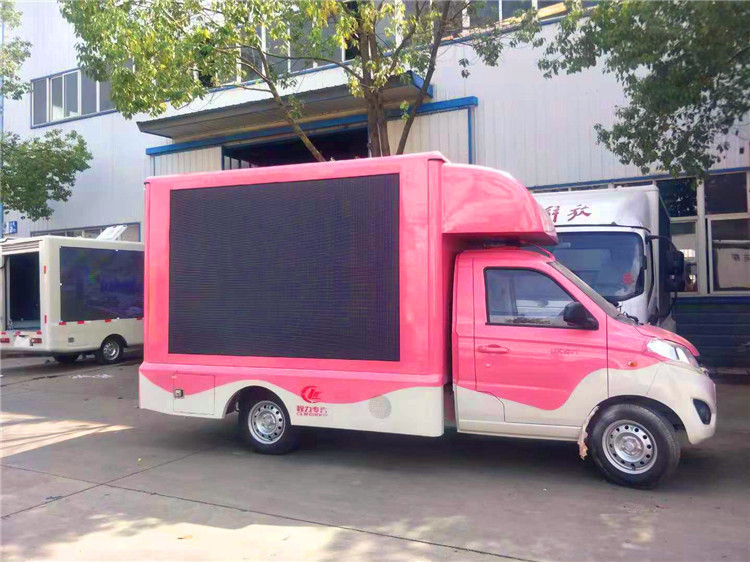

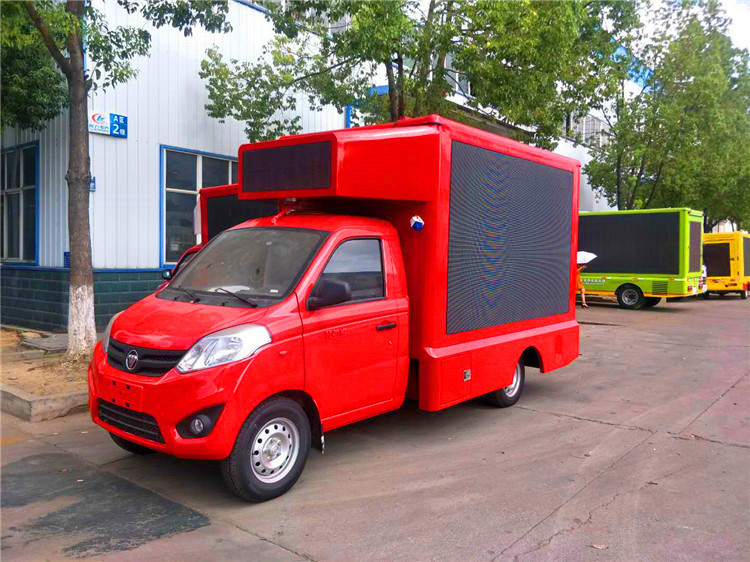

Foton 4x2 mini LED Display Truck P4 P5 P6 Mobile Billboard Trucks
Desciption:
Our LED display vehicles can be customizable. We provide LED display trucks, LED trailer, LED box for truck mounted, etc.
The LED display trucks could be of one full color side screen, two full color side screens, three full color side and rear screens.
The pixel’s pitch for the LED screen could be P3, P4, P5, P6, etc.
The area of the left or right screen mainly ranges from 3.22 m3 to 12.2 m3.
The basic equipment includes silent generator, aluminum checkered plate wall, waterproof floors, switch power distribution system, integrated electromechanical control, lighting, ventilation fans, shockproof computers, and gigabit media control system, stereos, one amplifier, four waterproof column loud speakers, and other tiny accessory facilities within the body.
We provide the upper LED box including the basic equipmet without chassis as well, so you can mount the LED box on your chassis in local.
Specification:
|
Item
|
Parameter
|
|
Vehicle name
|
Foton 4x2 mini led advertising truck mobile led display
|
|
Vehicle model
|
CLW5020XXCB6
|
|
Chassis model
|
BJ1030V4JV5-01
|
|
Curb weight
|
2415 kg
|
|
Overall dimensions
|
5100×1710×2640 mm
|
|
Wheel base
|
3070 mm
|
|
Fuel type
|
Gasoline
|
|
Engine model
|
DAM15KR
|
|
Engine horse power
|
115 hp
|
|
Displacement
|
1498 ml
|
|
Emission standard
|
Euro VI
|
|
Tire specification
|
175R14LT 8PR
|
|
Number of tires
|
4+1 SPARE
|
|
Traction system
|
4×2
|
|
Transmission
|
5-speed with over drive
|
|
Max speed
|
100 km/h
|
|
Standard Equipment
|
1> One side waterproof P3/P4/P5/P6 full color LED screen
2> The other side glass advertising light box with subtitle
3> The rear side monochrome screen
4> 5cm composite steel box, aluminum floor;
5> Inside and outside the electric distribution box;
6> Loop ventilation cooling system;
7> Yihu gasoline generator;
8> 1 industrial computer with control system, 4 waterproof speakers, 1 amplifier, 1 console.
|
|
Production cycle
|
15-20 working days
|
|
Warranty
|
12 month, from the date of supply
|
Application: Widely used for outdoor commercial advertising, stage shows, live broadcast, sports stadium advertising, etc.
Our Services
1. Factory Supply:
a. one of the biggest and professional special using truck manufacturers in china,
b. more than 300 kinds of special truck for your needing.
2. OEM Ability: produce according to your demand, material, size, color and logo are optional for you.
3. Good Quality:
a. has solid technology, advanced equipments; reliant quality, flexible modes of operation and strict quality control system,
b. passed the ISO9001-2008 and the 3C (China Compulsory Certification),
c. our brand is china famous brand with good reputation in the market.
4. Good Service: you can contact us by 24-hour hotline or whatsapp or email.
5. Fast Delivery: 15-20 working days after payment, safe and quick delivery.
FAQ
1. Price term: FOB Shanghai, China or CIF or DAF, according to customers' requirements.
2. Payment: 30-50% deposit after order confirmation, balance should be paid before delivery. All by T/T.
3. Delivery time: 15-20 working days after full payment is received.
4. Standard Steering: Left-hand drive, if you need Right-hand drive, please inform us, will make special order for you.
We highly recommend this mobile LED truck. It's in excellent condition with good quality and competitive price. For further information, please feel free to contact me, we will offer our best service.
