Place of Origin:
Suizhou city, Hubei province
Brand Name:
CLW
Certification:
ISO
Model Number:
CLW5181ZYS6

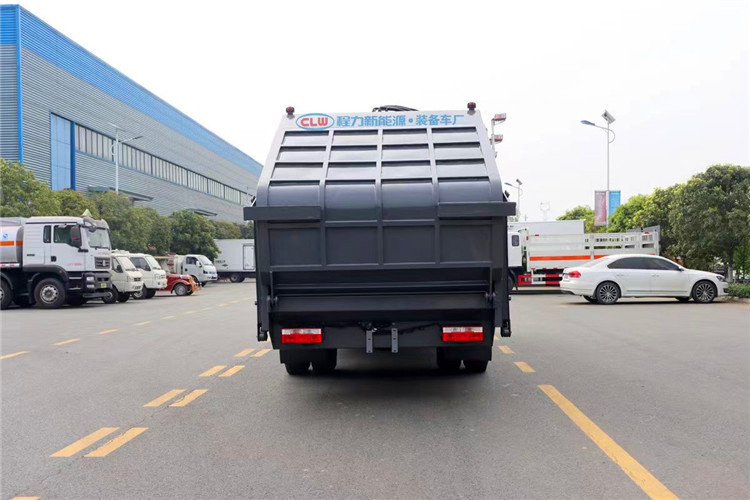

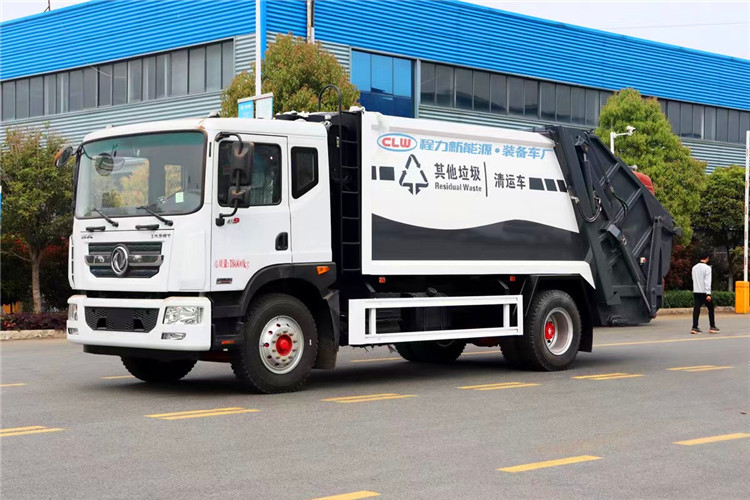

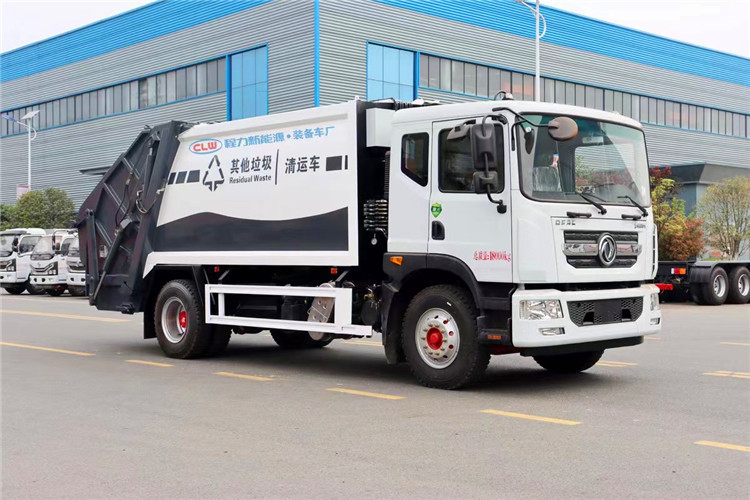

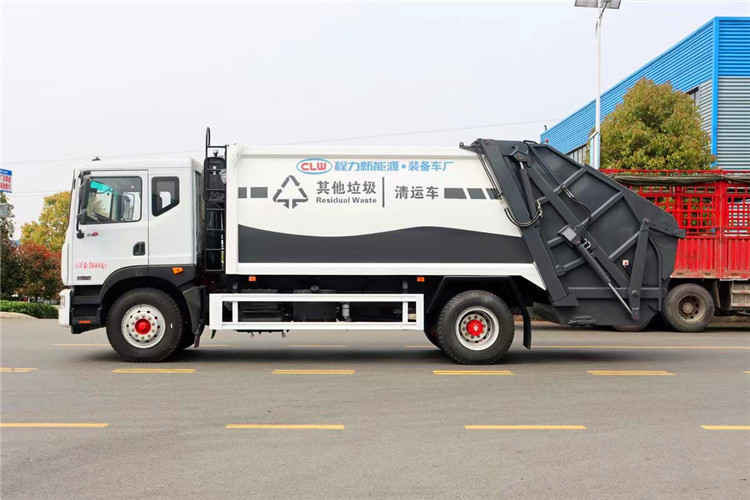

14 Cubic Meters Waste Collection Truck DONGFENG D9 Garbage Compactor Truck
Desciption:
1 Compressed garbage truck is also called Compression garbage truck, compactor garbage truck,Waste Compactors truck, Compactor garbage truck. It consists of a sealed garbage compartment, hydraulic system, and operating system.
2.It is widely used in collection, compression and transit garbage which come from cities, towns, rural areas, large factories and mining enterprises and living areas of colleges and universities.
3. Compression type garbage truck can realize garbage collection and transportation capacity reduction, sealing, no secondary pollution, reduce the labor intensity of sanitation workers, improve labor efficiency and other needs.
1>. High Quality Factory, famous professional and biggest garbage trucks manufacturer direct sale Compressed garbage truck in China;
2>. Compactor garbage truck consists of a sealed garbage compartment, hydraulic system, and operating system;
3>. High compression ability, huge loading quantity Compressed garbage truck.
4>. Automatic design, saving labor, energy conservation and environment protection Compressed garbage truck.
Specification:
Classification | Item | Unit | Parameter |
Vehicle | Production name | Dongfeng D9 14m3 Compactor Garbage Truck | |
Vehicle model | CLW5181ZYS6 | ||
Overall dimensions | mm | 7960×2500×3250 | |
Gross weight | kg | 18000 | |
Curb weight | kg | 10500 | |
Traction system | 4*2 | ||
Max speed | km/h | 105 | |
Chassis | Chassis model | DFL1160BX1V | |
Number of axles | 2 | ||
Wheel base | mm | 4500 | |
Tire specification | 9.00R20 | ||
Number of tires | 6+1 | ||
F/R track base | mm | 1880/1800 | |
Engine | Engine model |
B6.2NS6B210
|
|
Manufacturer | Dongfeng Cummins Engine Co.,Ltd | ||
Fuel type | Diesel | ||
Power | kw | 155 | |
Engine horse power | hp | 210 | |
Displacement | ml | 6700 | |
Emission standard | Euro III | ||
Driver’s cab | Brand | Dongfeng | |
Model | Flat head, single row | ||
Allowable seats | 3 | ||
Steering | Left hand drive (can be customized to right hand) | ||
Transmission | 5-speed with over drive | ||
Operation control system | Electrically hydraulic control | ||
Air-conditioning | Optional per request | ||
Equipment | 1> Equipped with hermetic dustbin, hydraulic system and operating system; 2> Hermetic dustbin: side 4mm, bottom 4mm carbon steel; 3> Automatic compress and uninstall; 4> Optional: Rear hanging bucket or small landing bin to turn. |
Our Services
1. Factory Supply:
a. one of the biggest and professional special using truck manufacturers in china,
b. more than 300 kinds of special truck for your needing.
2. OEM Ability: produce according to your demand, material, size, color and logo are optional for you.
3. Good Quality:
a. has solid technology, advanced equipments; reliant quality, flexible modes of operation and strict quality control system,
b. passed the ISO9001-2008 and the 3C (China Compulsory Certification),
c. our brand is china famous brand with good reputation in the market.
4. Good Service: you can contact us by 24-hour hotline or whatsapp or email.
5. Fast Delivery: 15-20 working days after payment, safe and quick delivery.
1. Price term: FOB Shanghai, China or CIF or DAF, according to customers' requirements.
2. Payment: 30-50% deposit after order confirmation, balance should be paid before delivery. All by T/T.
3. Delivery time: 15-20 working days after full payment is received.
4. Standard Steering: Left-hand drive, if you need Right-hand drive, please inform us, will make special order for you.
We highly recommend this compactor garbage truck. It's in excellent condition with good quality and competitive price. For further information, please feel free to contact me, we will offer our best service.
