Place of Origin:
Suizhou city, Hubei province
Brand Name:
CLW
Certification:
ISO, CCC
Model Number:
CLW5160ZKXD3

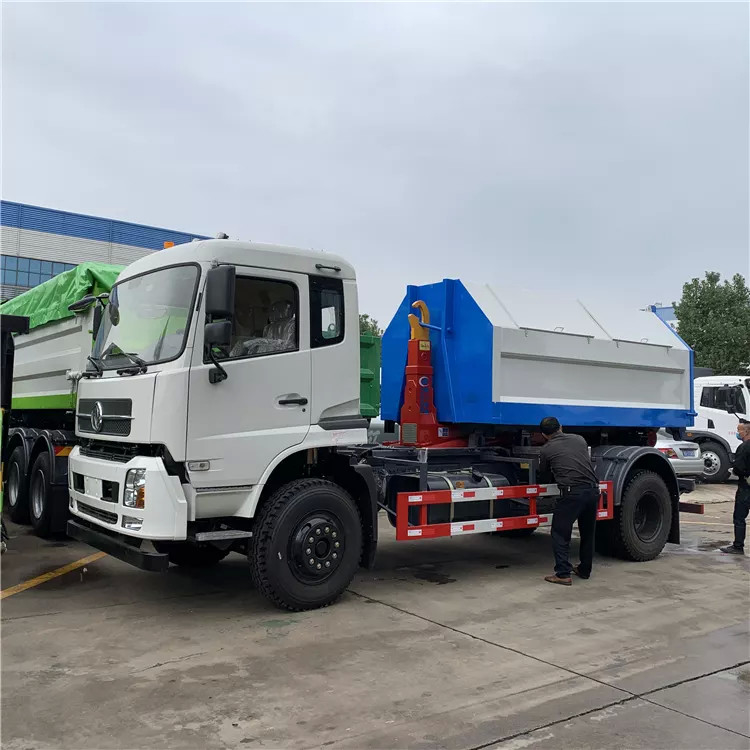

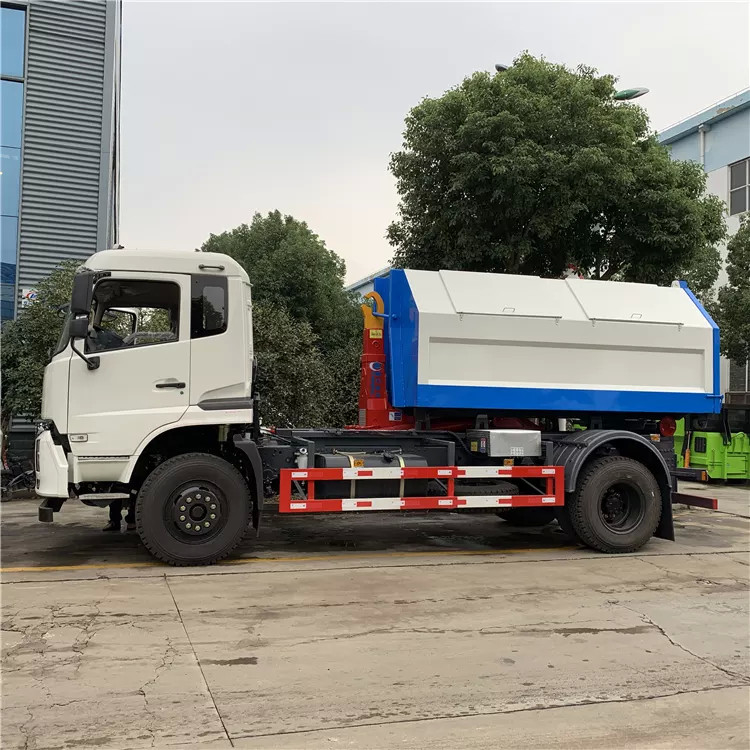

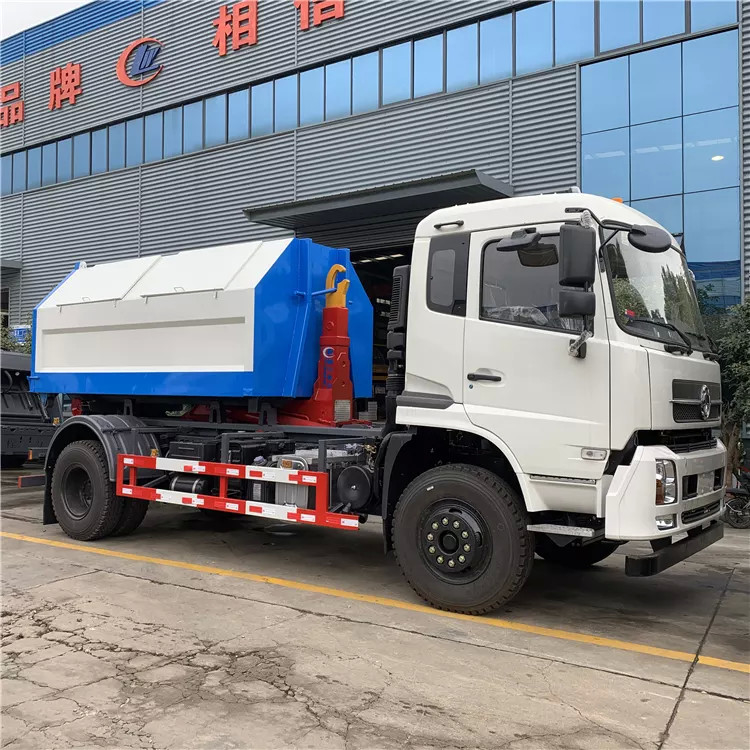

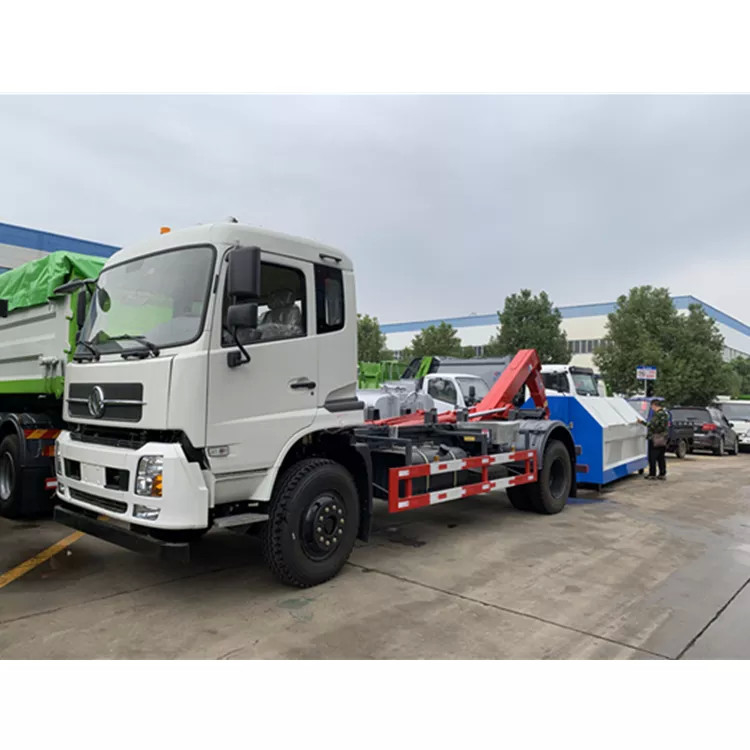

Dongfeng 10 tons hook lift garbage truck arm roll waste collection truck
Desciption:
1. Arm-roll garbage trucks also called detachable garbage trucks, pull arm garbage trucks, hydraulic arm garbage truck, single-arm garbage truck and hook-arm garbage trucks, etc.
2. This garbage truck has both functions of self-unloading of garbage bins and automatic loading and unloading of garbage boxes by the hydraulic system, with high working efficiency.
3. The garbage compartment of the garbage truck can be hoisted up and down, and the garbage can be dumped by itself.
4. The arm garbage truck can be equipped with multiple garbage bins in one truck, and work together to clean up garbage.
Currently we produce the garbage compactor truck from 4 m3 ~ 18 m3.
Skip swing arm container garbage truck from 4~10 m3.
Arm-roll garbage truck from 3~20 m3.
Hermetic dump garbage truck from 3 m3~10 m3.
Specification:
Item | unit | parameter | ||
Vehicle model | CLW5160ZKXD3 Arm-roll Garbage Truck | |||
Chassis model | DFL1160BX | |||
Overall dimensions | mm | 7300×2470×2900 | ||
Fact cubage | L | 12000 | ||
Mass in working order | kg | Appro×6595 | ||
Wheel base | mm | 4500 | ||
F/R track base | 1940/1860 | |||
Approach/departure angle | ° | 25/6 | ||
Exhaust/hp | ml/kw | 5900/140 | ||
Max speed | km/h | 90 | ||
Tire specification | 10.00R20 | Engine type | B190-33 | |
Traction system | 4×2 | transmission | 6-speed with over drive | |
Number of axles | 2 | Electric system | 24v | |
Operation control system | Electrically hydraulic control | Allowable passengers in cab | 3 | |
Equipment |
Equipped with dustbin, hydraulic system and operating system Equipped with one advanced double acting hydrocylinders One vehicle can cooperate with several dustbins to improve the ability of cycle operation.cycling time<60s |
|||
Engine | Dongfeng Cummins diesel engine,190 hp | |||
Production cycle | 20-25 days | |||
Warranty | 12 month,from the date of supply |
Our Services
1. Factory Supply:
a. one of the biggest and professional special using truck manufacturers in china,
b. more than 300 kinds of special truck for your needing.
2. OEM Ability: produce according to your demand, material, size, color and logo are optional for you.
3. Good Quality:
a. has solid technology, advanced equipments; reliant quality, flexible modes of operation and strict quality control system,
b. passed the ISO9001-2008 and the 3C (China Compulsory Certification),
c. our brand is china famous brand with good reputation in the market.
4. Good Service: you can contact us by 24-hour hotline or whatsapp or email.
5. Fast Delivery: 15-20 working days after payment, safe and quick delivery.
1. Price term: FOB Shanghai, China or CIF or DAF, according to customers' requirements.
2. Payment: 30-50% deposit after order confirmation, balance should be paid before delivery. All by T/T.
3. Delivery time: 15-20 working days after full payment is received.
4. Standard Steering: Left-hand drive, if you need Right-hand drive, please inform us, will make special order for you.
We highly recommend this compactor garbage truck. It's in excellent condition with good quality and competitive price. For further information, please feel free to contact me, we will offer our best service.
