Light Duty Refrigerated Box Truck 100km/H , Choi Steel Frozen Food Delivery Truck

Light Duty Refrigerated Box Truck 100km/H , Choi Steel Frozen Food Delivery Truck

Light Duty Refrigerated Box Truck

Refrigerated Box Truck 100km/h

choi steel Frozen Food Delivery Truck

Place of Origin:

Suizhou city, Hubei province

Brand Name:

CLW

Certification:

ISO, CCC

Model Number:

CLW5040XLC5

Contact Us
Request A Quote
Product Details
Product Name:
3-5 Tons Refrigerator Truck
Overall Dimension:
5995×2090×2950 Mm
Van Box Size:
4000×1850×1880 Mm
Temperature Range:
-5 To -15 Degree
Refrigeration Unit:
Kingtec, Thermoking, Carrier, Hanya, Hanxue
Color & Logo:
Per Customer Requirement
Transmission:
Manual
Drive Type:
4x2 Left Hand Drive
Highlight:

Light Duty Refrigerated Box Truck

,

Refrigerated Box Truck 100km/h

,

choi steel Frozen Food Delivery Truck

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
USD13,000-USD18,000
Packaging Details
Nude, ship by roll roll ship or bulk ship
Delivery Time
20 working days after deposit received
Payment Terms
T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability
5000 units per year
Product Description

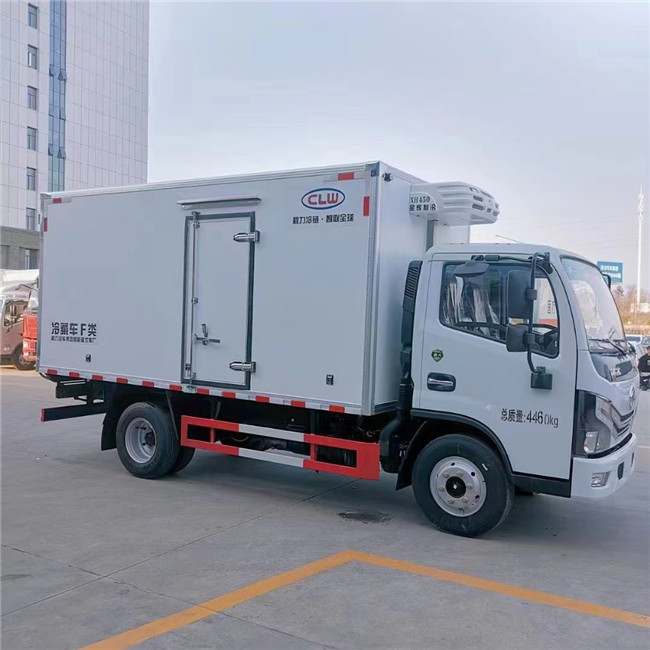

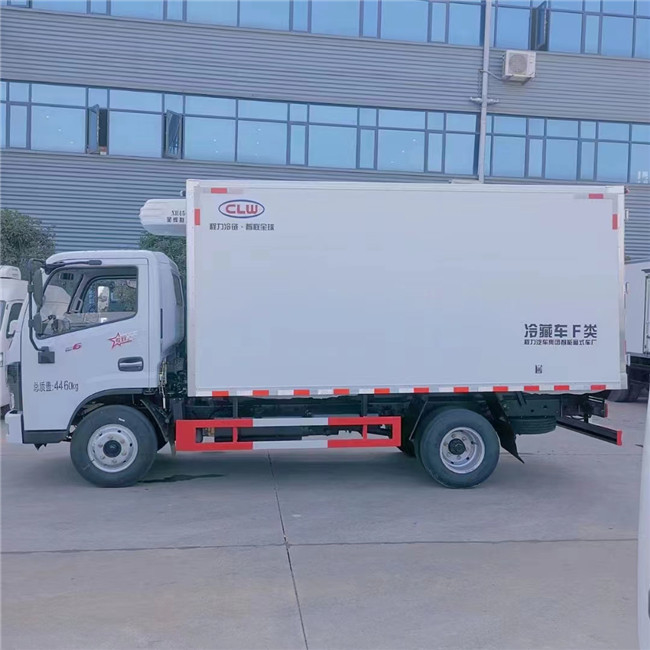

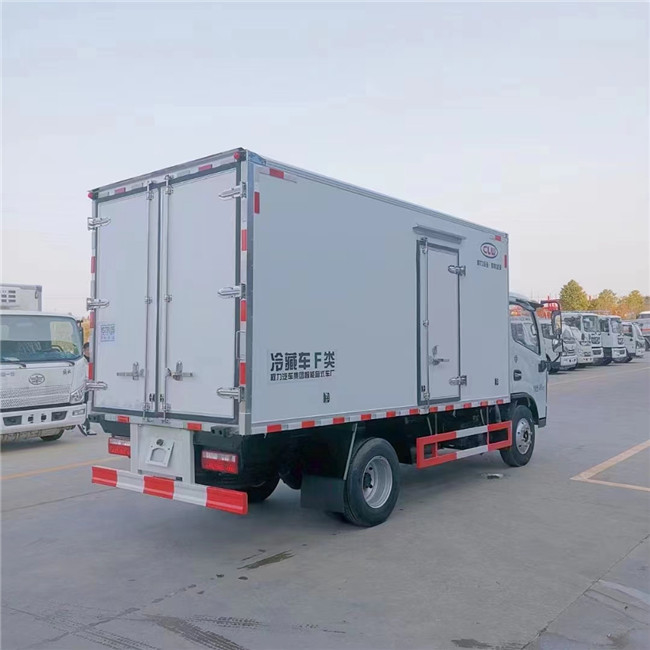

DONGFENG Light Duty Refrigerated Box Truck Frozen Food Transport Truck



Desciption:



Refrigerated truck is widely used to transport frozen foods (ice truck), dairy (milk truck) fruits and vegetables (fresh transporter) vaccine and drug transporter (vaccine truck), etc

Our freezer truck uses the most advanced fifth-generation closed polyurethane plate bonding structure. The surface plate materials are optional, such as reinforced fiber glass, stainless steel, aluminum alloy, choi steel, etc.

The body box after molding has advantage of light quality, high coefficient of heat preservation, strong impact resistance, no leakage and good corrosion resistance against the atmosphere, water, acid, alkali, salt and other medias.

By optimizing the design of the vehicle, it reduces the center of mass of the vehicle, and increases the effective volume. Through the test, the full vehicle efficiently reduces energy cost, and the service life is one to two times higher than the average refrigerated vans.

Specification:



Item unit parameter
Vehicle model   CLW5040XLC5 Dongfeng Refrigerated Truck
Chassis model   EQ1060TJ20D3
Overall dimensions mm 5995×2090×2950
Body internal dimensions 4000×1850×1880
Axle load kg 1800/2695
Loading capacity 1215
Gross weight 4495
Curb weight 3150
Wheel base mm 3300
F/R track base 1503/1494
Approach/departure angle ° 20/14
Traction system   4*2
Exhaust/kw ml/hp 3856/82
Max speed km/h 100
Fuel type Diesel Engine CY4100Q
Number of axles 2 Pieces of spring 6/6+5
Number of tires 6 Tire specification 7.00-16 8PR
Engine manufacturer Dongfeng Chaoyang Diesel Engine Co., LTD
Configuration

Refrigerator unit is HanXue, made in China, working temperature is minus 15 Celsius degree.

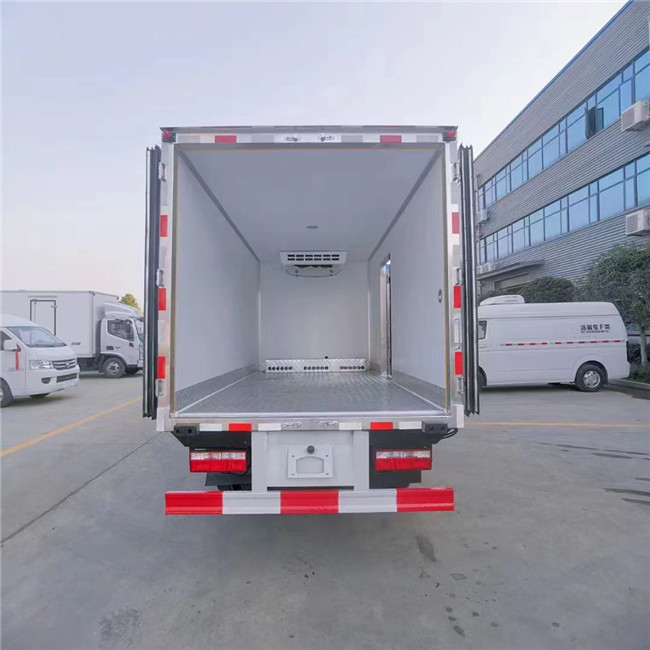

The material of the van surface is FRP, 8 cm thick PU inside.

Introduction The van with light weight, high strength, seamless, corrosion-resistant benefits; The van around the aluminum alloy decoration, door lock stainless steel standard parts.
Production cycle 15 working days after deposit is received
Warranty 12 months, from the date of supply



Application: Widely used for frozen food transportation, seafood transport, ice cream transport, medicine vaccine transport, etc.
Light Duty Refrigerated Box Truck 100km/H ,  Choi Steel Frozen Food Delivery Truck 0



Our Services

1. Factory Supply:
a. one of the biggest and professional special using truck manufacturers in china,
b. more than 300 kinds of special truck for your needing.

2. OEM Ability: produce according to your demand, material, size, color and logo are optional for you.

3. Good Quality:
a. has solid technology, advanced equipments; reliant quality, flexible modes of operation and strict quality control system,
b. passed the ISO9001-2008 and the 3C (China Compulsory Certification),
c. our brand is china famous brand with good reputation in the market.

4. Good Service: you can contact us by 24-hour hotline or whatsapp or email.

5. Fast Delivery: 15-20 working days after payment, safe and quick delivery.

FAQ

1. Price term: FOB Shanghai, China or CIF or DAF, according to customers' requirements.



2. Payment: 30-50% deposit after order confirmation, balance should be paid before delivery. All by T/T.



3. Delivery time: 15-20 working days after full payment is received.



4. Standard Steering: Left-hand drive, if you need Right-hand drive, please inform us, will make special order for you.



We highly recommend this refrigerator truck. It's in excellent condition with good quality and competitive price. For further information, please feel free to contact me, we will offer our best service.
