Place of Origin:
Suizhou city, Hubei province
Brand Name:
CLW
Certification:
ISO, CCC
Model Number:
CLW5111GSST3

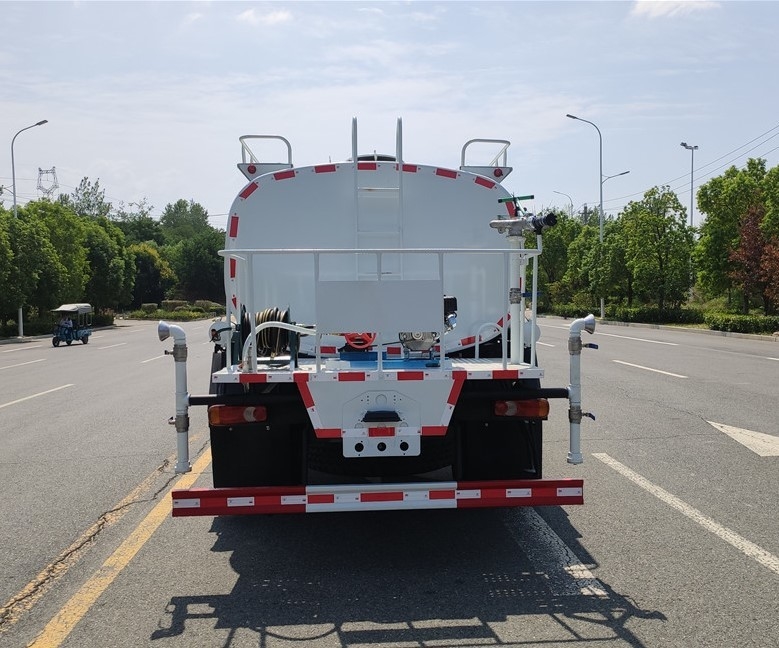

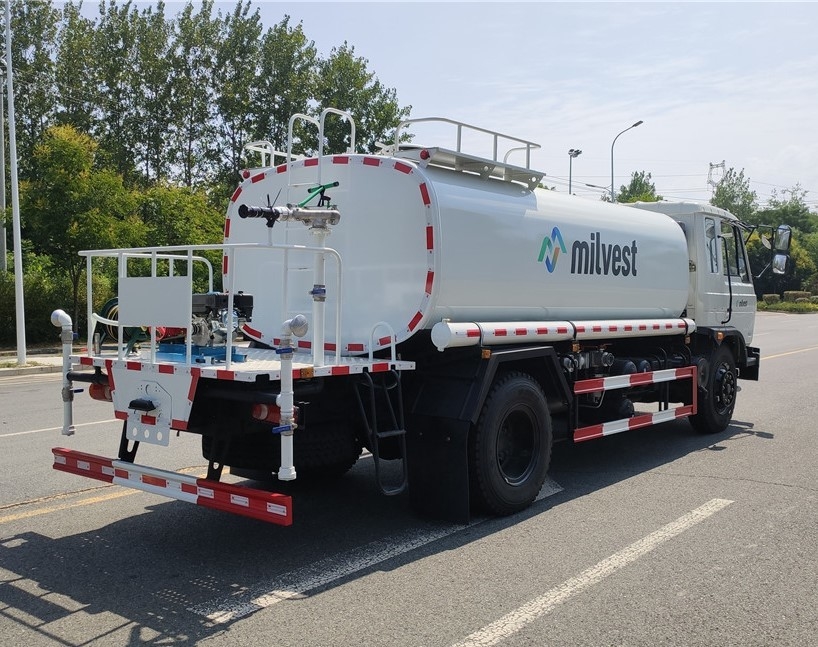

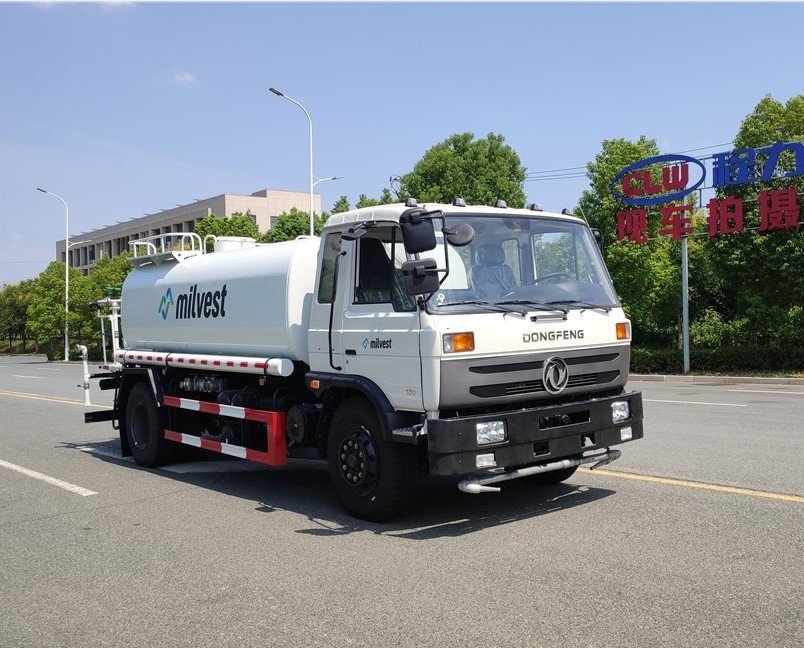

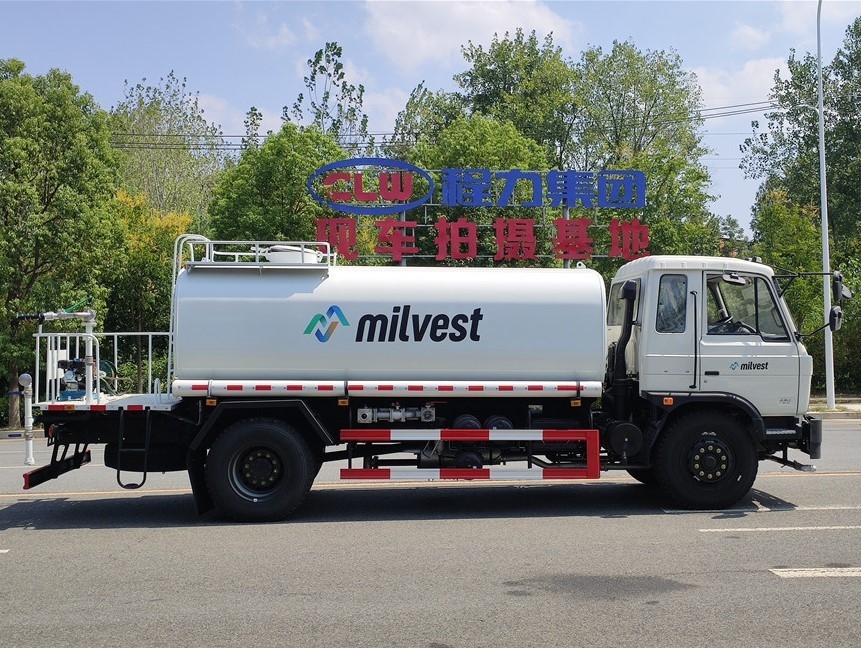

Lhd Rhd 10000 Liters Street Cleaning Water Tanker Truck 10m3 Water Sprinkler Truck
Desciption:
It sounds like you're describing a water tanker truck specifically designed for street cleaning and water sprinkling purposes. Here's a breakdown of the key features based on your description:
Capacity: The tanker truck has a capacity of 10,000 liters, which is equivalent to 10 cubic meters (m³) of water.
Functionality: It is used primarily for street cleaning and water sprinkling tasks.
Design: The truck is likely designed to be either left-hand drive (LHD) or right-hand drive (RHD), depending on the country's driving standards where it will be used.
Water Sprinkler System: It features a water sprinkler system that can be used for irrigating streets, suppressing dust, or even watering plants along roadsides.
Usage: Such trucks are commonly employed by municipalities, construction sites, and other entities involved in maintaining clean and dust-free roads.
Specifications: Beyond the capacity and usage, specific details could include the type of pump system used, materials for the tank construction (typically durable materials like stainless steel or reinforced plastic), and any additional features like adjustable nozzles for varying spray patterns.
These trucks are crucial for urban maintenance, helping to mitigate dust pollution and ensure cleaner environments in urban areas.
Specification:
Item | unit | parameter | ||
Vehicle model | CLW5111GSST3 Water Tanker | |||
Chassis model | EQ1110GLJ | |||
Overall dimensions | mm | 7500×2470×3050 | ||
Fact cubage | L | 10000 | ||
Mass in working order | kg | Appro×6800 | ||
Body internal dimensions | mm | 4200/2000/1150 | ||
Wheel base | 3950 | |||
F/R track base | 1900/1800 | |||
Approach/departure angle | ° | 27/13 | ||
Exhaust/kw | ml/kw | 5900/125 | ||
Max speed | km/h | 85 | ||
Tire specification | 9.00-20 | Engine type | B170-33 | |
Traction system | 4×2 | transmission | 6-speed with over drive | |
Number of axles | 2 | Electric system | 24v | |
Operation control system | Electrically hydraulic control | Allowable passengers in cab | 3 | |
Equipment |
Equipped with front(rear,side)sprinkler(sprinkling width>14m ) Equipped with rear working platform with water cannon (range>28m) Equipped with CLW pump(suction lift>6m) Equipped with fire valve,water valve,and filter gauze |
|||
Engine | DongFeng Cummins Environmental Protection,supercharge,diesel engine | |||
Production cycle | 15-20 days after depsoit received | |||
Warranty | 12 month,from the date of supply |
Our Services
1. Factory Supply:
a. one of the biggest and professional special using truck manufacturers in china,
b. more than 300 kinds of special truck for your needing.
2. OEM Ability: produce according to your demand, material, size, color and logo are optional for you.
3. Good Quality:
a. has solid technology, advanced equipments; reliant quality, flexible modes of operation and strict quality control system,
b. passed the ISO9001-2008 and the 3C (China Compulsory Certification),
c. our brand is china famous brand with good reputation in the market.
4. Good Service: you can contact us by 24-hour hotline or whatsapp or email.
5. Fast Delivery: 15-20 working days after payment, safe and quick delivery.
1. Price term: FOB Shanghai, China or CIF or DAF, according to customers' requirements.
2. Payment: 30-50% deposit after order confirmation, balance should be paid before delivery. All by T/T.
3. Delivery time: 15-20 working days after full payment is received.
4. Standard Steering: Left-hand drive, if you need Right-hand drive, please inform us, will make special order for you.
We highly recommend this water tank truck. It's in excellent condition with good quality and competitive price. For further information, please feel free to contact me, we will offer our best service.
