Place of Origin:
Suizhou city, Hubei province
Brand Name:
CLW
Certification:
ISO
Model Number:
CLW6050GCL5

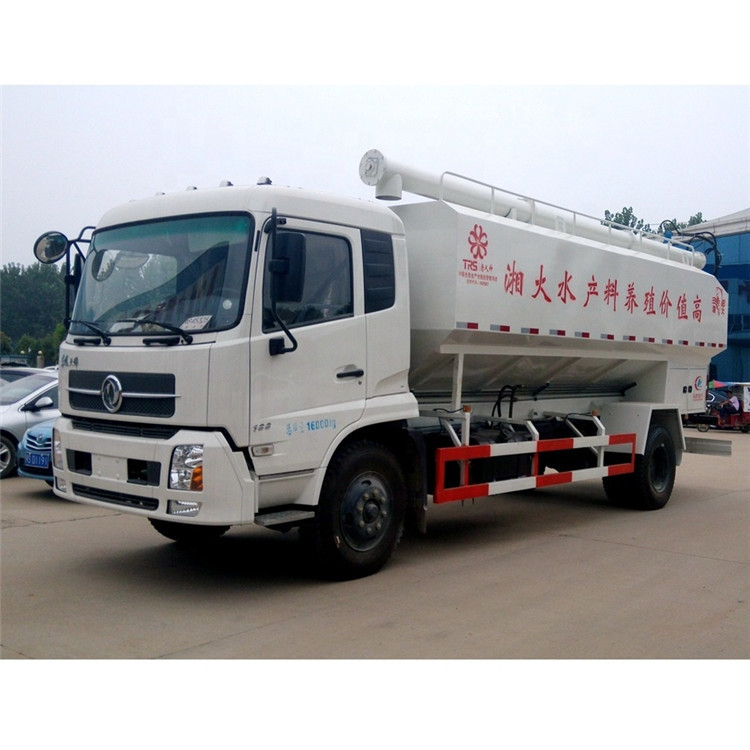

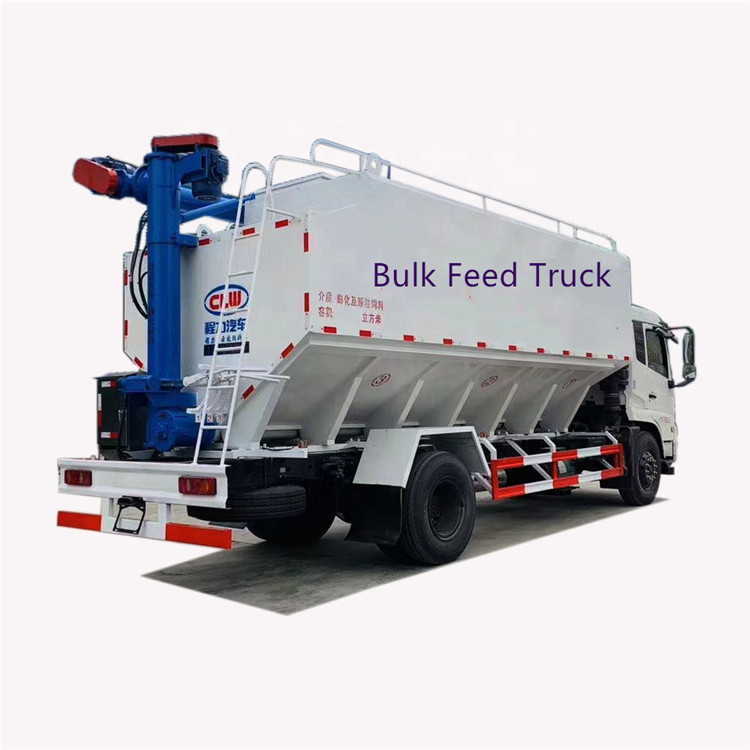

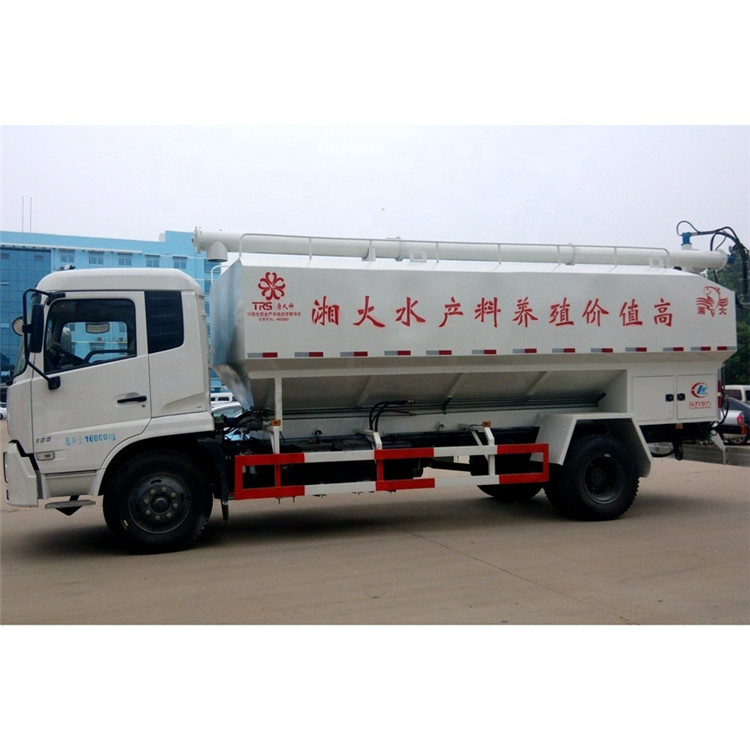

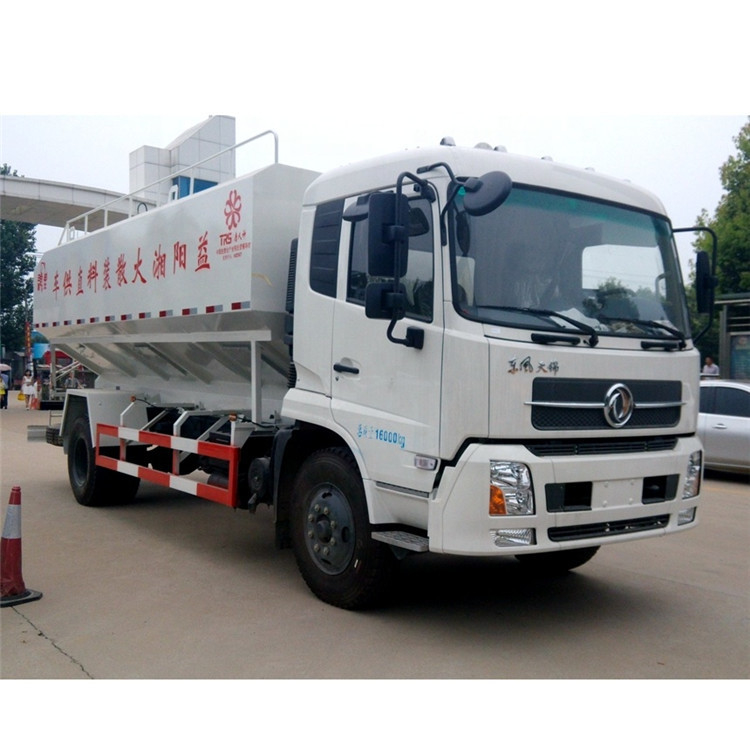

10 Tons Animal Food Transport Truck DONGFENG 10M3 Bulk Feed Discharge Truck
Desciption:
Bulk feed truck is also called animal feed truck, feed delivery truck, feed tanker vehicle, feed tank truck, feed transport truck, bulk feed transport vehicle, bulk feed delivery truck, bulk feed transporter truck, etc.
It is a special transport vehicle made of high-quality, high-strength steel plate welded forming tanks and equipped with electric or hydraulic auger unloading system on the basis of various types of trucks or second-class chassis.
1. Bulk feed transport vehicle is a special transport vehicle made of high-quality, high-strength steel plate welded forming tanks and equipped with electric or hydraulic auger unloading system on the basis of various types of trucks or second-class chassis.
2. Bulk feed truck consists of the chassis, the loaded feed tank, the discharge auger system and the electro-hydraulic operating system.
3. Bulk feed transporter tanks are welded with high-quality steel plates. Different bins can be loaded and unloaded at the same time. Electro-hydraulic auger unloading saves manpower and time, convenient loading and unloading, less residue and beautiful appearance.
Specification:
Technical Parameter | |
Product Name | Bulk feed transport truck |
Overall Dimension(mm) | 9000×2450×3800 |
Tank size(mm) | 6050×2400×1900 |
GVW(kg) | 16000 |
Curb weight(kg) | 8005 |
Rated loading capacity(kg) | 7800 |
Volume of Tank(m³) | 16.3 |
Transport medium | Bulk fodder |
Density of transport medium(kg/m³) | 500 |
Approaching/Departure Angle(°) | 20/12 |
Front/Rear suspension(mm) | 1430/2570 |
Front/Rear tread(mm) | 1880/1860 |
Fuel type | Diesel |
Chassis Technical Parameter | |
Chassis brand name | Dongfeng |
Traction system | 4×2 |
Transmission | 6 forward gear, 1 backward gear |
Tyre specifications | 10.00-20 |
Tire number | 6 (1 spare tire) |
Wheelbase(mm) | 5000 |
Axle number | 2 |
Axle loading(kg) | 6000/10000 |
Passengers in cab | 3 |
Maximum speed(km/h) | 90 |
Engine Parameter | |
Engine manufacturer | Dongfeng Commins |
Engine model | ISDe210 40 |
Displacement (ml) | 6700 |
Power (kw/hp) | 155/210 |
Number of cylinders | 6 |
Cylinder spread pattern | In-line |
Intake type | Supercharged and mid-cooling |
Rated rotation(rpm) | 2500 |
Emission standard | Euro 4 |
1. Factory Supply:
a. one of the biggest and professional special using truck manufacturers in china,
b. more than 300 kinds of special truck for your needing.
2. OEM Ability: produce according to your demand, material, size, color and logo are optional for you.
3. Good Quality:
a. has solid technology, advanced equipments; reliant quality, flexible modes of operation and strict quality control system,
b. passed the ISO9001-2008 and the 3C (China Compulsory Certification),
c. our brand is china famous brand with good reputation in the market.
4. Good Service: you can contact us by 24-hour hotline or whatsapp or email.
5. Fast Delivery: 15-20 working days after payment, safe and quick delivery.
1. Price term: FOB Shanghai, China or CIF or DAF, according to customers' requirements.
2. Payment: 30-50% deposit after order confirmation, balance should be paid before delivery. All by T/T.
3. Delivery time: 15-20 working days after full payment is received.
4. Standard Steering: Left-hand drive, if you need Right-hand drive, please inform us, will make special order for you.
We highly recommend this bulk feed truck. It's in excellent condition with good quality and competitive price. For further information, please feel free to contact me, we will offer our best service.
