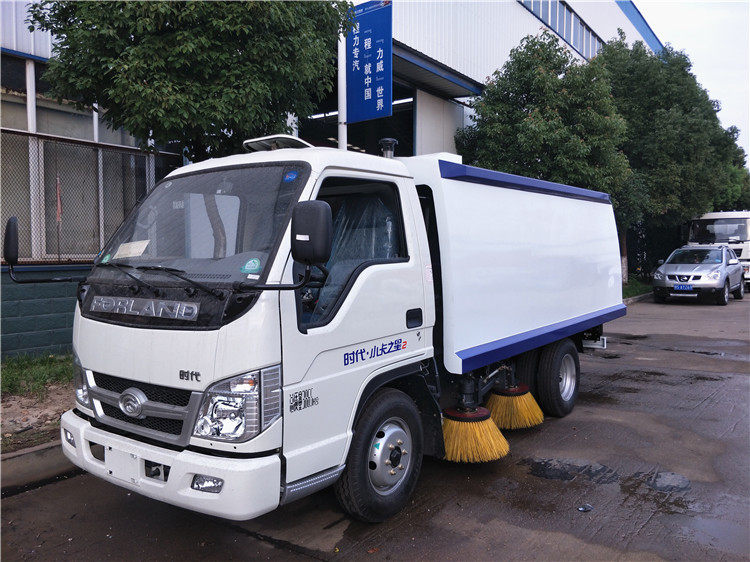

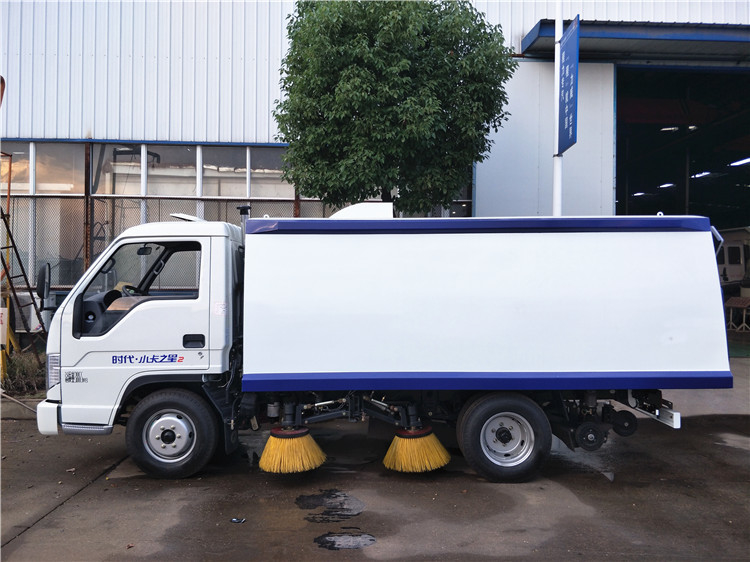

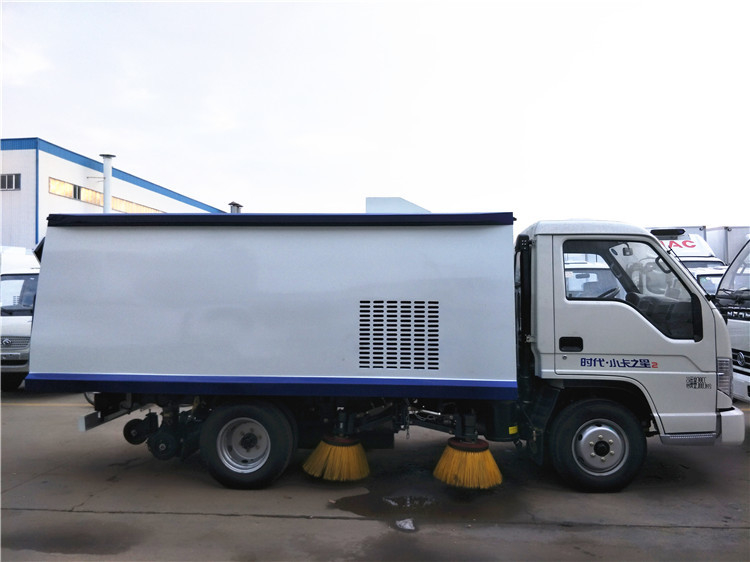

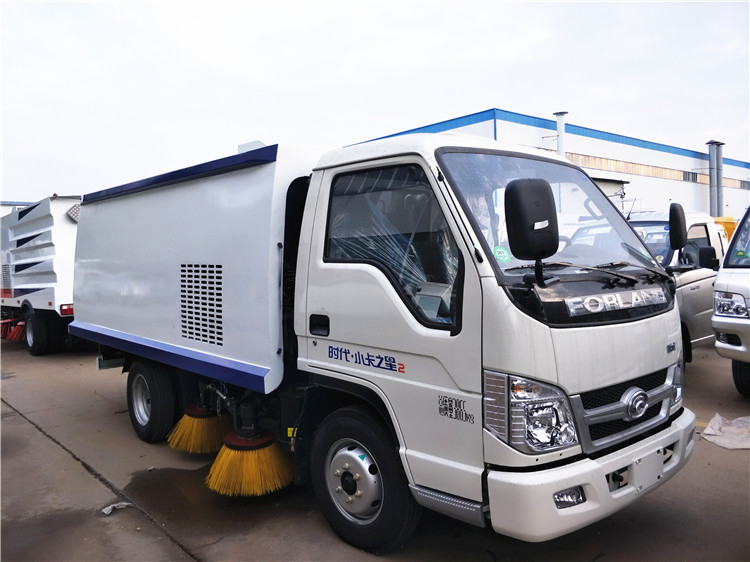

4*2 FOTON FORLAND mini Road Sweeper 2.5m3 Street Cleaning Trucks
Desciption:
Foton sweeper as a professional sanitation equipment, has many advantages, the following is a detailed summary of its advantages:
1. Efficient cleaning ability
Combination of sweep and suction: Foton sweeper usually uses a combination of sweep plate and suction cup, which can efficiently collect all kinds of garbage, including dust, leaves, paper scraps, etc., to ensure the cleaning effect.
Large cleaning area: Some models, such as Foton 2300 road swearers, the width of the cleaning operation can reach about 2.5m, the cleaning speed is 5-20km per hour, and the fuel consumption of the cleaning operation is as low as less than 2.5L per 10,000 square meters, which greatly improves the cleaning efficiency.
2. Flexibility and adaptability
Compact shape: Foton sweeper design compact, street more convenient, can easily cope with a variety of complex road conditions and small space.
Multi-functional configuration: snow shovel, lifting platform, anti-aircraft gun can be assembled according to customer needs, to achieve a multi-purpose vehicle, to meet the environmental sanitation needs in different scenarios.
3. Environmental protection and energy saving
Low fuel consumption: Foton road cleaner is equipped with efficient and energy-saving engines, such as full-wood 68 horsepower or 95 horsepower engine, and auxiliary engines such as Lane 31 horsepower or Yuchai 55/60 horsepower, which can effectively reduce fuel consumption and reduce operating costs.
Clean water dust removal: using clean water curtain to spray dust, save water resources, and effectively prevent secondary dust, protect the environment.
4. Durability and stability
High quality materials: The water tank and waste bin are made of stainless steel, which is more durable than traditional carbon steel, corrosion resistant and easy to clean.
Core parts: The use of imported or domestic well-known brands of core parts, such as Schneider control switch, Hepres solenoid valve set, Sanyo motor, etc., excellent performance, stable quality, low failure rate.
5. Ease of operation
Centralized electrical control: the control box is located in the cab, and the electrical control of each system is centralized, and the operation is convenient and efficient.
Automatic design: such as automatic clutch drive fan, bin lifting and unloading, automatic avoidance protection of sweep plate, reduce manual operation, improve work efficiency.
6. Safety performance
Safety configuration: Standard LED arrow light at the tail to improve driving safety; Equipped with a manual pump emergency system, it can also lift the trash can when the auxiliary engine is stopped, which is easy to maintain.
Protection design: non-stainless steel parts by electrophoretic anti-rust treatment, durable; The auxiliary frame bearing beam is welded with high-quality steel to ensure the safety of the vehicle.
In summary, Foton sweepers have a significant competitive advantage in the field of sanitation equipment due to its efficient cleaning capacity, flexible adaptability, environmental protection and energy saving, durable stability, easy operation and safety performance.
Specification:
Main parameter
|
|||
Product Name
|
small road sweeper truck, mini street cleaning truck
|
||
Overall Dimension(mm)
|
5100X1750X2250
|
Max speed(km/h)
|
90
|
Gross weight(kg)
|
2840
|
Curb weight(kg)
|
2350
|
Driving type
|
4x2
|
Transmission type
|
munual
|
Condition
|
new
|
Sweeping width
|
≤2.2m
|
Dust Tank Volume
|
2 m3
|
Water Tank Volume
|
1 m3
|
Chassis parameter
|
|||
Chassis model
|
SC1031GDD52
|
Axles quantity
|
2
|
Wheelbase(mm)
|
2700
|
Wheel loading
|
1420/1420
|
Overhang(mm)
|
635/1315
|
Brake system
|
air brake
|
Tyre quantity
|
4
|
Tyre size
|
165R14LT
|
Engine model
|
ISB80 50
|
Engine Standard
|
euorⅢ
|
Displacement(L)
|
1.2
|
Rated power(hp)
|
80
|
1. Factory Supply:
a. one of the biggest and professional special using truck manufacturers in china,
b. more than 300 kinds of special truck for your needing.
2. OEM Ability: produce according to your demand, material, size, color and logo are optional for you.
3. Good Quality:
a. has solid technology, advanced equipments; reliant quality, flexible modes of operation and strict quality control system,
b. passed the ISO9001-2008 and the 3C (China Compulsory Certification),
c. our brand is china famous brand with good reputation in the market.
4. Good Service: you can contact us by 24-hour hotline or whatsapp or email.
5. Fast Delivery: 15-20 working days after payment, safe and quick delivery.
1. Price term: FOB Shanghai, China or CIF or DAF, according to customers' requirements.
2. Payment: 30-50% deposit after order confirmation, balance should be paid before delivery. All by T/T.
3. Delivery time: 15-20 working days after full payment is received.
4. Standard Steering: Left-hand drive, if you need Right-hand drive, please inform us, will make special order for you.
We highly recommend this road sweeper truck. It's in excellent condition with good quality and competitive price. For further information, please feel free to contact me, we will offer our best service.
