Place of Origin:
Suizhou city, Hubei province
Brand Name:
CLW
Certification:
ISO, CCC
Model Number:
CLW6500XJH6YS

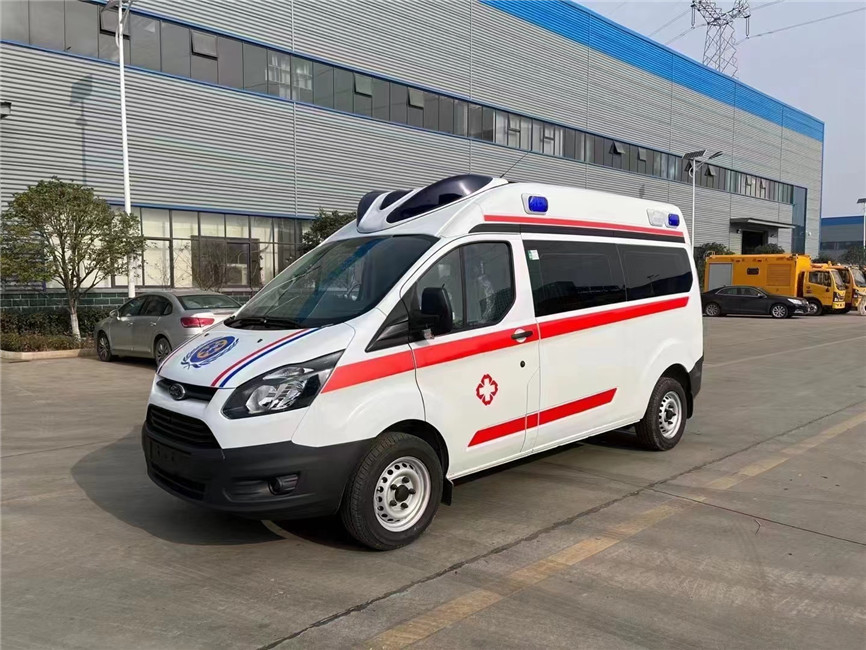

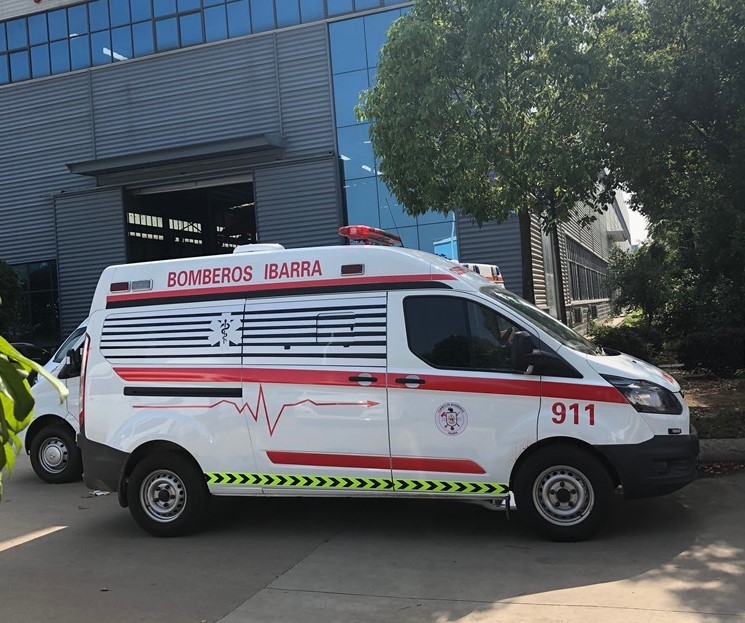

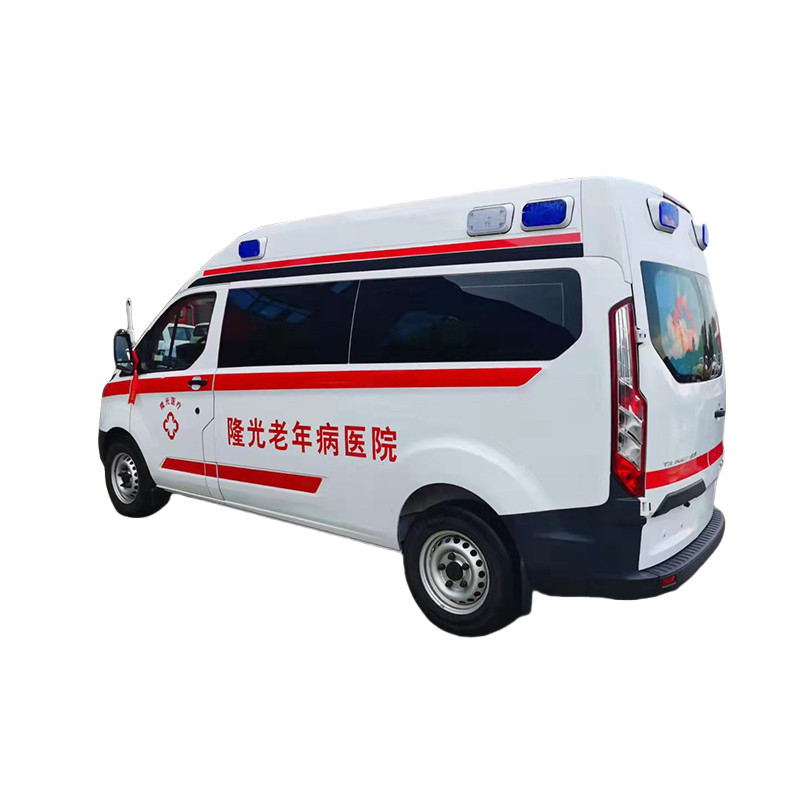

6 Seats Diesel Medium Duty Ambulance Emergency Monitoring Ford V362 Transit Van Ambulance
Desciption:
Ford Transfer ambulance emergency shutdown system
Advantages:
Ford Transfer ambulances are equipped with an emergency stop system that can quickly slow down and stop in an emergency, ensuring the safety of patients, first responders and drivers. The system plays a vital role in high-pressure, dangerous driving situations, especially at high speeds or in the case of emergency avoidance, which can effectively reduce the risk of accidents.
1. Emergency stop function with quick response
Function: The emergency parking system monitors the speed, road conditions and the driver's operation in real time through intelligent sensors and control systems, and can automatically trigger the system when an emergency is detected, rapidly reduce the vehicle speed and stop safely. Whether there is a sudden obstacle ahead or a need to quickly avoid other vehicles or pedestrians, the system can respond quickly.
Advantages: For Ford transfer ambulances, the driver may be under time pressure when performing emergency rescue tasks and the operational response in an emergency may be limited. The emergency stop system can compensate for the lack of driver response through automated response, ensuring that the vehicle comes to a quick and safe stop to avoid further hazards.
2. Safety guarantee at high speed
Function: When the vehicle is driving at high speed, if there is an accident or emergency (such as the vehicle in front of the brakes, sudden obstacles or other traffic accidents), the emergency parking system can reduce the speed to the safe range in a very short time.
Advantages: On highways or urban expressways, emergency parking systems can greatly reduce reaction time, help drivers avoid high-speed rear-end collisions or collisions with other obstacles, especially during emergency transport or rescue, to ensure the safety of patients and ambulance personnel.
3. Auxiliary role in emergency avoidance
Function: The emergency stop system can not only implement automatic parking when the vehicle is completely out of control, but also assist the driver to take quick action during the avoidance process. When confronted with emergency avoidance scenarios, such as avoiding pedestrians or other vehicles, the system can be combined with steering and braking systems to make auxiliary adjustments to help the driver react faster.
Advantages: In extreme risk-off situations (such as avoiding pedestrians suddenly crossing the road or other emergencies), the emergency parking system can quickly intervene, assist the driver to avoid the danger, and stop the vehicle as soon as possible to ensure the safety of all parties.
4. The system and brake mechanism work together
Functions: The emergency stop system is highly integrated with the vehicle's braking system and can be linked to safety systems such as ABS (anti-lock brake system) and ESC (Body Stability Control) to ensure optimal stability during braking.
Advantages: In the process of emergency stopping, the brake system will not only slow down, but also maintain the stability of the vehicle through intelligent adjustment to avoid the risk of vehicle loss of control or rollover, especially in the wet, snow and ice road or narrow roads, the role of the system is particularly important.
5. Provide operation convenience for the driver
Function: The emergency parking system does not require the driver to make complex operations in the event of an emergency. The system will automatically judge the situation and quickly execute the stopping action. For ambulance drivers who need to respond quickly to emergencies, reducing operational complexity is essential.
Advantages: The automated design of the system can help drivers save valuable reaction time and improve reaction speed in high-pressure and dangerous situations. Whether it is emergency braking or emergency avoidance, the driver can focus on ensuring patient safety and quick assessment of the surrounding environment without having to think too much about the braking operation.
6. Improve the adaptability of vehicles in emergency environments
Function: The emergency parking system can work effectively under various road conditions and weather conditions. Whether it is rain, haze, snow road or other adverse weather conditions, the system can guarantee the reliability of emergency stopping operations.
Advantage: In complex weather and road conditions, the braking distance of the vehicle may be affected. The intelligent nature of the emergency parking system can adapt to different environments, ensuring that no matter what kind of harsh conditions, the vehicle can be quickly and safely stopped, preventing traffic accidents caused by road slippage or unclear vision.
In SUMMARY:
Through intelligent control mechanisms and high integration with the brake system, the Ford Transfer ambulance's emergency stop system can quickly slow down and stop at high speeds, emergency avoidance or complex situations, ensuring the safety of patients, emergency personnel and drivers. The automated design of the system greatly reduces the operating burden of the driver, provides a higher safety guarantee in emergency situations, and is especially important for high-pressure and urgent transfer tasks, helping the ambulance to make the safest response in the shortest time.
Specification:
Truck name | Ambulance truck |
Gross weight (kg) | 3495 |
Curb weight (kg) | 2540 |
Axle loading(kg) | 1560/1935 |
Overall dimension(mm) | 5380*2032*2460 |
Medical cabin dimension(mm) | 2600*1730*1750 |
Approach/departure angle(°) | 20/25 |
Max speed (km/h) | 156 |
Front/Rear overhang (mm) | 1014/1027 |
Color | According to customer’s request |
Chassis Parameters | |
Chassis name | Ford,JMC,jinbei,other famous brand |
Number of axles | 2 |
Wheel base(mm) | 3300 |
Cabin seats | 6passengers |
Gear box | 6speed, 5forward 1rear |
Number of wheels | 2 |
Tire specification | 215/75R16LT |
Front Track (mm) | 1736 |
Rear Track (mm) | 1720 |
Engine Parameters | |
Engine model | DURATORQ4D2O5L |
Engine type | 2.0T, four-cylinder, supercharged intercooled, high pressure common rail |
Drive type | 4*2, Left hand drive |
Emission standard | Euro 5 |
Displacement (ml) | 1998ml/121kw |
Power horse(hp) | 165 |
Fuel Type | Diesel |
Configurations Instruction | |
Warning system | Warning light,alarm and flash lights |
Power system | 1000W positive wave inverter system Integrated circuit integrated control protection system Ac circuit protection system Integrated switch control panel for medical module GB 220V power port,Disinfecting lamp,Ventilator,Intercom |
Oxygen pathway and oxygen | Two 10-liter medical oxygen bottles with shock absorbing clamp,concealed oxygen piping system,two oxygen ports,one humidifier bottle |

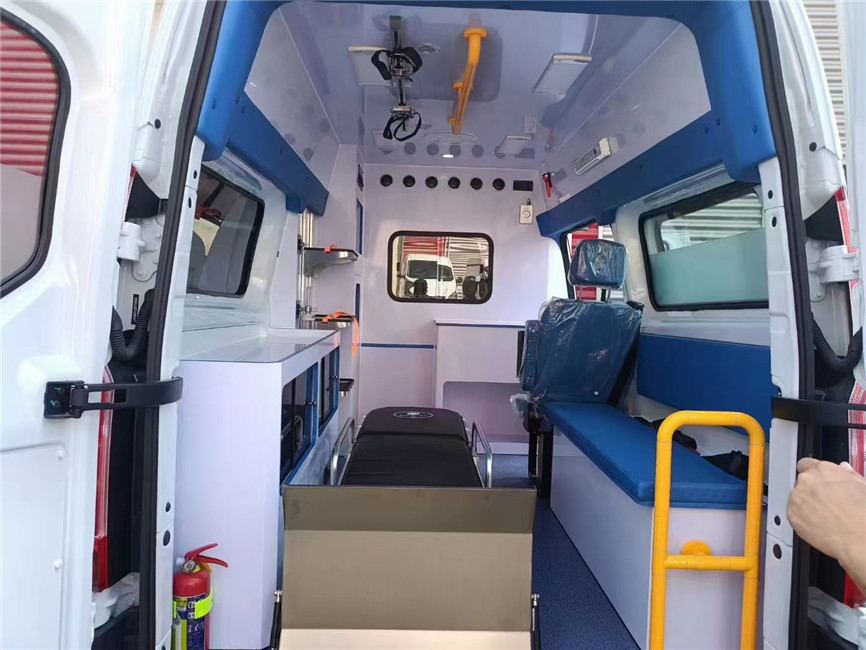

Medical cabin | Polymer hard top;polymer material partition wall;long hanging cabinet and medical equipment and storage cabinet;Vertical oxygen tank cabinet;full set of blue anti-collision soft cover walls |
Seats | 1PCS Reverse soft roll seat,1PCS Independent seat with backrest,1PCS long soft roll seat for 2 person |
Emergency auxiliary | Stretcher pad and guide plate,1pcs slideable infusion rack,fire extinguisher |
Appearances | Black solar membrane on left side,translucent frosting film on right and rear side |
Application: Widely used for for patients transporting or monitoring.
1. Factory Supply:
a. one of the biggest and professional special using truck manufacturers in china,
b. more than 300 kinds of special truck for your needing.
2. OEM Ability: produce according to your demand, material, size, color and logo are optional for you.
3. Good Quality:
a. has solid technology, advanced equipments; reliant quality, flexible modes of operation and strict quality control system,
b. passed the ISO9001-2008 and the 3C (China Compulsory Certification),
c. our brand is china famous brand with good reputation in the market.
4. Good Service: you can contact us by 24-hour hotline or whatsapp or email.
5. Fast Delivery: 15-20 working days after payment, safe and quick delivery.
1. Price term: FOB Shanghai, China or CIF or DAF, according to customers' requirements.
2. Payment: 30-50% deposit after order confirmation, balance should be paid before delivery. All by T/T.
3. Delivery time: 15-20 working days after full payment is received.
4. Standard Steering: Left-hand drive, if you need Right-hand drive, please inform us, will make special order for you.
We highly recommend this ambulance car. It's in excellent condition with good quality and competitive price. For further information, please feel free to contact me, we will offer our best service.
