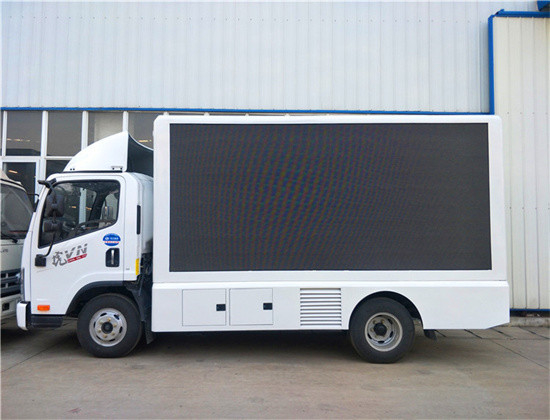

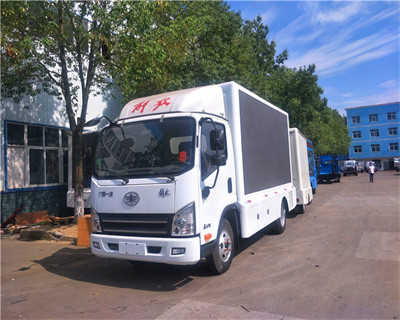

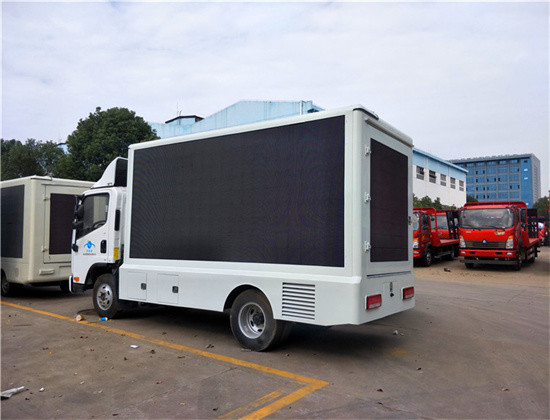

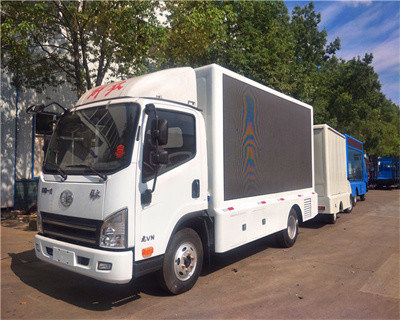

FAW Mobile LED Advertising Truck Outdoor Digital LED Billboard Truck
Product advantage:
1. We provide the upper box including the basic equipment without chassis as well as the LED screen and basic equipment so that so you could fix and install them on your chassis or your box van.
2. Our LED display vehicles can be customizable. We provide LED display trucks, LED display trailer, LED display semi-trailer, etc.
3. The LED display trucks could be of one full color side screen, two full color side screens, three full color side and rear screens. Any combinations are available between full color screen, monochrome color screen (usually rear side), roller screen, and hydro cylinder lifting (usually for the full color screen in left side or right side).
4. The pixel's pitch for the LED screen could be P16, P10, P8, P6, P5, P4 etc.
5. The area of the left or right screen mainly ranges from 3.22 m3 to 12.2 m3.
The basic equipment includes silent generator, aluminum checkered plate wall, waterproof leather or wooden floors, safe and intelligent switch power distribution system, integrated electromechanical control, lighting, circulating ventilation fans, shockproof computers, and gigabit media control system, stereos, one amplifier, four waterproof column loud speakers, and other tiny accessory facilities within the body.
| Classification |
Item |
Unit |
Parameter |
| Vehicle |
Vehicle model |
|
FAW led advertising truck CLW5040XXCCQ5
|
| Manufacturer |
|
ChengLi Special Automobile Co.,LTD
|
| Overall dimensions |
mm |
5995*2030*2995 |
| Curb weight |
kg |
4300 |
| Traction system |
|
4×2 |
| Max speed |
km/h |
110 |
| Chassis |
Chassis model |
|
CA1047P40K50L1BE5A84 |
| Manufacturer |
|
JiangNan Special Automobile Co.,Ltd |
| Number of axles |
|
2 |
| Wheel base |
mm |
3300 |
| Tire specification |
|
6.50-16 |
| Number of tires |
|
6+1 |
| F/R track base |
mm |
1510/1475 |
| Engine |
Engine model |
|
4B2-95C50 |
| Manufacturer |
|
Anhui Quanchai Engine Co.,Ltd |
| Fuel type |
|
diesel |
| Power |
kw |
70 |
| Engine horse power |
hp |
95 |
| Displacement |
ml |
2545 |
| Emission standard |
|
Euro IV |
| Driver’s cab |
Brand |
|
FAW |
| Model |
|
Flat head, single row |
| Allowable seats |
|
3 |
| Steering |
|
Left hand drive |
| Transmission |
|
5-speed with over drive |
| Operation control system |
|
Electrically hydraulic control |
| Air-conditioning |
|
As your option |
| Standard equipment |
1> One side waterproof P8 full color led screen
2> The other side advertising light box with subtitle
3> The rear side monochrome screen
4> 5cm composite steel box, wooden floor;
5> Inside and outside the electric distribution box;
6> Loop ventilation cooling system;
7> Ouma silent diesel generator;
8> One industrial computer with control system, 4 waterproof speakers, 1 amplifier, 1 console.
|
| FOB Shanghai |
|
| Options |
(1). P6 led screen for choose.
(2). Two side or All round (3-side) LED full color screen.
(3) Lifting system 1.5m height for side led screen.
(4).4 hydraulic legs
(5) 9.6㎡ hydraulic stage
(6) External stitching stage
|
Application: Widely used for outdoor commercial advertising, stage shows, live broadcast, sports stadium advertising, etc.
Our Services
1. Factory Supply:
a. one of the biggest and professional special using truck manufacturers in china,
b. more than 300 kinds of special truck for your needing.
2. OEM Ability: produce according to your demand, material, size, color and logo are optional for you.
3. Good Quality:
a. has solid technology, advanced equipments; reliant quality, flexible modes of operation and strict quality control system,
b. passed the ISO9001-2008 and the 3C (China Compulsory Certification),
c. our brand is china famous brand with good reputation in the market.
4. Good Service: you can contact us by 24-hour hotline or whatsapp or email.
5. Fast Delivery: 15-20 working days after payment, safe and quick delivery.
FAQ
1. Price term: FOB Shanghai, China or CIF or DAF, according to customers' requirements.
2. Payment: 30-50% deposit after order confirmation, balance should be paid before delivery. All by T/T.
3. Delivery time: 15-20 working days after full payment is received.
4. Standard Steering: Left-hand drive, if you need Right-hand drive, please inform us, will make special order for you.
We highly recommend this LED billboard box. It's in excellent condition with good quality and competitive price. For further information, please feel free to contact me, we will offer our best service.
