Place of Origin:
Suizhou city, Hubei province
Brand Name:
howo
Certification:
ISO, CCC
Model Number:
CLW5040XLC5

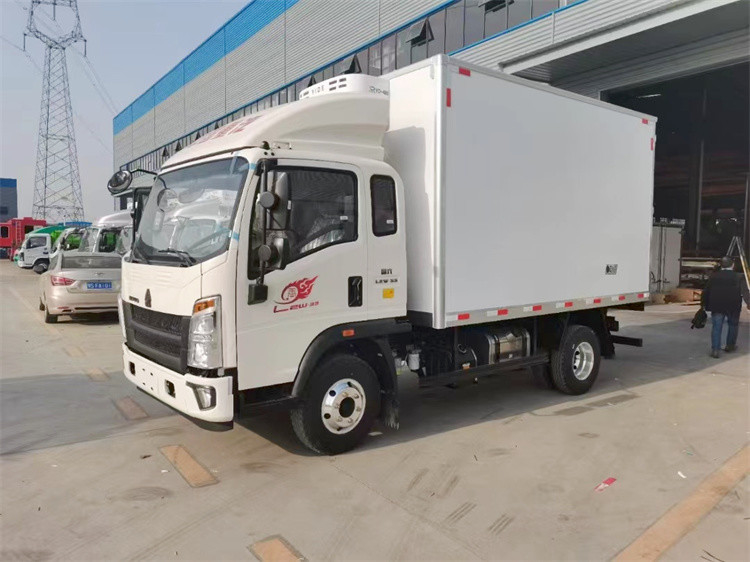

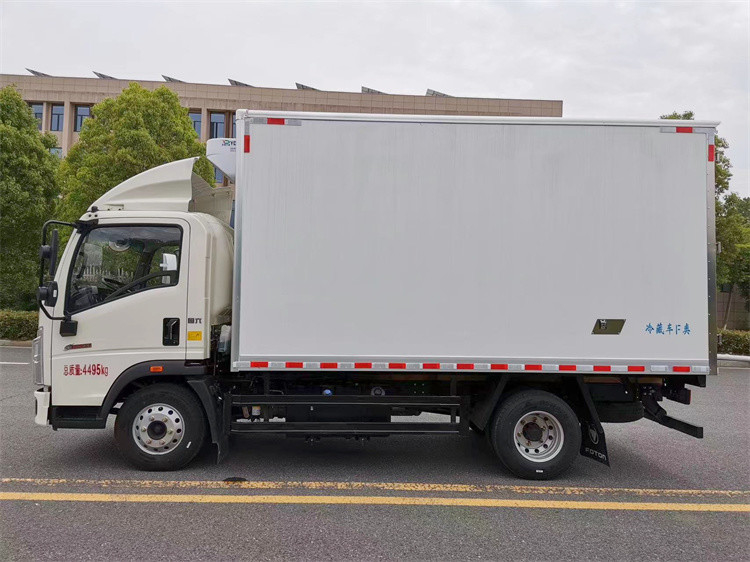

5 Tons SINO HOWO cold van refrigerated truck ,frozen food transport vehicle
Desciption:

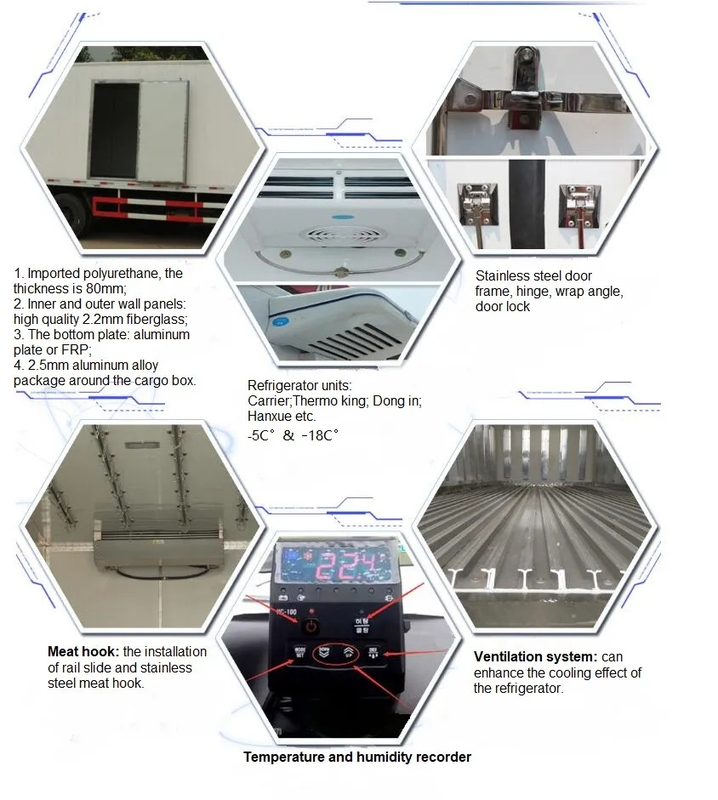

This truck box is produced by hot-pressing process, outer cover material is FRP, inner material is 80mm-100mm PU insoltion plate, stainless steel door locks, floor optional T-type aluminum guide, Checkered aluminum and Stainless steel, high thermal insulation performance. It is mainly used for refrigerated transporting of food, medicine, seafood, ice cream, cold drink, meat, fish, vegetables and other goods. The temperature range from -20 to +10 degree.
"Chengli Special Automobile Co.,ltd" ---the biggest special truck manufactuer in China!
The main Brand Refrigerator truck: Dongfeng, SINO HOWO, HOWO, Beiben, Faw, Foton, Forland, Hyundai,Hino, Iveco, JAC, JMC, Shacman, Honyan,
Genlyon Driving Type: 4*2, 6*4, 8*4, 4*4 , 6*6 , 4wd , off-road , 10 wheel , 12 wheeler , 18 wheel Refrigerator trucks temperature : -18℃ ,- 5℃,-10℃. -20℃
Steering Wheel: Left Hand Drive and Right Hand Drive
Specification:
Item | unit | parameter | |
Vehicle model | CLW5040XLC5 howo Refrigerated Truck | ||
Chassis model | EQ1060TJ20D3 | ||
Overall dimensions | mm | 8000x2500x3600 | |
Body internal dimensions | 4500x1800x1900 | ||
Axle load | kg | 1800/2695 | |
Loading capacity | 1215 | ||
Gross weight | 4495 | ||
Curb weight | 3150 | ||
Wheel base | mm | 3300 | |
F/R track base | 1503/1494 | ||
Approach/departure angle | ° | 20/14 | |
Traction system | 4*2 | ||
Exhaust/kw | ml/hp | 3856/82 | |
Max speed | km/h | 100 | |
Fuel type | Diesel | Engine | CY4100Q |
Number of axles | 2 | Pieces of spring | 6/6+5 |
Number of tires | 6 | Tire specification | 7.00-16 8PR |
Engine manufacturer | Dongfeng Chaoyang Diesel Engine Co., LTD | ||
Configuration |
Refrigerator unit is HanXue, made in China, working temperature is minus 15 Celsius degree. The material of the van surface is FRP, 8 cm thick PU inside. |
||
Introduction | The van with light weight, high strength, seamless, corrosion-resistant benefits; The van around the aluminum alloy decoration, door lock stainless steel standard parts. | ||
Production cycle | 15 working days after deposit is received | ||
Warranty | 12 months, from the date of supply |
Our Services
1. Factory Supply:
a. one of the biggest and professional special using truck manufacturers in china,
b. more than 300 kinds of special truck for your needing.
2. OEM Ability: produce according to your demand, material, size, color and logo are optional for you.
3. Good Quality:
a. has solid technology, advanced equipments; reliant quality, flexible modes of operation and strict quality control system,
b. passed the ISO9001-2008 and the 3C (China Compulsory Certification),
c. our brand is china famous brand with good reputation in the market.
4. Good Service: you can contact us by 24-hour hotline or whatsapp or email.
5. Fast Delivery: 15-20 working days after payment, safe and quick delivery.
1. Price term: FOB Shanghai, China or CIF or DAF, according to customers' requirements.
2. Payment: 30-50% deposit after order confirmation, balance should be paid before delivery. All by T/T.
3. Delivery time: 15-20 working days after full payment is received.
4. Standard Steering: Left-hand drive, if you need Right-hand drive, please inform us, will make special order for you.
We highly recommend this refrigerator truck. It's in excellent condition with good quality and competitive price. For further information, please feel free to contact me, we will offer our best service.
