Place of Origin:
Suizhou city, Hubei province
Brand Name:
CLW
Certification:
ISO, CCC, BV Certificate
Model Number:
CL5070ZYS6GH

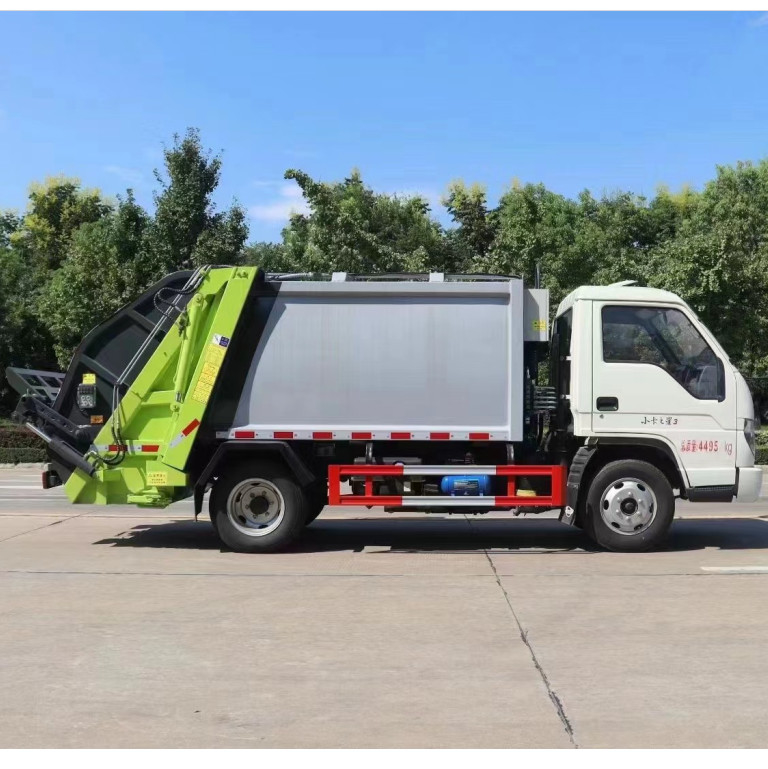

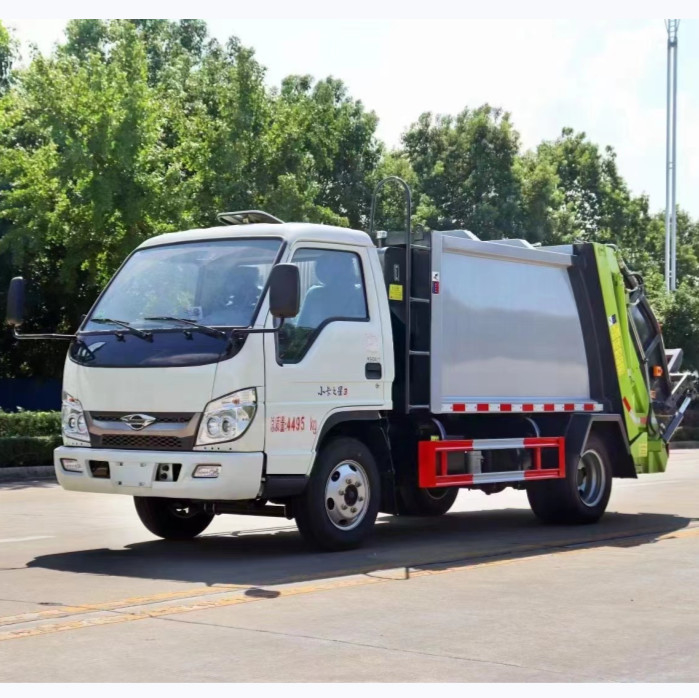

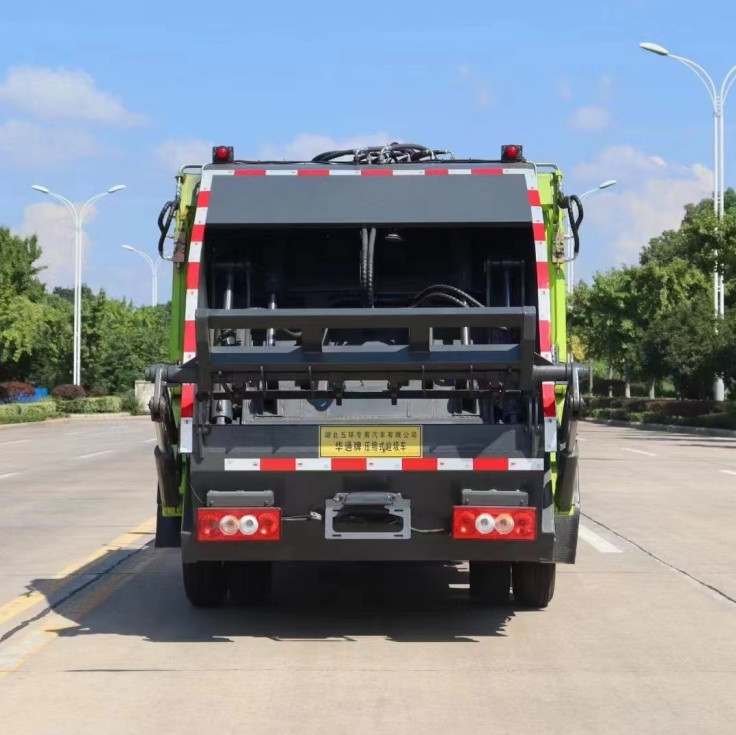

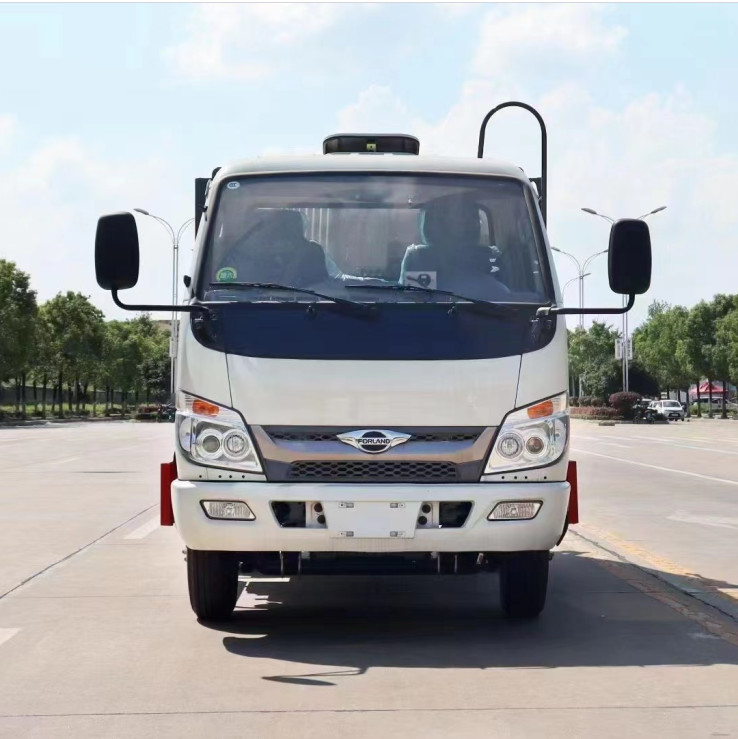

Foton Euro 4 rear loader garbage truck Diesel garbage truck with compactor
Desciption:
Compressed garbage truck is mainly used for the collection and transport of a one-time non-recyclable municipal solid waste, commercial waste, and also used for non-toxic, non-corrosive and non-radioactive industrial garbage.It is produced with Germany technology. It's with the features of high system pressure, large compression force, high volume rate and large loading capacity, which could make loading capacity increase 5-7 times.With the function of high automatic degrees, quick loading speed, convenient, safe and reliable operation, and preventing re-pollution.
Specification:
Item
|
Parameter
|
Vehicle name
|
garbage truck with compactor
|
Vehicle model
|
CL5070ZYS6GH
|
Chassis model
|
EQ1060TJ20D3
|
Curb weight
|
3365 kg
|
Overall dimensions
|
5995*2000*2450mm
|
Wheel base
|
3300 mm
|
Fuel type
|
Diesel
|
Engine model
|
CY4100Q
|
Engine horse power
|
115 hp
|
Displacement
|
3856 ml
|
Emission standard
|
Euro 4
|
Tire specification
|
7.00R16
|
Number of tires
|
6+1 SPARE
|
Engine model
|
Q23-136E60
|
Tire
|
7.50R16 or others
|
Max speed
|
105 km/h
|

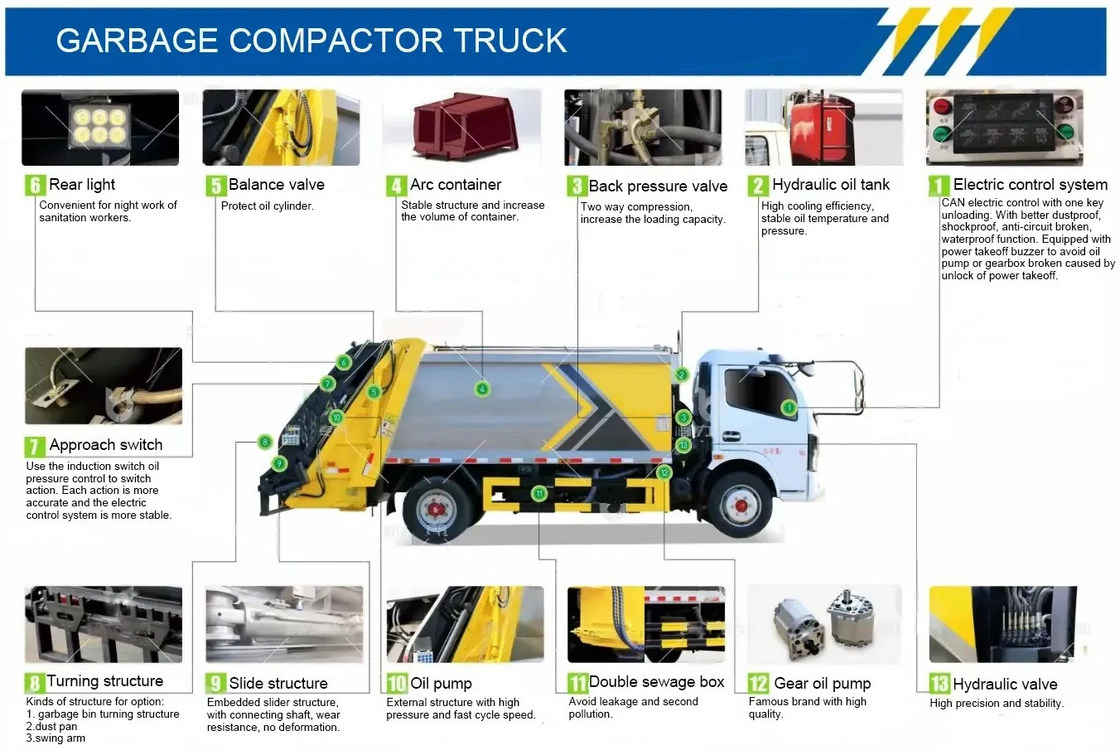

Equipment
|
1> Equipped with dustbin, hydraulic system and operating system;
2> Equipped with two advanced double acting hydraulic cylinder; 3> One vehicle can cooperate with several dustbins to improve the ability of cycle operation.cycling time<60s. |
Production cycle
|
15-20 working days
|
Warranty
|
12 month, from the date of supply
|
Price
|
EXW/FOB/CFR/CIF/DAF/DDU
|
Payment terms
|
30-50% as the deposit, the rest payment must be paid when the production finished in our factory before delivery. All by T/T.
|
Our Services
1. Factory Supply:
a. one of the biggest and professional special using truck manufacturers in china,
b. more than 300 kinds of special truck for your needing.
2. OEM Ability: produce according to your demand, material, size, color and logo are optional for you.
3. Good Quality:
a. has solid technology, advanced equipments; reliant quality, flexible modes of operation and strict quality control system,
b. passed the ISO9001-2008 and the 3C (China Compulsory Certification),
c. our brand is china famous brand with good reputation in the market.
4. Good Service: you can contact us by 24-hour hotline or whatsapp or email.
5. Fast Delivery: 15-20 working days after payment, safe and quick delivery.
1. Price term: FOB Shanghai, China or CIF or DAF, according to customers' requirements.
2. Payment: 30-50% deposit after order confirmation, balance should be paid before delivery. All by T/T.
3. Delivery time: 15-20 working days after full payment is received.
4. Standard Steering: Left-hand drive, if you need Right-hand drive, please inform us, will make special order for you.
We highly recommend this compactor garbage truck. It's in excellent condition with good quality and competitive price. For further information, please feel free to contact me, we will offer our best service.
