Place of Origin:
Suizhou city, Hubei province
Brand Name:
dongfeng
Certification:
ISO, CCC
Model Number:
JX1041TSG25

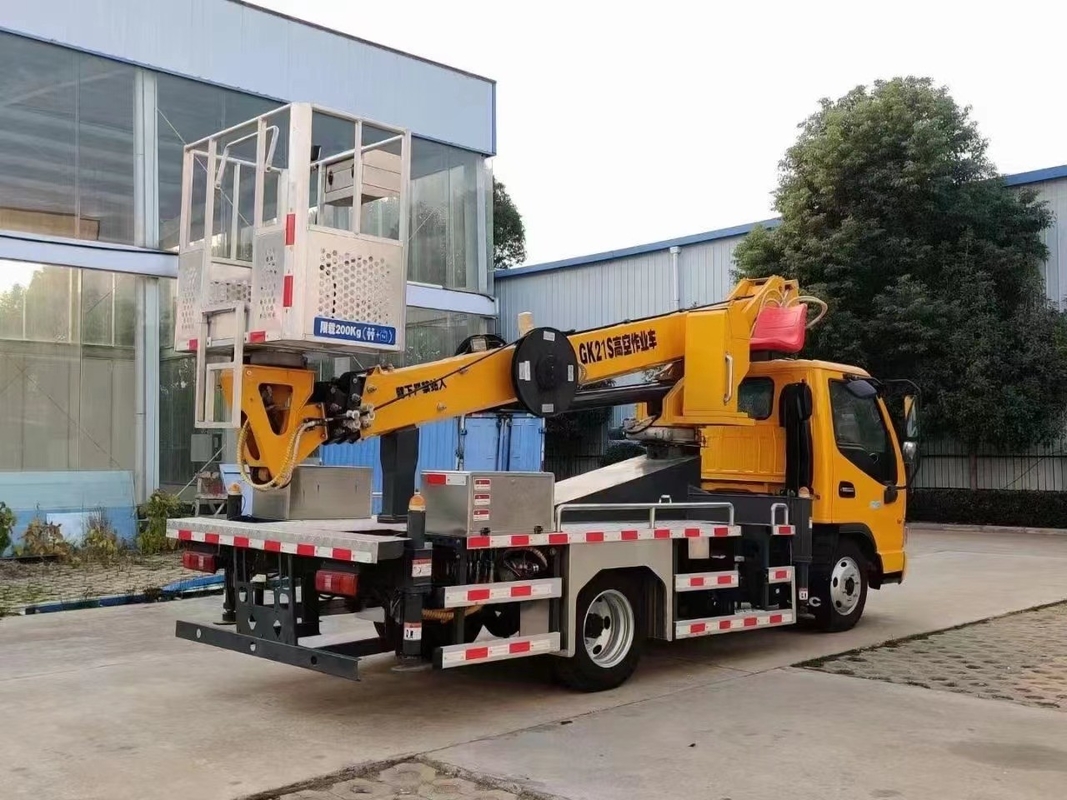

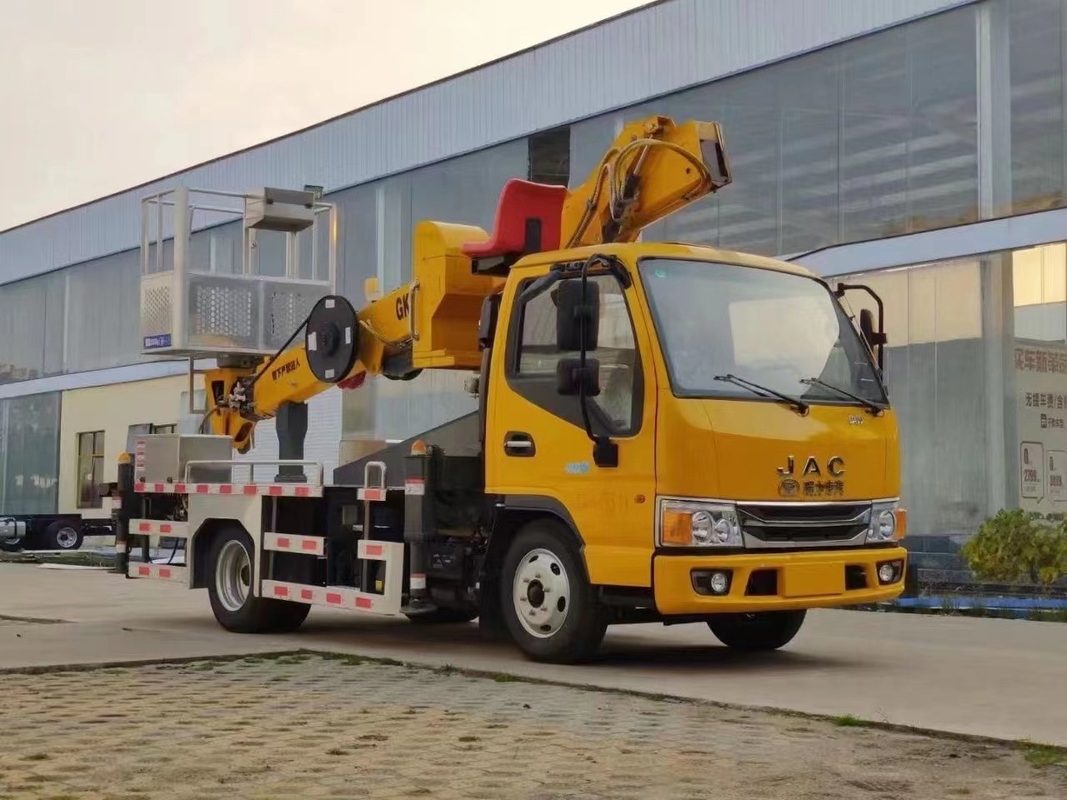

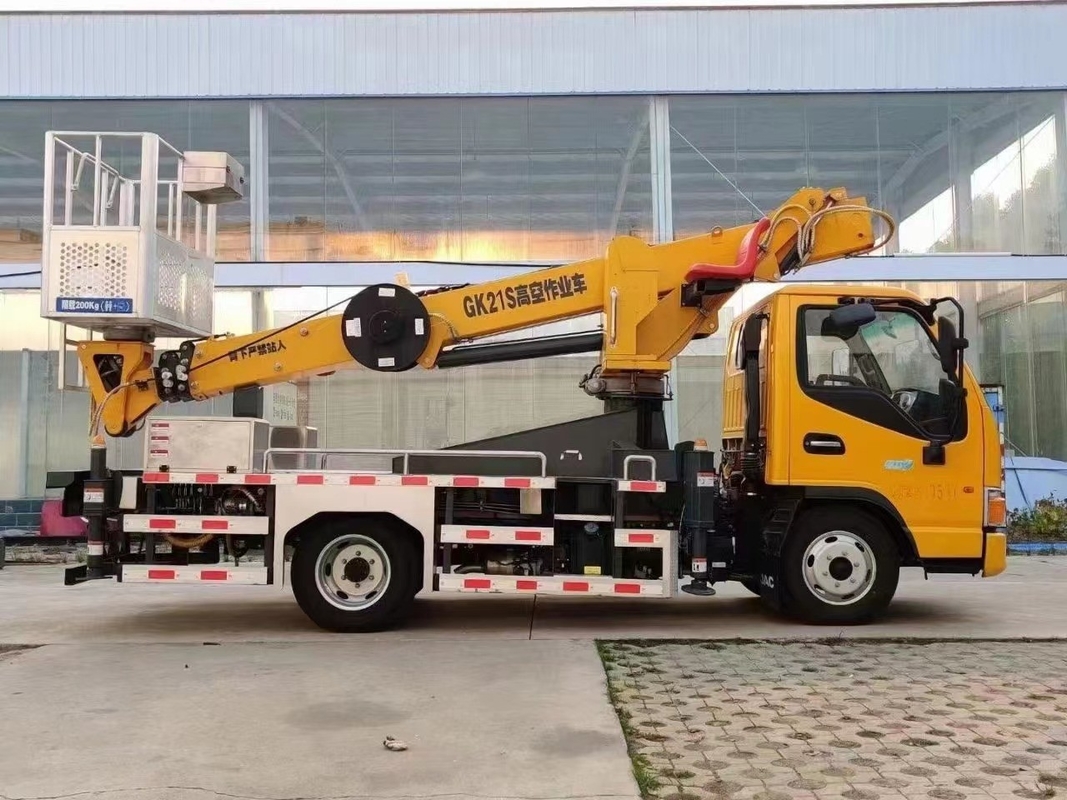

21m bucket truck aerial working platform 200kg elescopic high altitude working truck
Desciption:
1.Chengli factory direct sale aerial work platform trucks
2. ISO9001, CCC, OEM certificate.
3. Many chassis can be choose: FOTON, HOWO, FAW, DFAC, JMC, JAC, etc.
4. Function, quantity, color, volume, style, chassis, etc. can be customized according to user requirements.
4. Product Price should be configured with different vehicles and different coat materials, we recommend that you contact us.
Specification:
Item | unit | parameter | |
Chassis brand | dongfeng aerial work vehicle | ||
Engine Capacity | < 4L | ||
aerial bucket truck dimensions | mm | 5998*2000*2950 | |
Platform Size | 650*1800*1100 | ||
Axle load | kg | 1800/2695 | |
Loading capacity | 1215 | ||
truck mounted aerial lift weight | 4495 | ||
Curb weight | 4470 | ||
Wheel base | mm | 3360 | |
F/R track base | 1503/1494 | ||
Displacement | ml | 5900 | |
Traction system | 4*2 | ||
Exhaust/kw | ml/hp | 3856/116 | |
Max speed | km/h | 90 | |
Fuel type | Diesel | Engine | CY4100Q |
Number of axles | 2 | Pieces of spring | 6/6+5 |
Number of tires | 6 | Tire specification | 7.00R15 |
Engine manufacturer | dongfeng Chaoyang Diesel Engine Co., LTD | ||
landing leg |
H type 4pcs |
||
Operation main technical parameter | Height of platform above ground >10.8m Platform maximum operating range >6m Platform max operating range height>2.5m Rated load of working bucket 200kg |
||
Production cycle | 15 working days after deposit is received | ||
Warranty | 12 months, from the date of supply |
Our Services
1. Factory Supply:
a. one of the biggest and professional special using truck manufacturers in china,
b. more than 300 kinds of special truck for your needing.
2. OEM Ability: produce according to your demand, material, size, color and logo are optional for you.
3. Good Quality:
a. has solid technology, advanced equipments; reliant quality, flexible modes of operation and strict quality control system,
b. passed the ISO9001-2008 and the 3C (China Compulsory Certification),
c. our brand is china famous brand with good reputation in the market.
4. Good Service: you can contact us by 24-hour hotline or whatsapp or email.
5. Fast Delivery: 15-20 working days after payment, safe and quick delivery.
1. Price term: FOB Shanghai, China or CIF or DAF, according to customers' requirements.
2. Payment: 30-50% deposit after order confirmation, balance should be paid before delivery. All by T/T.
3. Delivery time: 15-20 working days after full payment is received.
4. Standard Steering: Left-hand drive, if you need Right-hand drive, please inform us, will make special order for you.
We highly recommend this refrigerator truck. It's in excellent condition with good quality and competitive price. For further information, please feel free to contact me, we will offer our best service.
