Place of Origin:
Suizhou city, Hubei province
Brand Name:
isuzu
Certification:
CCC, ISO 9001
Model Number:
JX4D306H

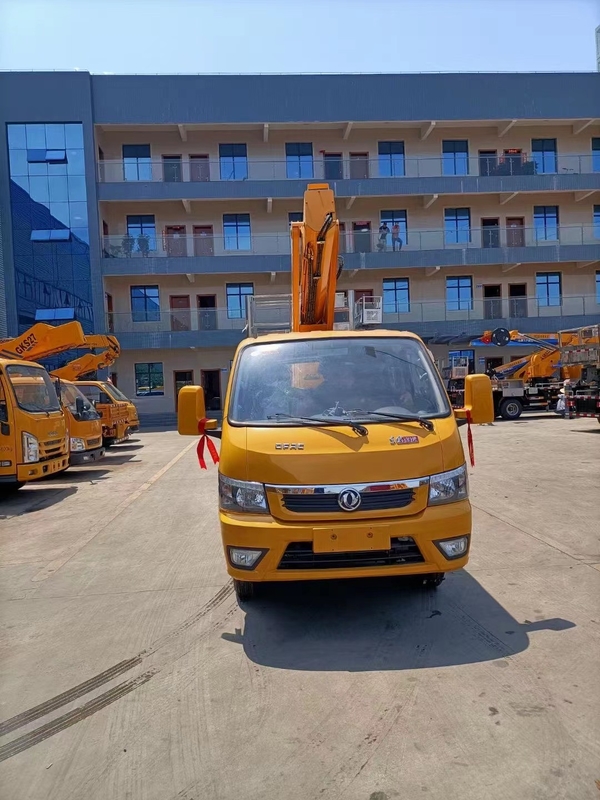

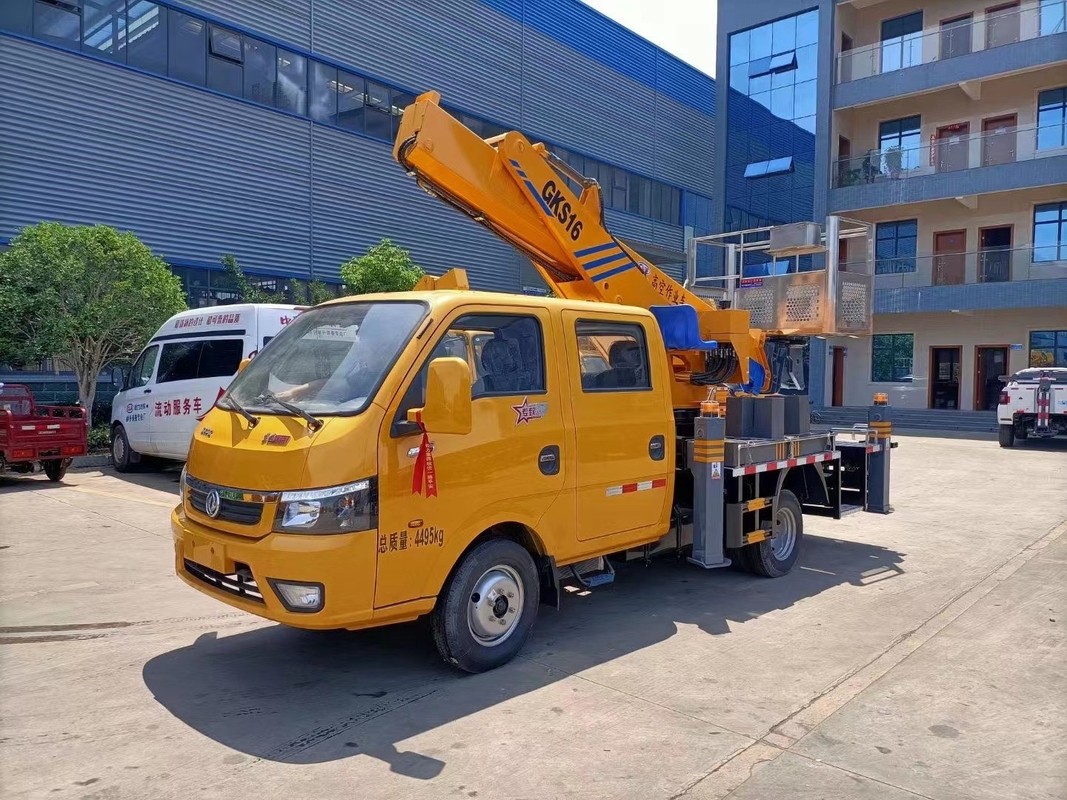

Dongfeng 4x2 High Altitude Operation Truck With 16 Meters Aerial Ladder Platform
Desciption:
1. Aerial work truck also called man lift truck , aerial work platform truck,aerial platform truck,bucket working truck,folding arm aerial trucks, self-propelled aerial work platforms, telescopic boom aerial work truck.
2. articulated telescopic bucket lift, truck mounted platform, high platform truck,high altitude operation truck,telescoping hydraulic lift truck,truck mounted aerial platform,high-up truck,telescopic bucket truck,hydraulic cage lift truck,truck mounted man lift,boom bucket truck,lifting platform truck,truck mounted articulating boom,truck with basket,overhead working truck,articulated telescopic bucket lift, truck mounted platform, high platform truck, man lift vehicle,Hydraulic beam lifter, mobile hydraulic aerial cage, is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.
Specification:
Item | unit | parameter | |
Chassis brand | dongfeng aerial work vehicle | ||
Engine Capacity | < 4L | ||
Platform Size | 1500*710*1000mm | ||
Axle load | kg | 1800/2695 | |
Loading capacity | 1215 | ||
truck mounted aerial lift weight | 4495 | ||
Curb weight | 4470 | ||
Wheel base | mm | 3360 | |
F/R track base | 1503/1494 | ||
Displacement | ml | 5900 | |
Traction system | 4*2 | ||
engine | hp | 115 | |
Max speed | km/h | 100 | |
Fuel type | Diesel | Engine | JX4D306H |
Number of axles | 2 | Pieces of spring | 6/6+5 |
Number of tires | 6 | Tire specification | 7.00R16LT 10PR |
Engine manufacturer | dongfeng Chaoyang Diesel Engine Co., LTD | ||
landing leg |
1. H type, individually adjustable, 2. 4untis
3. Control: independently adjustable and linkage
4. Front outrigger transverse span: 2680mm
5. Rear outrigger transverse span: 2960mm
|
||

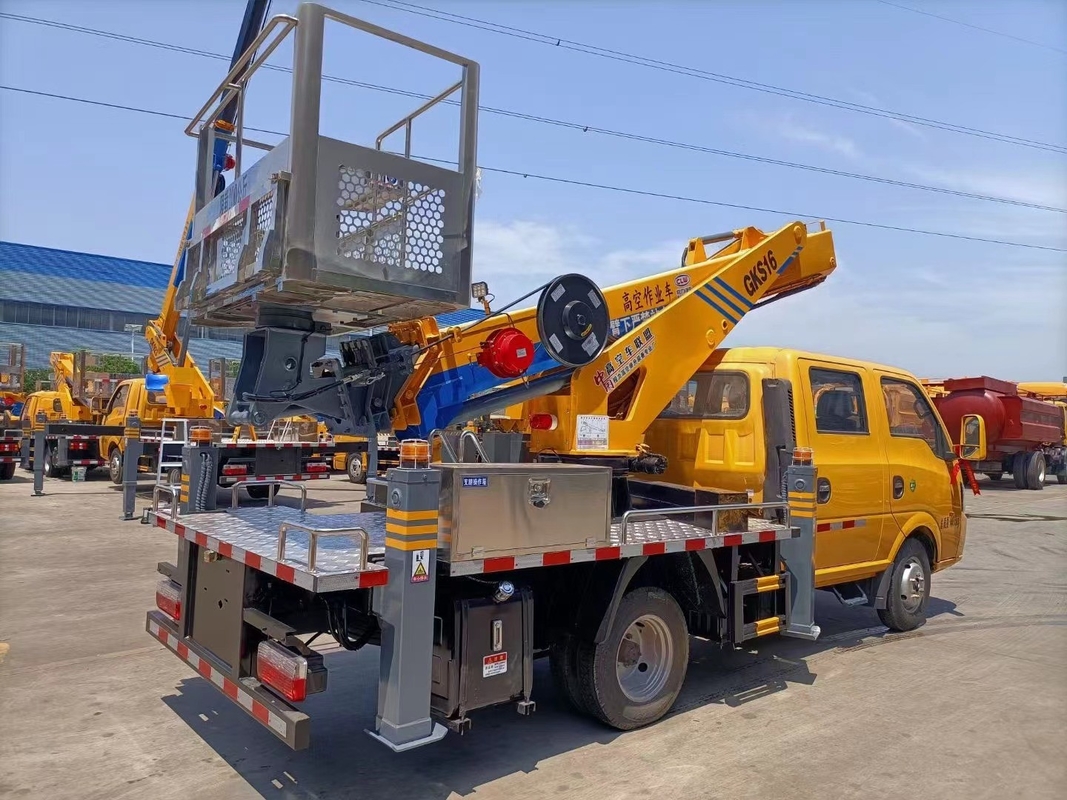

Operation main technical parameter | 1. Working altitude: 16 meters
2. The platform is ≥ 14.3m from ground
3. The maximum operating range of the platform ≥ 6.92m,
4. The job amplitude ≥ 2.26m at the maximum job height of the platform;
5. The job height ≥ 9.2m at the maximum operating amplitude of the platform
6. The maximum operating inclination of the platform is 80 degrees;

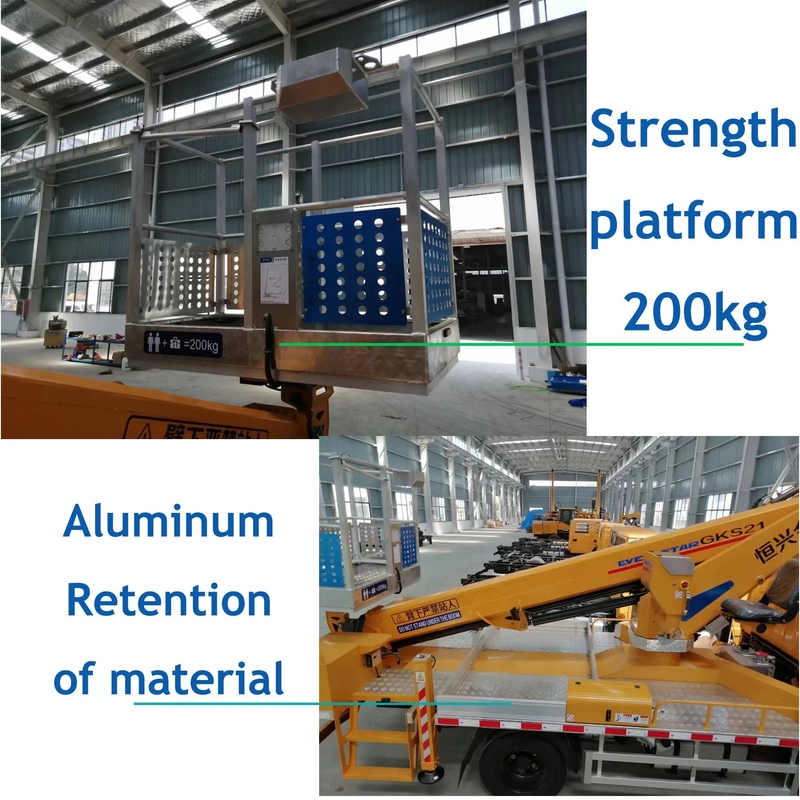

7.The work bucket is rated at 200 kg
|
||
Production cycle | 15 working days after deposit is received | ||
Warranty | 12 months, from the date of supply |
Our Services
1. Factory Supply:
a. one of the biggest and professional special using truck manufacturers in china,
b. more than 300 kinds of special truck for your needing.
2. OEM Ability: produce according to your demand, material, size, color and logo are optional for you.
3. Good Quality:
a. has solid technology, advanced equipments; reliant quality, flexible modes of operation and strict quality control system,
b. passed the ISO9001-2008 and the 3C (China Compulsory Certification),
c. our brand is china famous brand with good reputation in the market.
4. Good Service: you can contact us by 24-hour hotline or whatsapp or email.
5. Fast Delivery: 15-20 working days after payment, safe and quick delivery.
1. Price term: FOB Shanghai, China or CIF or DAF, according to customers' requirements.
2. Payment: 30-50% deposit after order confirmation, balance should be paid before delivery. All by T/T.
3. Delivery time: 15-20 working days after full payment is received.
4. Standard Steering: Left-hand drive, if you need Right-hand drive, please inform us, will make special order for you.
We highly recommend this refrigerator truck. It's in excellent condition with good quality and competitive price. For further information, please feel free to contact me, we will offer our best service.
