24m Truck Mounted Aerial Work Platform 4X2 Aerial Platform Truck

24m Truck Mounted Aerial Work Platform 4X2 Aerial Platform Truck

Truck Mounted Aerial Work Platform

24m Aerial Platform Truck

4X2 Aerial Platform Truck

Place of Origin:

Suizhou city, Hubei province

Brand Name:

jmc

Certification:

CCC, ISO OEM

Model Number:

D19TCIE1

Contact Us
Request A Quote
Product Details
Product Name:
Jmc 24m Aerial Platform Truck
Overall Dimension:
5998*2000*2950mm
Working Height:
16-24m Aerial Platform Truck
Application:
Aerial Operation
Brand:
JMC DONGFENG HOWO
Driving Type:
4X2
Emission Standard:
EURO 3
Fuel Tank Capacity:
200-300L
Engine Capacity:
< 4L
After-sales Service Provided:
Onsite Installation, Video Technical Support, Return And Replacement, Field Installation, Commissioning And Training, Online Support
Highlight:

Truck Mounted Aerial Work Platform

,

24m Aerial Platform Truck

,

4X2 Aerial Platform Truck

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
USD18,008-USD17,000
Packaging Details
Nude, ship by roll roll ship or bulk ship
Delivery Time
20 working days after deposit received
Payment Terms
T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability
5000 units per year
Product Description

24m High-Altitude Operation Trucks Truck Mounted Aerial Work Platform 4X2 Aerial Platform Truck



Desciption:



The unique design of the 24m JMC aerial vehicle includes its working height of up to 24m and the possible use of multi-section telescopic boom construction to ensure access to high-altitude working points. In addition, the vehicle may also be equipped with a 360-degree continuous rotation device, allowing the operating platform to rotate flexibly and increase the operating range. In terms of stability, the vehicle is designed with a stable leg structure to adapt to the needs of high-altitude work. At the same time, in order to improve the ease of operation, the vehicle may use an advanced electro-hydraulic proportional control system to achieve stepless speed regulation and accurate operation. In terms of safety performance, the vehicle may be equipped with safety equipment such as anti-lock braking system to ensure the safety of the operator. Together, these unique designs contribute to the exceptional performance of the 24m JMC aerial vehicle.

Specification:

Item unit parameter
Chassis brand   jmc Overhead Working Truck
Engine Capacity   < 4L

Platform Size 1500*710*1000mm
Axle load kg 1800/2695
Loading capacity 1215
truck mounted aerial lift  weight 4495
Curb weight 4470
Wheel base mm 3360
F/R track base 1858/1806
Displacement ml 5900
Traction system   4*2
engine hp 116
Max speed km/h 90
Fuel type Diesel Engine JX4D306H
Number of axles 2 Pieces of spring 6/6+5
Number of tires 6 Tire specification 7.00R15
Engine manufacturer dongfeng Chaoyang Diesel Engine Co., LTD
landing leg

1.H type, individually adjustable,

2. 4untis
3.Control: independently adjustable and linkage
4. Front outrigger transverse span: 2680mm
5. Rear outrigger transverse span: 2960mm
Operation main technical parameter 1. Working altitude: 16 meters
2. The platform is ≥ 14.3m from ground
3. The maximum operating range of the platform ≥ 6.92m,
4. The job amplitude ≥ 2.26m at the maximum job height of the platform;
5. The job height ≥ 9.2m at the maximum operating amplitude of the platform
6. The maximum operating inclination of the platform is 80 degrees;
7.The work bucket is rated at 200 kg
Production cycle 15 working days after deposit is received
Warranty 12 months, from the date of supply

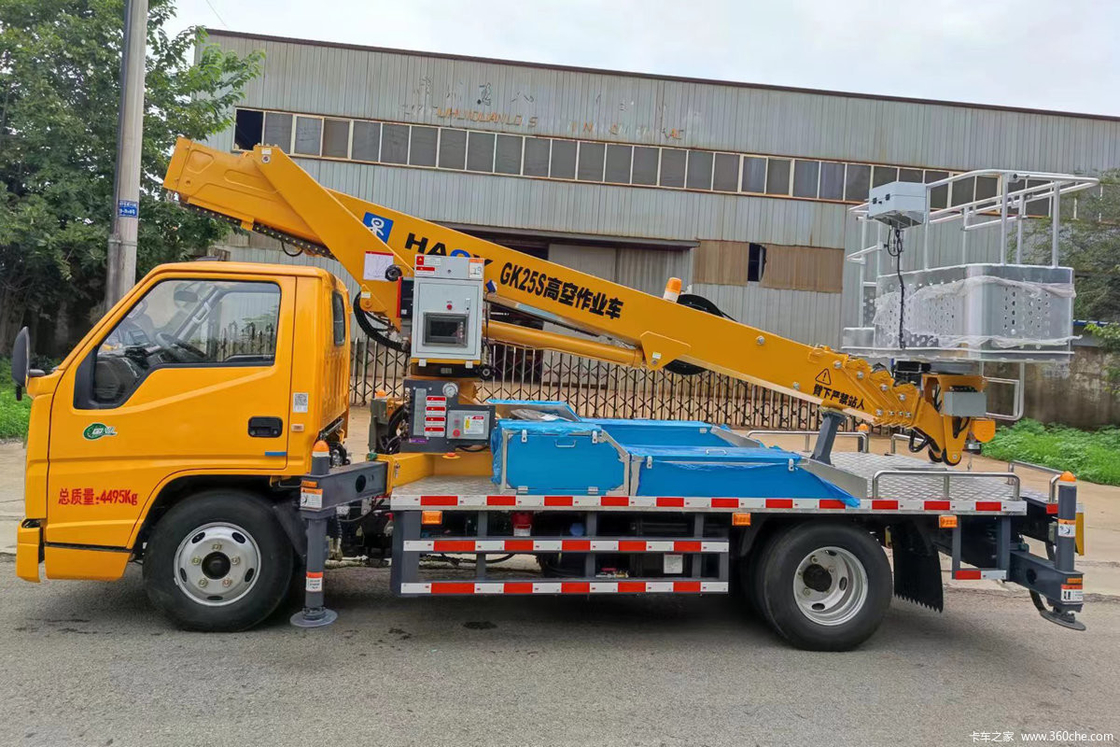

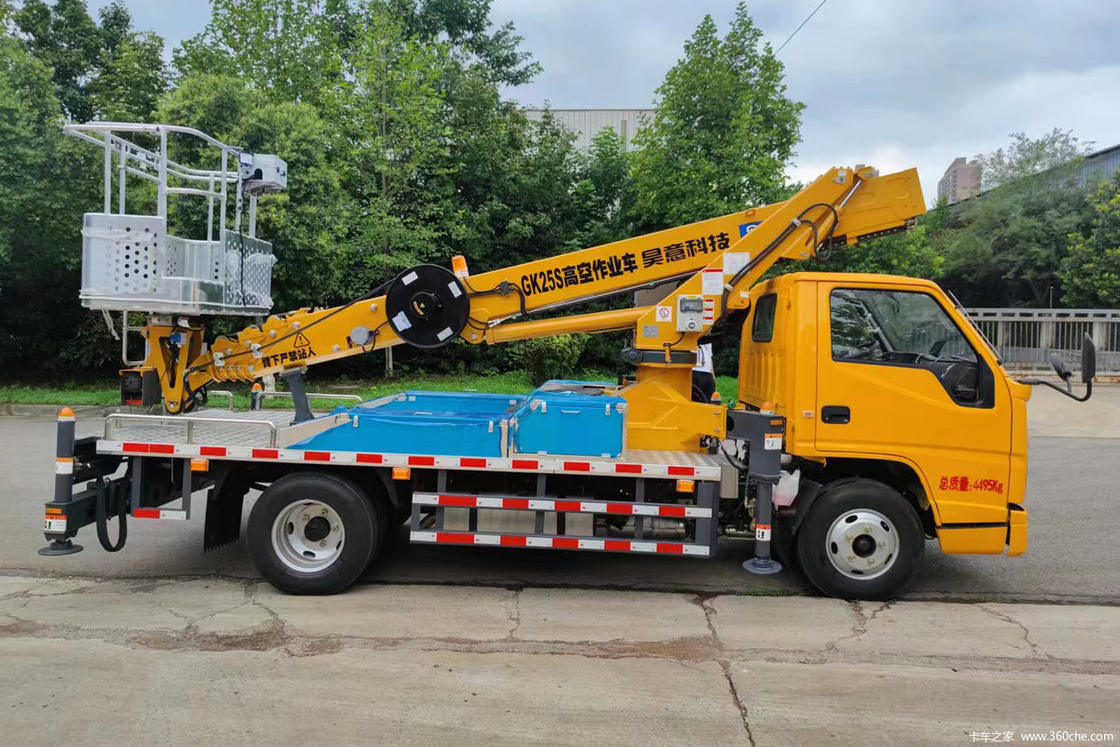

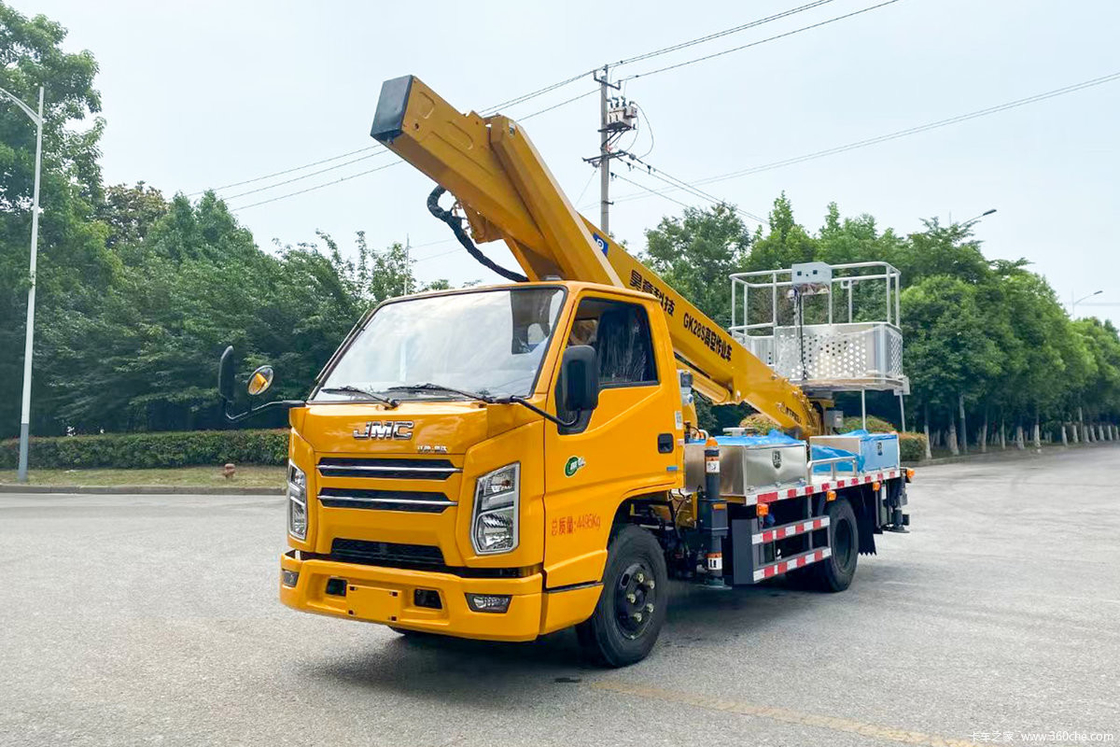

24m Truck Mounted Aerial Work Platform 4X2 Aerial Platform Truck 024m Truck Mounted Aerial Work Platform 4X2 Aerial Platform Truck 124m Truck Mounted Aerial Work Platform 4X2 Aerial Platform Truck 2
24m Truck Mounted Aerial Work Platform 4X2 Aerial Platform Truck 324m Truck Mounted Aerial Work Platform 4X2 Aerial Platform Truck 4



Our Services

1. Factory Supply:
a. one of the biggest and professional special using truck manufacturers in china,
b. more than 300 kinds of special truck for your needing.

2. OEM Ability: produce according to your demand, material, size, color and logo are optional for you.

3. Good Quality:
a. has solid technology, advanced equipments; reliant quality, flexible modes of operation and strict quality control system,
b. passed the ISO9001-2008 and the 3C (China Compulsory Certification),
c. our brand is china famous brand with good reputation in the market.

4. Good Service: you can contact us by 24-hour hotline or whatsapp or email.

5. Fast Delivery: 15-20 working days after payment, safe and quick delivery.

FAQ

1. Price term: FOB Shanghai, China or CIF or DAF, according to customers' requirements.



2. Payment: 30-50% deposit after order confirmation, balance should be paid before delivery. All by T/T.



3. Delivery time: 15-20 working days after full payment is received.



4. Standard Steering: Left-hand drive, if you need Right-hand drive, please inform us, will make special order for you.



We highly recommend this refrigerator truck. It's in excellent condition with good quality and competitive price. For further information, please feel free to contact me, we will offer our best service.
