Place of Origin:
Suizhou city, Hubei province
Brand Name:
isuzu
Certification:
CCC, ISO OEM
Model Number:
JX1041TSG25

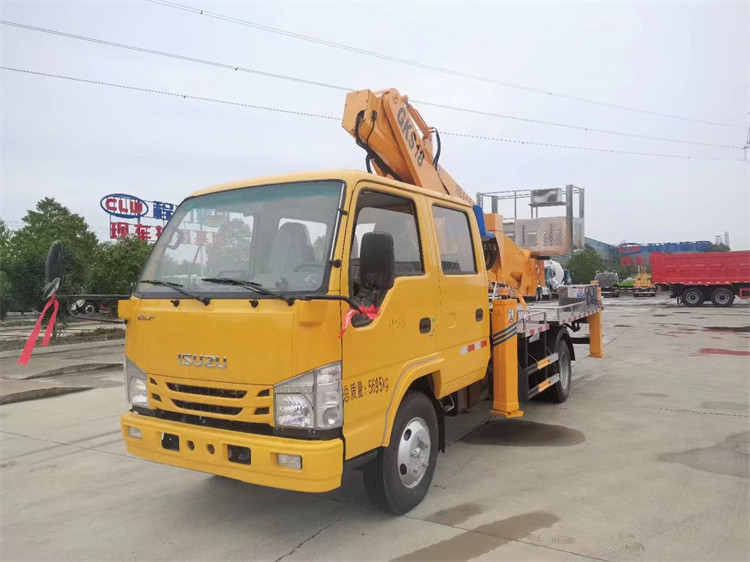

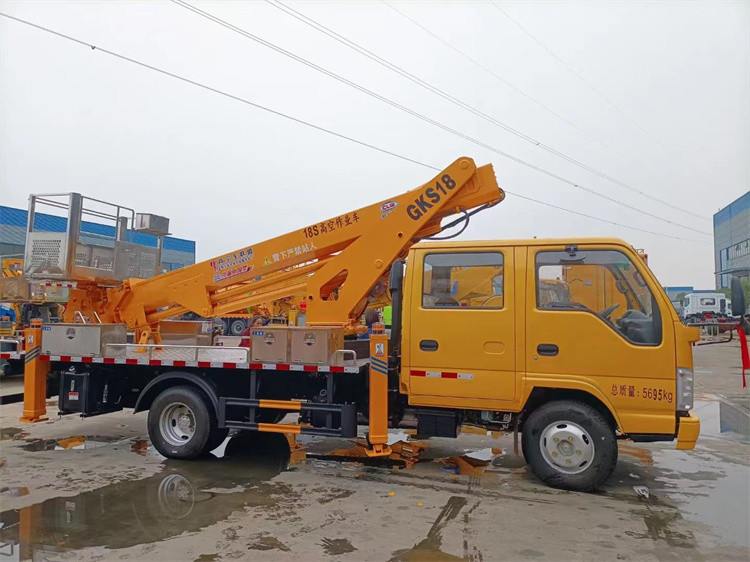

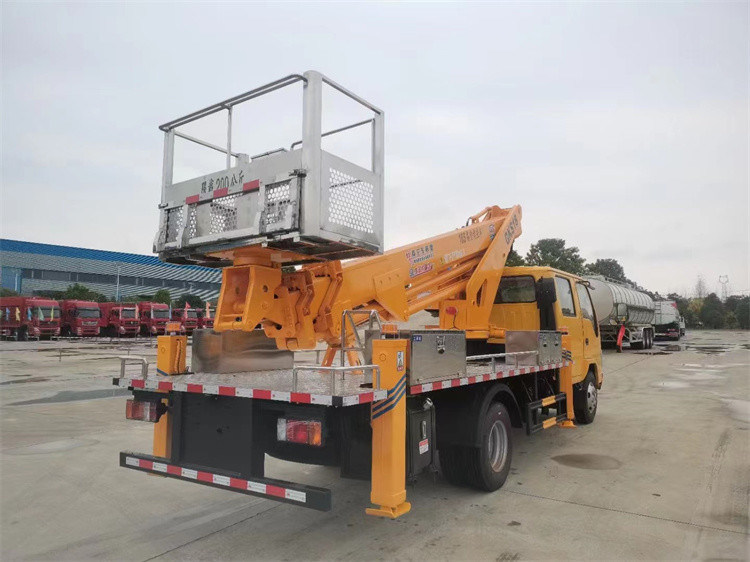

24m High-Altitude Operation Trucks Truck Mounted Aerial Work Platform 4X2 Aerial Platform Truck
Desciption:
The high reliability of Isuzu aerial work vehicle is reflected in the following aspects:
Premium engine
Isuzu's engines are known for their high efficiency, stability and durability, providing stable performance even in harsh environments and ensuring continuous operation for long periods of time.
Solid chassis
The chassis structure made of high-strength steel has excellent load bearing capacity and fatigue resistance, which is suitable for high load conditions.
Advanced technical support
Equipped with precision hydraulic and transmission systems, ensure smooth operation and non-failure of the equipment during operation.
Excellent brand reputation
As a well-known brand, Isuzu products have passed strict quality testing and years of market testing, and are trusted by users around the world.
Suitable for a variety of conditions
Whether it is city streets, rural roads or complex construction sites, Isuzu aerial work vehicles are capable and demonstrate a high degree of reliability.
This makes the Isuzu aerial work vehicle one of the preferred equipment in the field of aerial work.
Specification:
Item | unit | parameter | |
Chassis brand | isuzu Overhead Working Truck | ||
Engine Capacity | < 4L | ||
Approach/departure angle | 19/10 | ||
Gross weight | kg | 4495 | |
Curb weight | 4470 | ||
truck mounted aerial lift weight | 4495 | ||
Engine type | JX493ZLQ5A | ||
Wheel base | mm | 3360 | |
F/R track base | 1858/1806 | ||
Displacement | ml | 5900 | |
Traction system | 4*2 | ||
engine | hp | 116 | |
Max speed | km/h | 90 | |
Fuel type | Diesel | Engine | JX4D306H |
Number of axles | 2 | Pieces of spring | 6/6+5 |
Number of tires | 6 | Tire specification | 7.00R15 |
Engine manufacturer | i/suzu i/suzu Machinery CO.,LTD | ||
landing leg |
H type 4pcs |
||

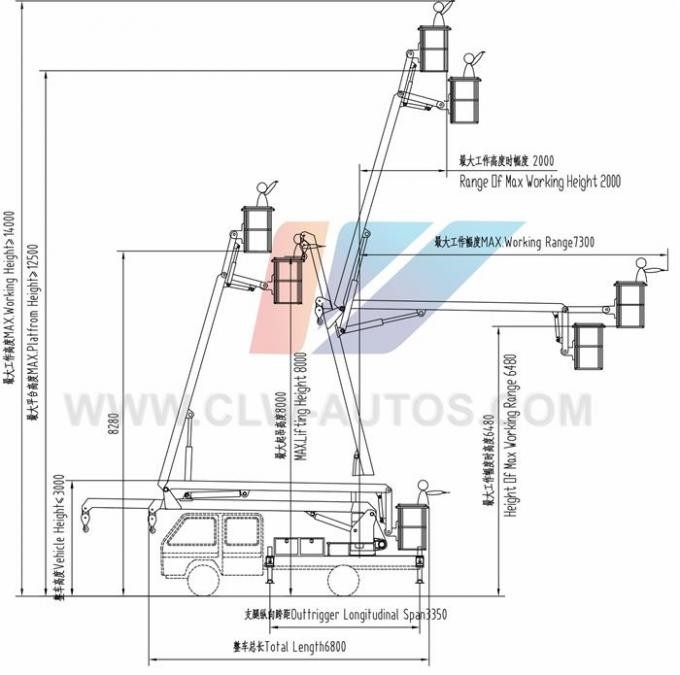

Operation main technical parameter | Height of platform above ground >10.8m Platform maximum operating range >6m Platform max operating range height>2.5m Rated load of working bucket 200kg |
||
Production cycle | 15 working days after deposit is received | ||
Warranty | 12 months, from the date of supply |
Our Services
1. Factory Supply:
a. one of the biggest and professional special using truck manufacturers in china,
b. more than 300 kinds of special truck for your needing.
2. OEM Ability: produce according to your demand, material, size, color and logo are optional for you.
3. Good Quality:
a. has solid technology, advanced equipments; reliant quality, flexible modes of operation and strict quality control system,
b. passed the ISO9001-2008 and the 3C (China Compulsory Certification),
c. our brand is china famous brand with good reputation in the market.
4. Good Service: you can contact us by 24-hour hotline or whatsapp or email.
5. Fast Delivery: 15-20 working days after payment, safe and quick delivery.
1. Price term: FOB Shanghai, China or CIF or DAF, according to customers' requirements.
2. Payment: 30-50% deposit after order confirmation, balance should be paid before delivery. All by T/T.
3. Delivery time: 15-20 working days after full payment is received.
4. Standard Steering: Left-hand drive, if you need Right-hand drive, please inform us, will make special order for you.
We highly recommend this refrigerator truck. It's in excellent condition with good quality and competitive price. For further information, please feel free to contact me, we will offer our best service.
