Place of Origin:
Suizhou city, Hubei province
Brand Name:
howo
Certification:
ISO, CCC
Model Number:
CLW5902
Desciption:

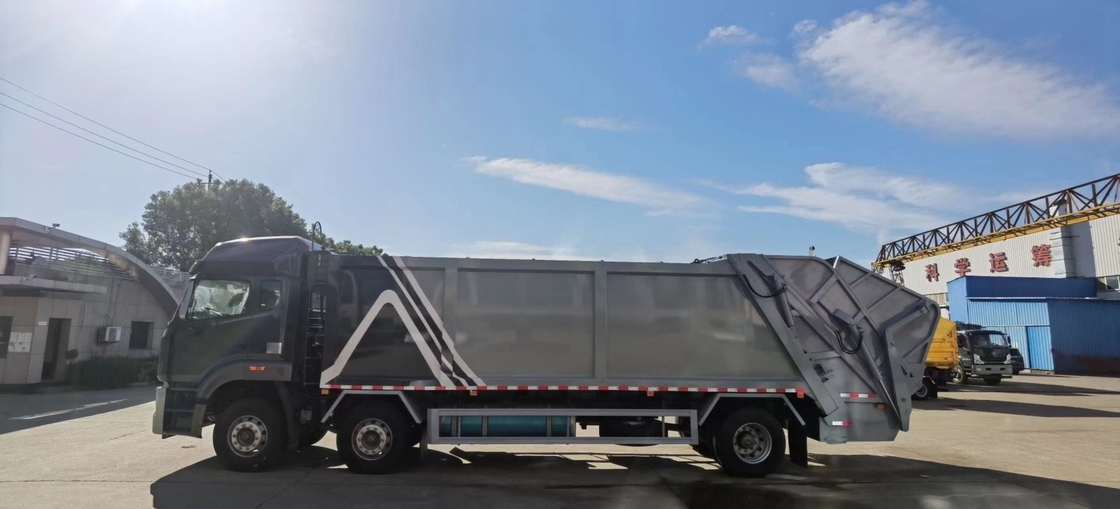

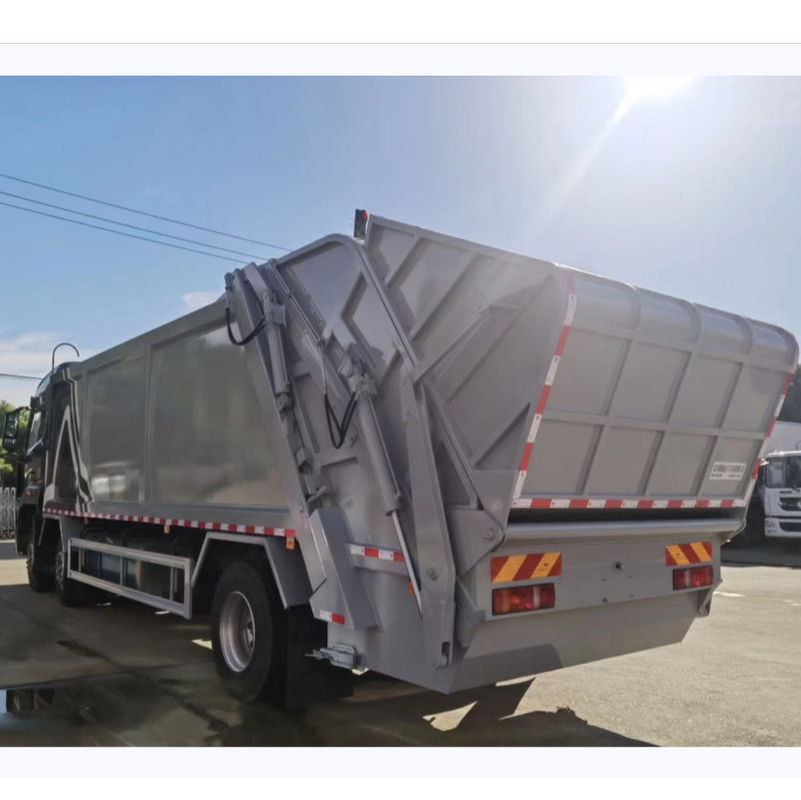

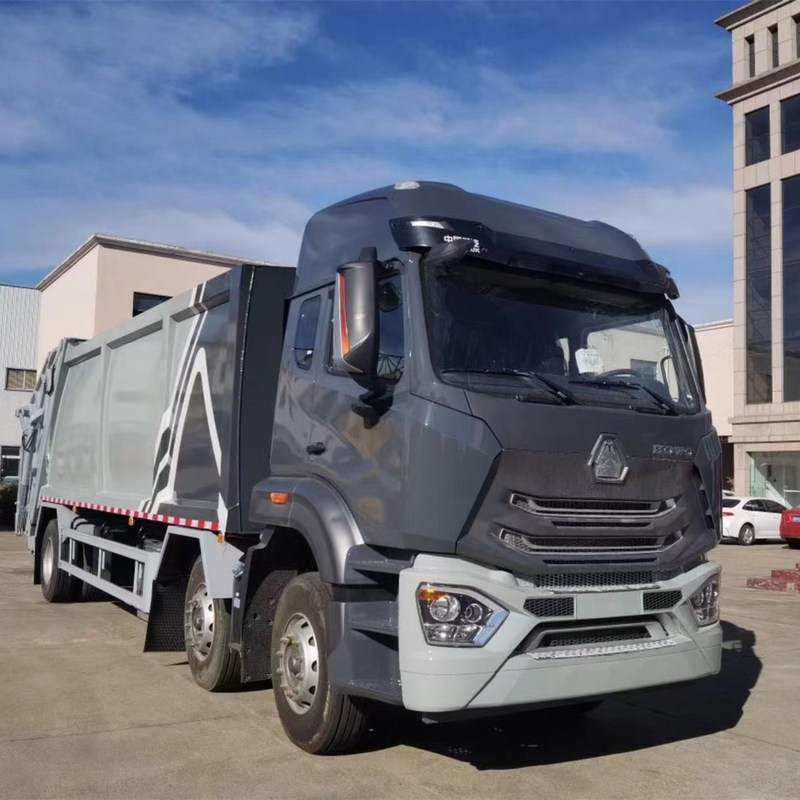

Sinotruk HOWo 24 cubic meter garbage truck has a number of significant technical features, the following is a detailed summary of these features:
First, strong power, stable operation
Engine configuration: The car may be equipped with high-horsepower engines from German brands such as Man or Weichai, such as 350 horsepower engines, to ensure that the vehicle has a strong power output. The large displacement engine (such as 7.6L) and high torque design enable the vehicle to maintain a stable operating state under various working conditions.
Transmission system: Equipped with advanced transmission systems, such as HOWo 10-speed transmission with synchronizer, and heavy truck original power extractor, to ensure smoother power transmission, improve vehicle fuel economy and operation efficiency.
Second, strong bearing capacity, solid structure
Chassis design: The use of high-strength steel double-deck frame design, such as 280 (8+5) mm straight-through double-deck frame, with a high bearing capacity of the rear axle (such as the German Man 13-ton rear axle), to ensure that the vehicle carrying capacity is strong, can meet the needs of various complex working conditions.
Tank material: The tank is made of high-quality steel (such as carbon steel Q345, stainless steel 304), and the thickness is moderate (such as 5mm on the bottom and 5mm on the side), which not only ensures the robustness of the tank, but also reduces the weight of the vehicle.
Third, the operation is convenient, high degree of intelligence
Control system: hydraulic manual + wireless remote control mode, making vehicle operation more convenient. The driver can remotely control the various actions of the vehicle through the remote control, improving work efficiency and safety.
Intelligent configuration: The vehicle may be equipped with intelligent configuration such as tachograph, central control lock, remote control key, etc., to enhance the safety and convenience of the vehicle. At the same time, it may also be optional to install intelligent functions such as full alarm and full self-stop to further reduce the difficulty of the driver's operation.
Fourth, environmental protection and energy saving, in line with emission standards
Emission standards: The vehicle meets the national six emission standards and meets the requirements of the national environmental protection policy. Adopt advanced energy-saving technology and design to reduce fuel consumption and emissions and reduce environmental pollution.
Anti-freeze measures: For the use of cold areas, vehicles may be equipped with anti-freeze measures to ensure normal operation in low temperatures.
5. High comfort and humanized design
Cab design: Four-point suspension wide body wide sleeper cab design, equipped with air bag seats and automatic thermostat air conditioning and other comfort configuration, to provide drivers with a spacious and comfortable driving environment.
Body size: The vehicle may have an extra-wide body (e.g. 2.35 m) and extra-long body (e.g. 2.2 m), as well as an extra-wide sleeper (e.g. 0.7 m), creating a spacious and comfortable mobile home.
In summary, Sinotruck HOWo 24 cubic meter garbage truck has many significant features in terms of technology, such as strong power, strong carrying capacity, convenient operation, environmental protection and energy saving, and high comfort. These characteristics make this model in the field of environmental sanitation has a wide range of application prospects and market competitiveness.
Specification:
Item
|
Parameter
|
|
Vehicle name
|
Howo 10wheel Lift Compactor Garbage Truck
|
|
Vehicle model
|
CLW5902
|
|
Gross Vehicle Weight
|
25000 kg
|
|
GVW(kg)
|
25000
|
|
Overall dimensions
|
11160*2500*3600
|
|
Wheel base
|
4600+1350 mm
|
|
Fuel type
|
Diesel
|
|
Engine model
|
WD615.47
|
|
Engine horse power
|
371HP | |
Displacement
|
9.726L
|
|
Emission standard
|
Euro 2
|
|
Tire specification
|
7.00R16
|
|
Number of tires
|
10+1 SPARE
|
|
Traction system
|
6×4
|
|
Transmission
|
Mld, 10 Gears Frowards and 1 Reverse
|
|
Max speed
|
82km/h
|
|
Electrics
|
|
|
Production cycle
|
15-20 working days
|
|
Warranty
|
12 month, from the date of supply
|
|
Price
|
EXW/FOB/CFR/CIF/DAF/DDU
|
|
Payment terms
|
30-50% as the deposit, the rest payment must be paid when the production finished in our factory before delivery. All by T/T.
|
Our Services
1. Factory Supply:
a. one of the biggest and professional special using truck manufacturers in china,
b. more than 300 kinds of special truck for your needing.
2. OEM Ability: produce according to your demand, material, size, color and logo are optional for you.
3. Good Quality:
a. has solid technology, advanced equipments; reliant quality, flexible modes of operation and strict quality control system,
b. passed the ISO9001-2008 and the 3C (China Compulsory Certification),
c. our brand is china famous brand with good reputation in the market.
4. Good Service: you can contact us by 24-hour hotline or whatsapp or email.
5. Fast Delivery: 15-20 working days after payment, safe and quick delivery.
1. Price term: FOB Shanghai, China or CIF or DAF, according to customers' requirements.
2. Payment: 30-50% deposit after order confirmation, balance should be paid before delivery. All by T/T.
3. Delivery time: 15-20 working days after full payment is received.
4. Standard Steering: Left-hand drive, if you need Right-hand drive, please inform us, will make special order for you.
We highly recommend this compactor garbage truck. It's in excellent condition with good quality and competitive price. For further information, please feel free to contact me, we will offer our best service.
