Place of Origin:
Suizhou city, Hubei province
Brand Name:
CLW
Certification:
ISO, CCC
Model Number:
CLW5090TQZD3

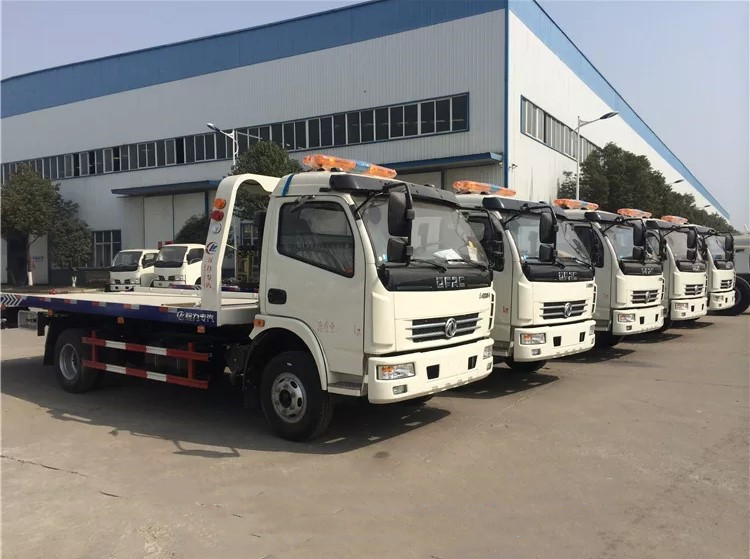

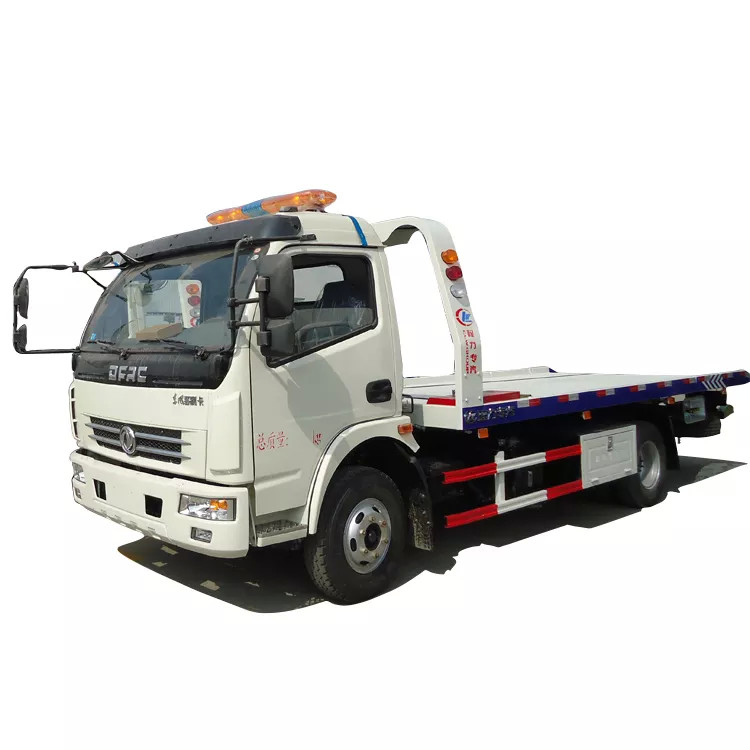

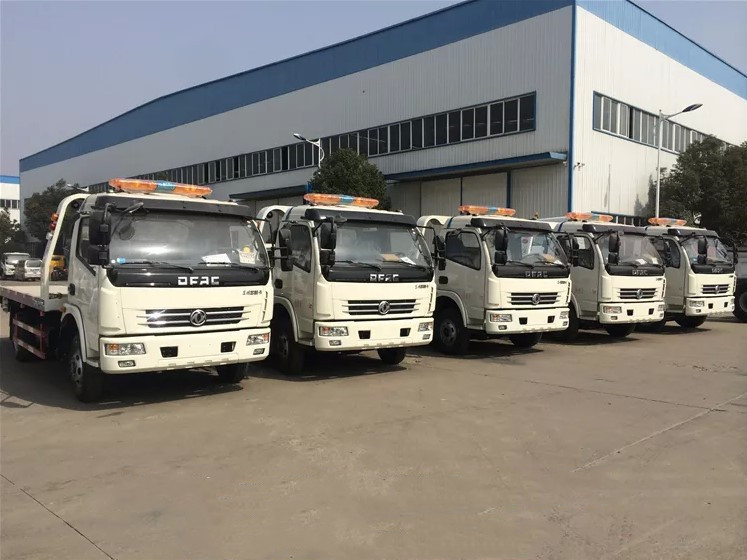

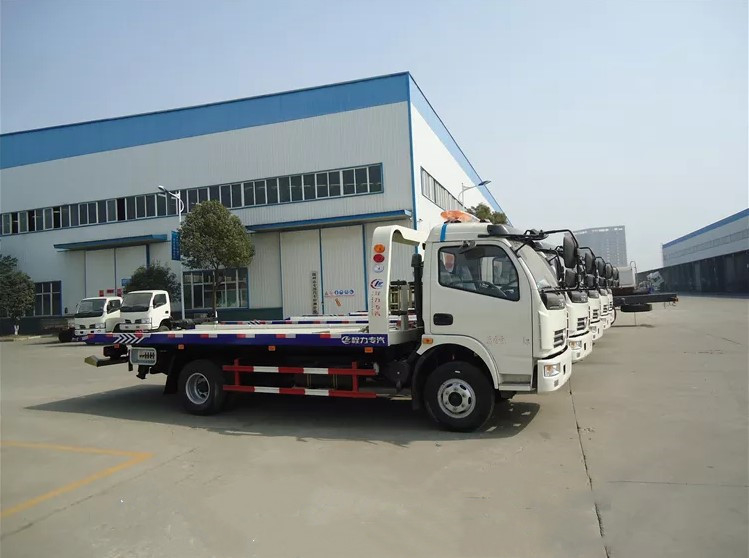

4-5 Tons Flatbed Wrecker Hydraulic Right Hand Drive Tow Truck Wrecker
Desciption:
The wrecker truck is also called the road wrecker, also known as wrecker tow truck, platform tow truck, flatbed tow truck, towing truck, road rescue vehicle, towing tractor wrecker truck, car towing truck, and tow truck.
(1). Capacity: 2-10 ton flatbed wrecker,11-30 ton rotator wrekcer.
(2). Steering wheel: both left and right hand drive, meet the needs of different countries.
(3). Emission standard: option Euro 1, Euro 2, Euro 3, Euro 4, Euro 5 tow truck wrecker
(4). Optional tow truck wrecker chassis brand: Dongfeng, I-SUZU, JAC, JMC, FAW, FOTON, SINOTRUK, etc.
Specification:
Complete Vehicle | |
ITEM | DESCRIPTION |
Vehicle | DONGFENG flatbed tow truck |
Overall dimension (mm) | 7470 × 2350 × 2440 |
Flatbed dimension (mm) | 5550 × 2300 |
Curb weight (kg) | Appro × 4910 |
Flatbed loading weight (kg) | Appro × 4000 |
Under wheel lift weight (kg) | Appro × 3000 |
Wheelbase (mm) | 3800 |
Max speed (km/h) | 90 |
Truck Chassis | |
Cabin | Single row cabin,power steering,no air conditioner, cabin roof warning light, 2-3 passengers,right hand drive |
Traction system | 4×2 |
Engine |
Brand : DONFGENG Model : CY4102-E3C Engine power : 120hp Type : diesel, 4 cylinder. Displacement : 3856ml Emission standard : Euro 3 |
Transmission | 5 forward,1 reverse, manual operated |
Tire model | 7.50R16 |
No.of tire | 6pcs, with a spare tire |
Towing Body | |
Standard configuration |
(1) 4 tons winch 1 set (2) Auxiliary wheel 2pcs (3) Rear towing arm assembly 1 set (4) Steel wire rope 21m (5) Bundle rope 4pcs (6) Rear tail lights LED,both sides electronic lights. (7) Tool box |
Special performance |
1. It can tow two cars. 2. Hydraulic control flatbed and carriage arm,with hydraulic operation lever. 3. Winch speed : 8m/min. 4. Flatbed working stroke: 2680mm 5. Flatbed minimum tilt angle: 10° 6. Carriage arm telescopic stroke: 1180mm 7. The max effective length of the carriage arm: 1300mm. |
1. Factory Supply:
a. one of the biggest and professional special using truck manufacturers in china,
b. more than 300 kinds of special truck for your needing.
2. OEM Ability: produce according to your demand, material, size, color and logo are optional for you.
3. Good Quality:
a. has solid technology, advanced equipments; reliant quality, flexible modes of operation and strict quality control system,
b. passed the ISO9001-2008 and the 3C (China Compulsory Certification),
c. our brand is china famous brand with good reputation in the market.
4. Good Service: you can contact us by 24-hour hotline or whatsapp or email.
5. Fast Delivery: 15-20 working days after payment, safe and quick delivery.
1. Price term: FOB Shanghai, China or CIF or DAF, according to customers' requirements.
2. Payment: 30-50% deposit after order confirmation, balance should be paid before delivery. All by T/T.
3. Delivery time: 15-20 working days after full payment is received.
4. Standard Steering: Left-hand drive, if you need Right-hand drive, please inform us, will make special order for you.
We highly recommend this wrecker truck. It's in excellent condition with good quality and competitive price. For further information, please feel free to contact me, we will offer our best service.
