Name: 3 Axles 42000L Liquid Oil Tank Trailer Diesel Fuel Tank Semi Trailer
Brand: CLW
SKU: (CLW9404GYY
Price: 18 USD
Availability: InStock
Rating: 4.6 (139 reviews)

Home > products > Fuel Tank Truck >

3 Axles 42000L Liquid Oil Tank Trailer Diesel Fuel Tank Semi Trailer

42000L Liquid Oil Tank Trailer

3Axles Oil Tank Trailer

ISO Diesel Fuel Tank Trailer

Place of Origin:

Suizhou city, Hubei province

Brand Name:

CLW

Certification:

ISO

Model Number:

(CLW9404GYY

Request A Quote

3 Axles 42000L Liquid Oil Tank Trailer Diesel Fuel Tank Semi Trailer

Product Details

Product Name:

42m3 Oil Tank Truck Semi Trailer

Overall Dimension:

12980×2500×3820mm

Tank Material:

Q235 Carbon Steel

Tank Capacity:

45000L

Fuel Type:

Diesel/palm Oil/gasoline

Color & Logo:

Per Customer Requirement

Highlight:

42000L Liquid Oil Tank Trailer

3Axles Oil Tank Trailer

ISO Diesel Fuel Tank Trailer

Payment & Shipping Terms

Minimum Order Quantity

1 unit

Price

USD18,500-USD22,000

Packaging Details

Nude, ship by roll roll ship or bulk ship

Delivery Time

20 working days after deposit received

Payment Terms

T/T, D/A, D/P, L/C, Western Union, MoneyGram

Supply Ability

1000 units per year

Sinotruk 20m3 Oil Delivery Truck 6*4 6000 Gallon Fuel Truck For Sale

Get Best Price

45000 Litres Water Palm Oil Fuel Tanker Semi Trailer By Carbon Steel

Get Best Price

3 Axles 42000L Liquid Oil Tank Trailer Diesel Fuel Tank Semi Trailer

Get Best Price

5m3 Mobile Fuel Tank Dispenser Truck 5000L SINOTRUK HOWO Oil Bowser Truck

Get Best Price

Contact Now

Product Description

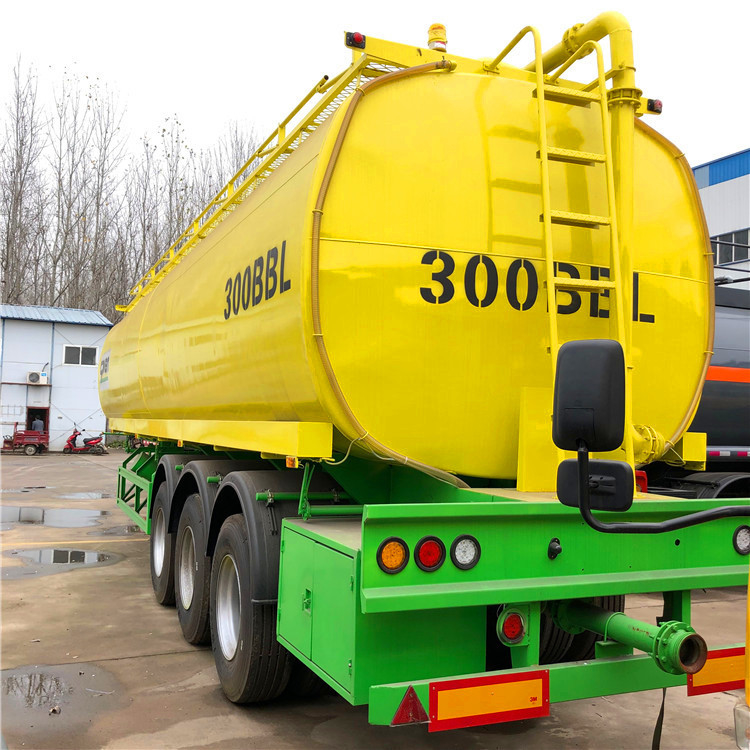

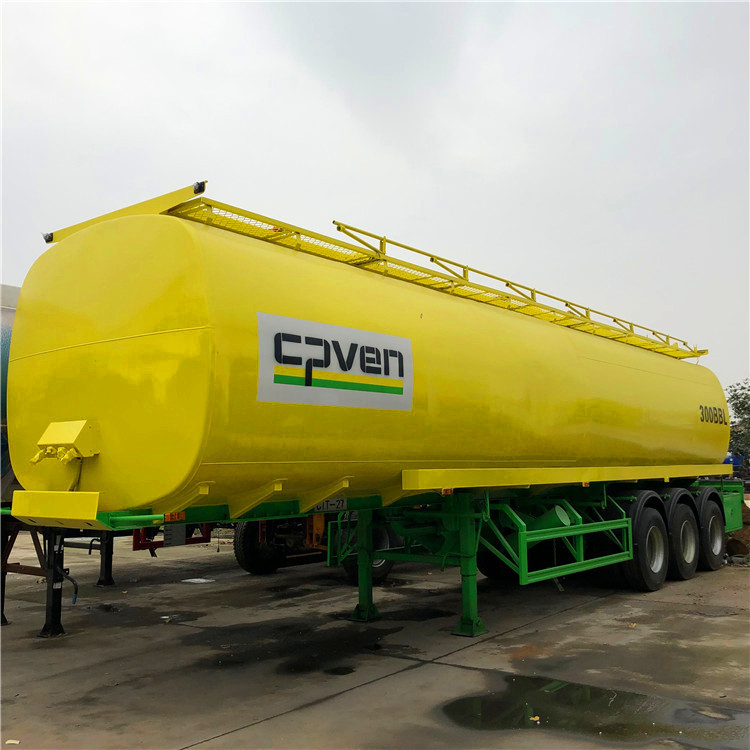

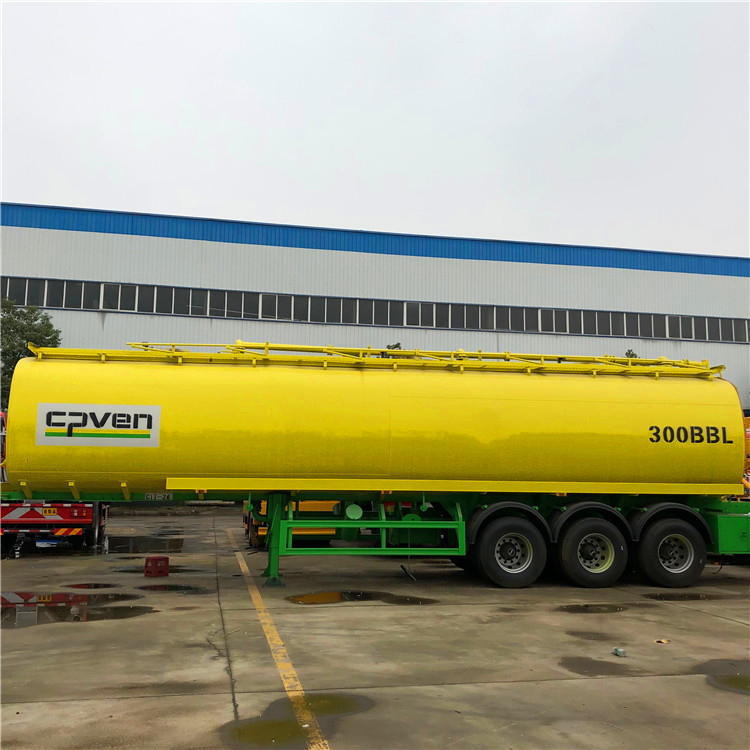

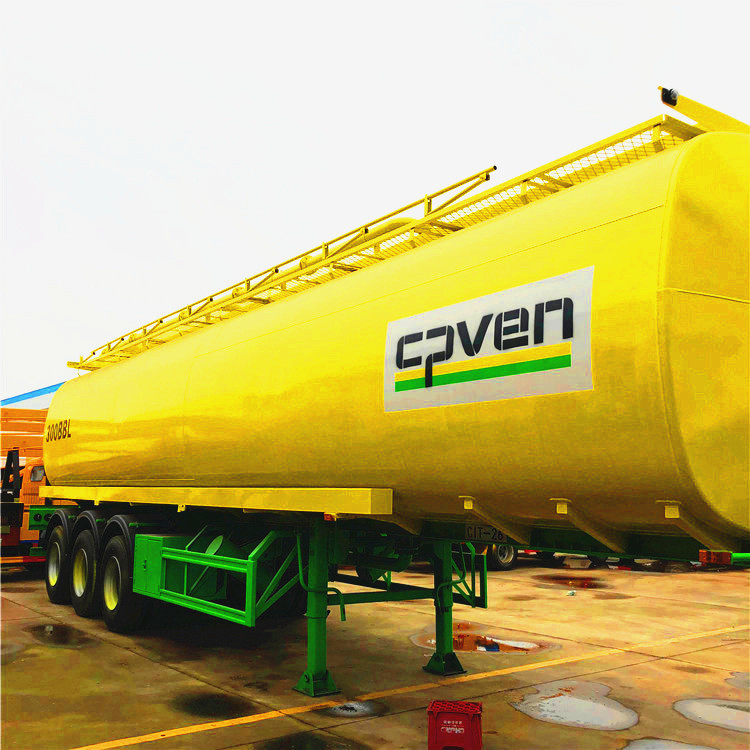

3 Axles 42000L Liquid Oil Tank Trailer Diesel Fuel Tank Semi Trailer

Desciption:

We produce different types of fuel tanker semi-trailer lile as three axle fuel tanker semi-trailer.

All various fuel products can be carried with 3 axle fuel tanker semi-trailer. Petroleum,Diesel,Fuel oil,JET A1 and many other types of fuel products transportation suitable with three axle tanker semi-trailer.

Loading capacity between 20.000 ltr to 57.000 ltr for 3 axle fuel tanker semi-trailer. Compartment quantities can be arranged acording to the customer request on 3 axle fuel tanker semi-trailer.

Specification:

Overall Dimension(mm)	11500x2500x3900mm
Wheelbase	7,500mm+1,310mm+1,310mm
Payload	40,000kg
Tare weight	10,000kg
G.V.W.R.	50,000kg
Function	transport Fuel, Oil, Diesel
Tank
Volume	42000L
Thickness(mm)	Material Q235 carbon steel Tank body and separate compartment plate: 5mm Dish end plate: 6mm
Welding standard	All welding is to be done by qualified welder per applicable national standard
Compartment	3 compartments (3*14000L)
Manhole cover	3 units Safety manhole with breath valve, Aluminum, diameter 500mm.
Discharge valve	3 units 3” API valve with dust cover, aluminum Henghe Brand
Bottom valve	3 units 4-inch Pneumatic aluminum valve, 1pcs, Henghe Brand
Discharge pipe	3〞seamless steel tube, 6m
Tanker body test	Hydrostatic test to 5 psi (35 Kpa) on each compartment
Running System
Axle	14Ton, L1 brand optional FUWA brand, 3Axles, one hundred fifty thousand Kilometers no need maintenance
Axle Number	Three
Tire	12R22.5, 12 pcs. Taitong brand
Rim	9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs
Suspension system	Mechanical Suspension
Steel Spring	10/10/10 leaf spring with 90mm(W) *13mm(thickness)
Electrical System	Chinese standard 24V lighting system
Brake system:	Dual line pneumatic brake, SAE hose and connector,no ABS
Brake air chamber	6 units T30/30 spring brake chambers
Emergency relay valve	Wabco relay valve
Tire Type and quantity	1200R22.5 12units
Traction/King Pin	2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster
Landing Gear	Zhenhua brand 28ton external two speed- -telescopic manual operation 2,500mm behind the kingpin location
Accessories:
Tool box	1pcs, One crank and one shaft head wrench
Fire extinguisher	2 units per trailer
Handrail	800mm height, pneumatic controlling
Mud guard	Steel mud guard and front mudguard
Walkway	Anti-skid walk way from rear to first manhole
Ladder	High folding ladder as CIMC standard
Spare wheel carriers	2 pcs
bumper	Rear bumper with adjustable height
Electrical system	1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
	Tail lamp with turn signal, brake light & reflector, side lamp etc.
	One set 6-core electric cable protected by PVC conduit on main frame
Paint	Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um, A layer of anti-rust paint, two-layer finish. Waxed
Packing	Nude, Polish with wax before shipping

Application: Widely used for petrol/oil/fuel transport.

3 Axles 42000L Liquid Oil Tank Trailer Diesel Fuel Tank Semi Trailer 0

Our Services

1. Factory Supply:
a. one of the biggest and professional special using truck manufacturers in china,
b. more than 300 kinds of special truck for your needing.

2. OEM Ability: produce according to your demand, material, size, color and logo are optional for you.

3. Good Quality:
a. has solid technology, advanced equipments; reliant quality, flexible modes of operation and strict quality control system,
b. passed the ISO9001-2008 and the 3C (China Compulsory Certification),
c. our brand is china famous brand with good reputation in the market.

4. Good Service: you can contact us by 24-hour hotline or whatsapp or email.

5. Fast Delivery: 15-20 working days after payment, safe and quick delivery.

FAQ

1. Price term: FOB Shanghai, China or CIF or DAF, according to customers' requirements.

2. Payment: 30-50% deposit after order confirmation, balance should be paid before delivery. All by T/T.

3. Delivery time: 15-20 working days after full payment is received.

4. Standard Steering: Left-hand drive, if you need Right-hand drive, please inform us, will make special order for you.

We highly recommend this fuel tank truck. It's in excellent condition with good quality and competitive price. For further information, please feel free to contact me, we will offer our best service.
