High Performance Euro 3 Concrete Truck With 9726ml Displacement For Smooth Operations

High-Performance Euro 3 Concrete Truck With 9726ml Displacement For Smooth Operations

Product Description:

Regarding the mixing uniformity and unloading speed of the FAW mixer truck, it generally has the following characteristics:

1. Mixing uniformity
Mixing uniformity guarantee:
Faw mixing truck adopts scientifically designed mixing tank blade and helix arrangement to ensure that the concrete is turned over and mixed evenly in the tank, and it is not easy to segregate or caking.

Blade design:
It is usually double spiral or multi-spiral blade to optimize the flow path of concrete and reduce the dead Angle of mixing.
The thickness of the blade is more than 5mm, and the wear resistance is good to ensure long-term stable performance.
Speed adjustment:
The speed is moderate (usually 11-16 RPM), which ensures that the concrete is evenly mixed while preventing segregation caused by high-speed mixing.
Actual performance:
Faw mixer can well maintain the uniformity of concrete, meet the quality requirements of commercial concrete, and it is not easy to stratify and dissolve water during transportation.

2. Unloading speed
Discharge speed range:
Usually 2-3 square/minute, fully in line with the construction schedule needs of the site.

For example: 8 square mixer can complete unloading in about 3 minutes.
For high-demand sites, the discharge speed can be optimized by adjusting the hydraulic system flow and tank speed.
Optimize discharge structure:

Large diameter discharge chute: Reduce the possibility of blocking during discharge.
Hydraulic drive system: keep the discharge process stable and smooth to avoid uneven discharge caused by flow fluctuation.
3. Residual rate
Residual rate standard:
The concrete residue rate after unloading of the FAW mixer truck is usually controlled within 0.5%-1%, which is fully in line with industry standards.

The reason:
The efficient design of the blade and tank spiral Angle allows the concrete to be almost completely discharged during unloading.
The discharge is hydraulically driven, and the discharge end can be further emptied by low-speed rotation.
Cleaning convenience:
After unloading is completed, the amount of concrete remaining in the tank is very small, which is easy to clean, save time and water consumption, and reduce tank wear.

Sum up
Faw mixer has excellent performance in mixing uniformity and unloading speed, and its design concept and performance fully meet the high requirements of modern construction sites for concrete quality and transportation efficiency.

Mixing uniformity: concrete without segregation, no caking, high stability during transportation.
Discharge speed: fast and stable, to meet the large-scale construction schedule.
Residue rate: less than 1%, reducing waste and cleanup costs.
These characteristics make the FAW mixer a reliable choice for site construction.

Features:

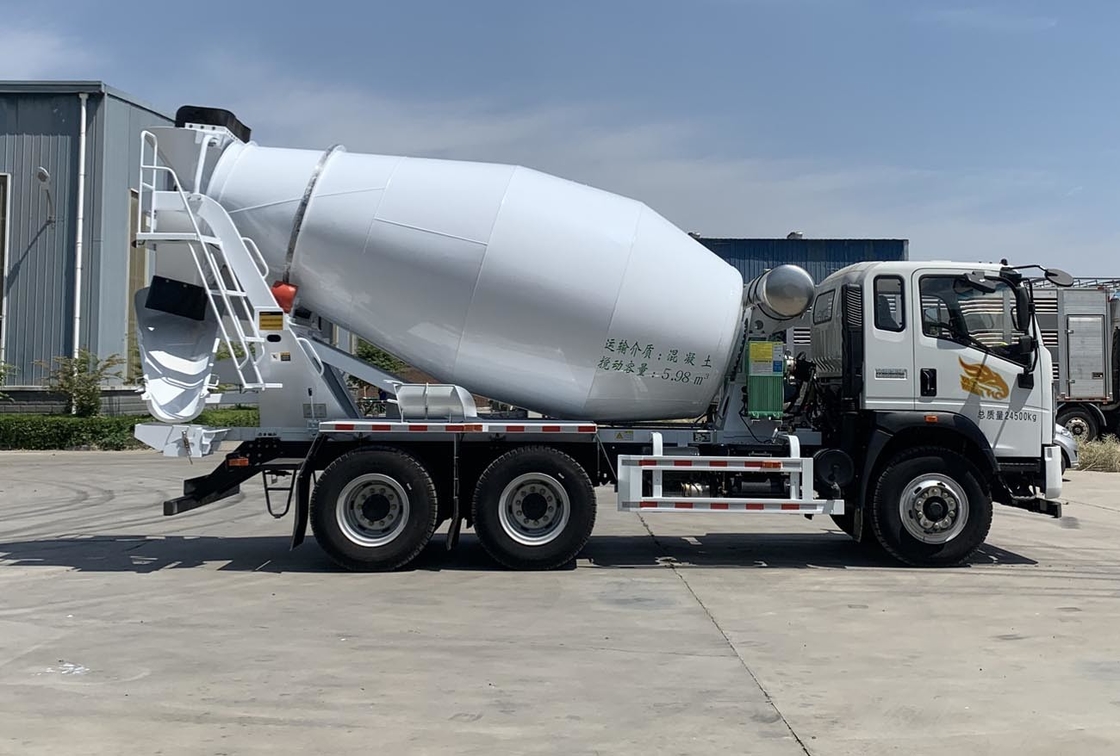

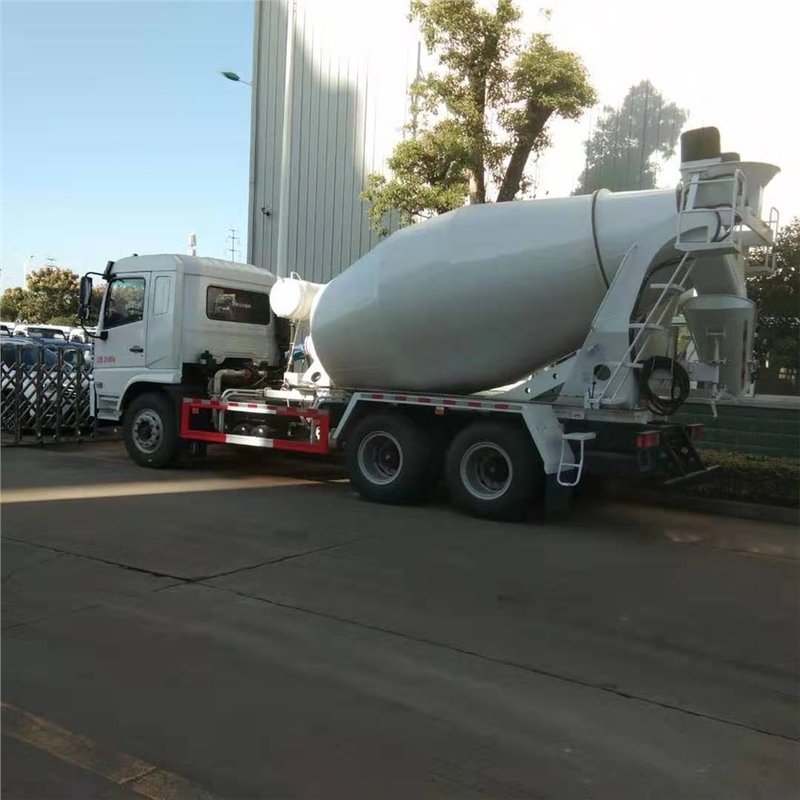

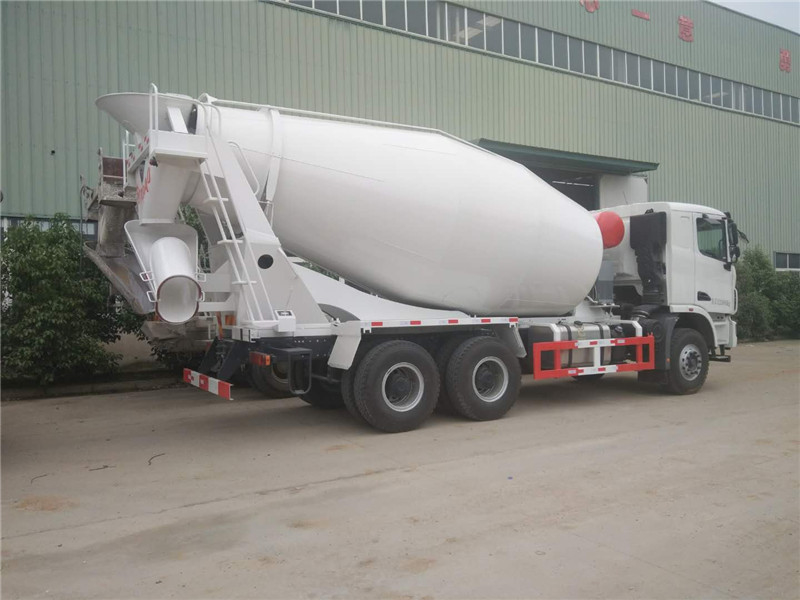

• Product Name: Concrete Mixer Truck
• Transmission: 10 Speed Forward 2 Reverse
• Emission: Euro 3
• Loading Capacity: 10 M3
• Tire: 12.00R20 Steel Wire Tire
• Displacement: 9726ml
• Cement Mixer Lorry
• Concrete Cement Truck
• Truck for Concrete Mix

Technical Parameters:

For cement lorry, mixer truck concrete, price of cement truck, concrete transport truck, and transit mixer truck, our Concrete Mixer Truck is the perfect choice. With a HW76 Cab that can accommodate up to 3 passengers and an air conditioner, this truck provides a comfortable and spacious ride for the driver and passengers.

Equipped with Power Assisted Steering, the steering device ensures easy maneuverability and control of the truck. The 336hp horse power and diesel fuel type make it a powerful and efficient vehicle for transporting concrete.

The 12.00R20 Steel Wire Tire provides excellent traction and durability for heavy-duty usage. And with a mixing capacity of 10 m³ and a water tank capacity of 300 L, this truck can handle large amounts of concrete effortlessly.

With an emission level of Euro 3, this truck is compliant with environmental regulations. And with a loading capacity of 10 m³, it is perfect for any concrete transportation needs. The steering wheel can be placed on the left or right hand side, providing flexibility and convenience for drivers.
