What is the composition of the concrete mixer?
Product Description:
It is composed of automobile chassis, stirring cylinder, transmission system, water supply device, full power extractor, stirring cylinder before and after support, reducer, hydraulic transmission system, inlet and outlet system, control mechanism and other parts. Due to the technical bottleneck, the domestic stirring truck tank volume of 3m³-8m³ uses the domestic four large parts, and the four large parts of the volume of 8m³ or more are mostly imported parts.

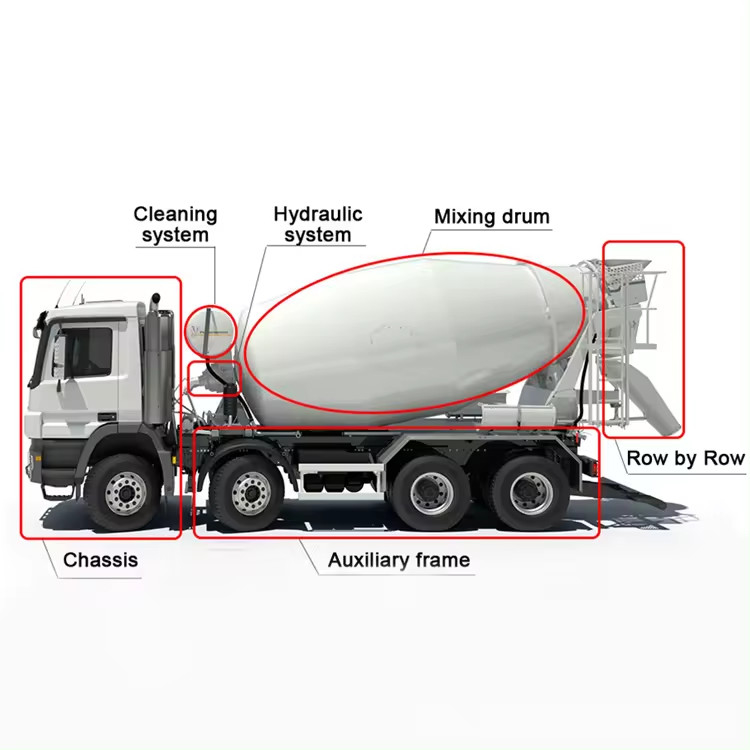

Mixing truck composition: two types of chassis, transmission system, hydraulic system, frame, mixing tank, input and exit device, water supply system, control system, ladder and other parts. The front end of the mixing tank is connected with the reducer and installed on the front end of the rack, and the back end is supported by two support wheels installed on the back end of the rack through the raceway.
.
Technical Parameters:
| Parameter |
Value |
| Curb Weight (Kg) |
13950kg |
| Chassis brand |
HOWO |
| Emission |
Euro 5 |
| Product name |
volumetric concrete truck |
| Outline Dimension(L*B*H) (mm) |
9780mm*2496mm*3990mm |
| Fuel Type |
Diesel |
| Driving type |
8*4 Left Hand Driving |
| Power |
336KW |
| Engine Capacity |
9.726L |
| Drive |
LHD/RHD |
| Product |
Concrete Mixer Truck |
| Tank volume(CBM) 12 |
| Material of Mixing Drum |
Alloy steel |
| Rear Track |
1860/1860 mm |
| Track (F/R) |
2022mm/1830mm |
| Tyre Size |
12.00R20 |
| Truck name |
concrete mixer truck |
| Rear Overhang |
2880mm |
| Max speed(Km/h) |
83 |
| wheelbase(mm) |
4000mm+1400mm |
| Front Overhang |
1500mm |
| Axle load(Kg) |
4610/8960 |
