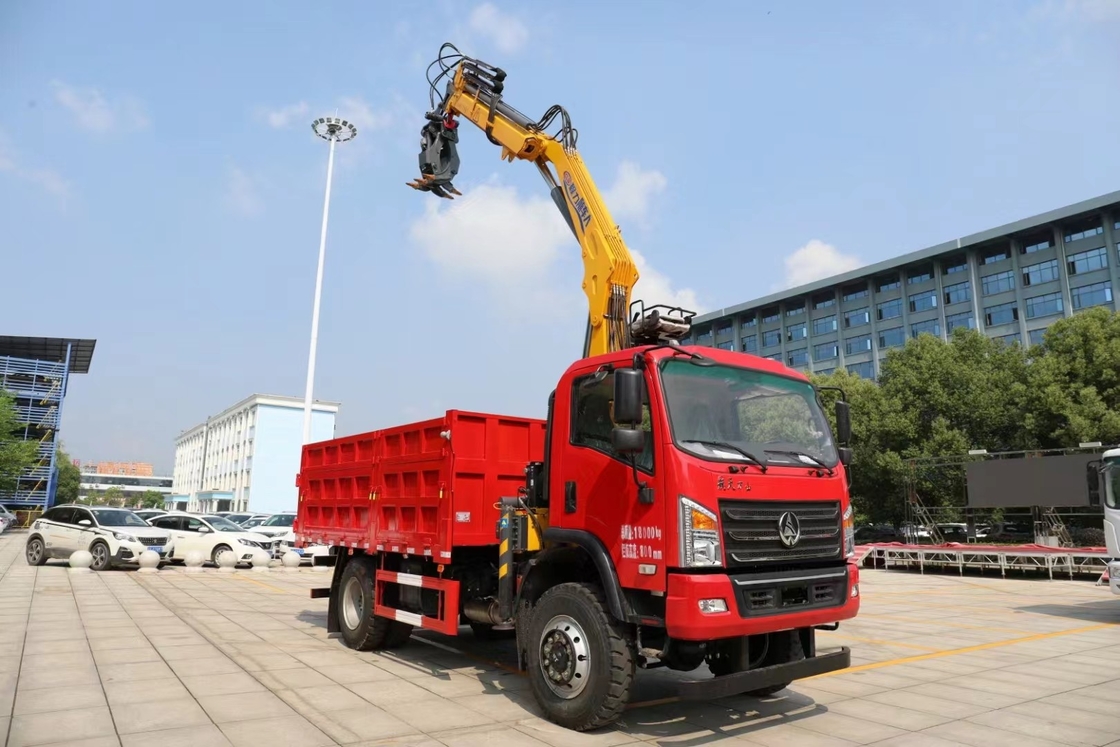

2023 3 Tons Mini Straight Telescopic Crane Truck Mounted Crane Max Speed 90 Km/H
Product Description:
Precautions during crane operation:
1) : Understand the size of the lifting cargo, find the distance between the center of the cargo and the center of the crane column, and view the lifting capacity parameters of the crane according to the distance.
2) : The lifting capacity (moment) of the crane is fixed, the larger the working radius of the crane is. The lighter the lifting cargo, the smaller the working radius, the heavier the lifting cargo. (Working radius refers to the horizontal distance from the center of torque to the hook.) -
3) : Considering the lifting size of the crane and the bearing capacity of the chassis size, the larger the girder is the better, the larger the crane is and the smaller the chassis is, the girder will be deformed and broken. The chassis is small, the engine power is small, affecting the lifting capacity of the crane. So when we consider the 230mm girder, we choose a crane below 3 tons. When considering the 250mm girder, consider the crane under 6 tons. The 280mm girder can choose a crane below 8 tons. The chassis of the rear eight wheels and the first four wheels can be considered for cranes under 10 tons
Features:
- Product Name: Truck Mounted Crane
- Condition: New
- Chassis Brand: Sinotruk Howo, Dongfeng, Foton, FAW, JAC, JMC, ISUZU, Etc
- GVW./Kerb Wt.: 9800 /5905 Kg
- Drive Type: 4X2, RHD
- Feature: Truck Crane
- Truck mounted crane hydraulic
- Lorry mounted crane
- Lorry mounted crane for sale
- Crane truck
- Truck with crane
Technical Parameters:
| Product Name |
Truck Mounted Crane |
| Chassis Brand |
Sinotruk Howo, Dongfeng, Foton, FAW, JAC, JMC, ISUZU, Etc |
| Tyre Number |
6 Tyres And 1 Spare Tyre |
| GVW./Kerb Wt. |
9800 / 5905 Kg |
| Cargo Material |
Q235 Carbon Steel |
| Wheelbase/No.of axle |
3800 Mm / 2 |
| Max. Lifting Load |
5tons/5000kgs |
| Installation Space |
850-1150mm |
| Crane Boom Type |
Straight Telescopic Crane, Knuckle Crane |
| Drive Type |
4X2, RHD |
| Engine Brand |
Yuchai, 160HP |
Customization:
Truck Mounted Crane Customization Service
Brand Name: Dongfeng
Model Number: CLW
Place of Origin: Suizhou, Hubei
Tyre Specification: 8.25R20
Cargo Thickness: Side 2mm, Bottom 3mm
Wheelbase/No. of axles: 3800 mm / 2
Drive Type: 4X2, RHD
Tyre Number: 6 tyres and 1 spare tyre
Key Features:
- Truck mounted crane with hydraulic boom
- Boom truck
- Lorry mounted crane
Our Truck Mounted Crane is custom-built to meet your specific needs and requirements. With our expertise and experience in the industry, we are able to provide you with a high-quality and reliable product that is tailored to your business needs.
By choosing our Truck Mounted Crane, you can expect:
- High-quality Dongfeng brand for durability and reliability
- Model number CLW for superior performance
- Manufactured in Suizhou, Hubei to ensure quality standards
- 8.25R20 tyre specification for excellent traction and stability
- Strong cargo thickness of 2mm on the sides and 3mm at the bottom for heavy-duty use
- Optimal wheelbase of 3800 mm for stability and maneuverability
- 2 axles for a powerful and efficient drive
- 4X2 drive type for flexibility and versatility
- RHD for ease of use in right-hand drive countries
- 6 tyres and 1 spare tyre for added safety and convenience
- Truck mounted crane with hydraulic boom for efficient lifting and loading capabilities
- Boom truck design for compact and easy handling
- Lorry mounted crane for versatility and multi-purpose use
Contact us now to discuss your Truck Mounted Crane customization needs and let us help you find the perfect solution for your business!
FAQ:
- Q: What is the brand name of this product?
A: The brand name of this product is Dongfeng.
- Q: What is the model number of this product?
A: The model number of this product is CLW.
- Q: Where is this product manufactured?
A: This product is manufactured in Suizhou, Hubei.
- Q: What is the lifting capacity of this truck mounted crane?
A: The lifting capacity of this truck mounted crane is determined by the specific model and configuration. Please refer to the product specifications for more information.
- Q: What type of materials can be lifted by this truck mounted crane?
A: This truck mounted crane is designed to lift a variety of materials, including construction materials, vehicles, and equipment. However, please refer to the product specifications for the maximum weight and size limit.
