Place of Origin:
Suizhou city, Hubei province
Brand Name:
CLW
Certification:
ISO, CCC
Model Number:
CLW5250TFCZ5

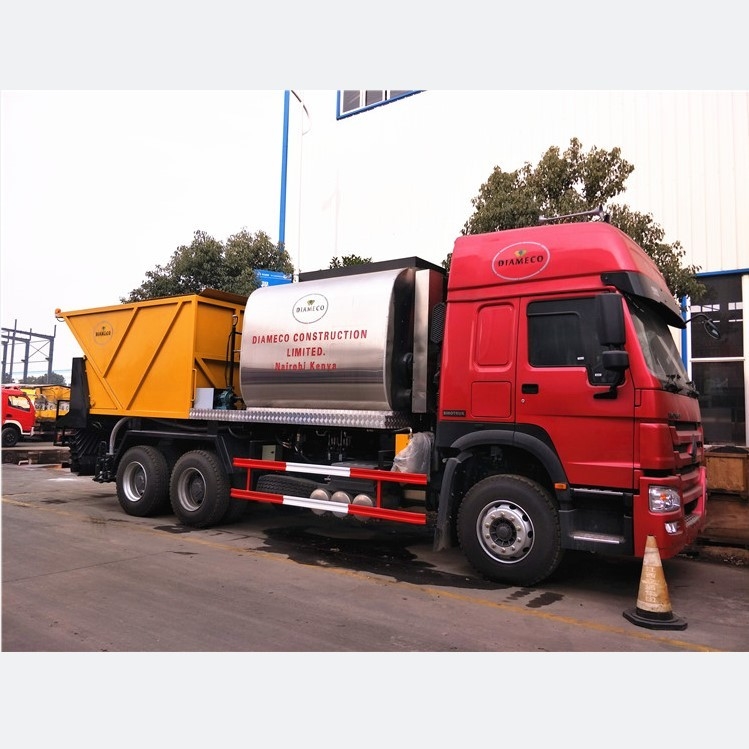

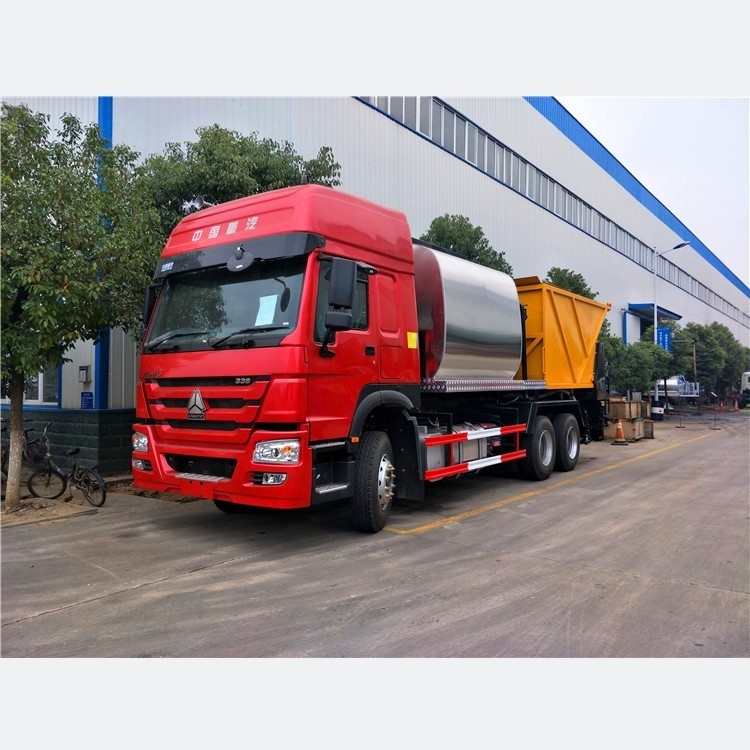

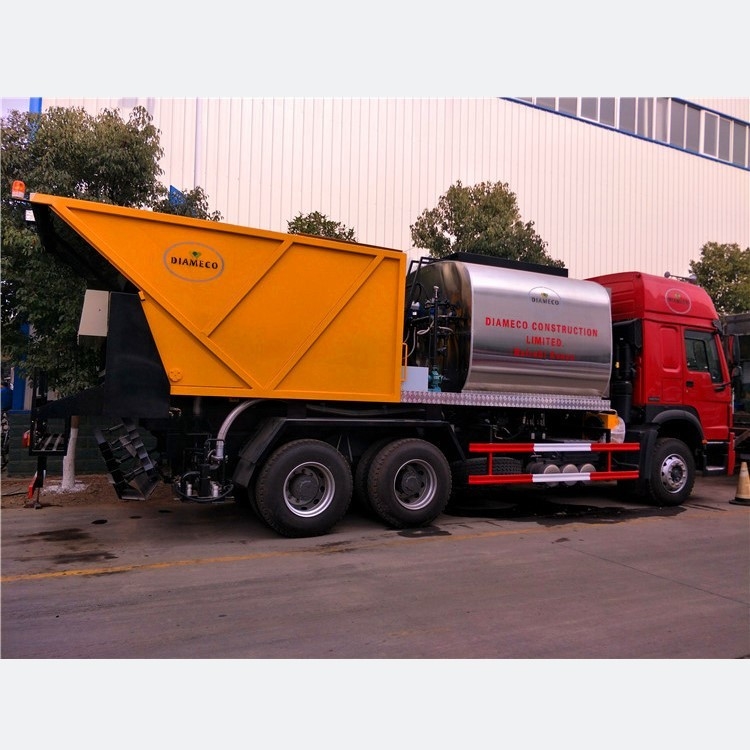

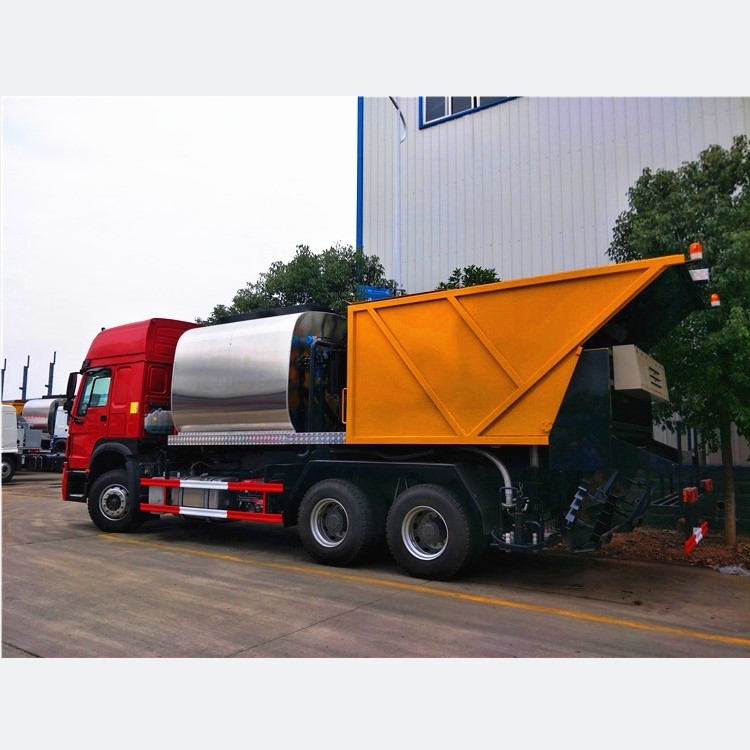

HOWO 6x4 Asphalt Synchronous Chip Sealer Truck Heated Bitumen Sprayer Truck
Desciption:
10 advantages of HOWo 6×4 asphalt spreader
Howo 6×4 asphalt distributor is highly regarded in the field of road construction and maintenance for its high performance and reliability. Here are the top 10 benefits of this model:
1. Design of large-capacity sprinkling tank
The volume of the tank is usually 10-15 cubic meters, and a filling can meet the long-term construction needs, reduce the trouble of frequent replenishment, and improve the construction efficiency.
2. Strong power, adapt to complex working conditions
Equipped with 290-400 HP engine, the powerful power output ensures that the vehicle runs smoothly in climbing, long-distance transportation and complex road conditions, even when fully loaded.
3. High precision sprinkling control
Equipped with intelligent sprinkling control system, it can realize the accurate adjustment of sprinkling width, thickness and flow rate to ensure the uniform distribution of asphalt in the construction process and achieve the best construction effect.
4. Multi-functional sprinkling mode
Support hot asphalt, emulsified asphalt, modified asphalt and other materials sprinkling, suitable for highway, national road, rural road and other road construction needs, has a wide range of applicability.
5. The heating system is efficient and energy saving
Equipped with efficient heating systems, such as heat transfer oil or fuel combustion heating, the asphalt can be quickly heated to the required temperature for construction, while providing good insulation performance and reducing energy consumption.
6. Strong distribution uniformity
The sprinkling system is equipped with high-precision nozzles and imported pumps to ensure that the sprinkling width is adjustable, the spraying pressure is stable, and it can adapt to the construction needs of different widths and thickens to achieve seamless sprinkling effect.
7. Intelligent operation
Equipped with an intelligent cockpit and automated operation panel, the driver can easily adjust the sprinkling parameters through the touch screen or remote control, reducing manual intervention and improving the accuracy and efficiency of the operation.
8. Efficient conveying and circulation system
The pipeline system adopts circulation design to ensure that the asphalt keeps flowing in the pipeline to prevent blockage; Automatic cleaning function after spraying, reduce the cleaning time after construction, improve work efficiency.
9. Strong durability of the vehicle
Howo brand chassis: solid chassis design, strong bearing capacity, can adapt to heavy load construction needs;
The tank and spray system are manufactured with highly corrosion-resistant materials, extending the service life of the vehicle.
10. Meet environmental requirements
The engine meets the national six emission standards, and the sprinkling system design reduces the asphalt dust emission during the construction process, which meets the environmental protection needs in the field of road maintenance, and is especially suitable for construction in areas with high environmental protection standards.
Sum up
Howo 6×4 asphalt distributor with its large capacity, high precision, multi-functional distribution system and intelligent design, in the road construction and maintenance performance, can meet the multiple requirements of high efficiency, safety and environmental protection, is an important tool for construction units to improve work efficiency and construction quality.
Specification:
Vehicle Model | CLW5250TFCZ5 | SINOTRUK HOWO 6x4 asphalt synchronous chip sealer truck |
Vehicle Main Dimensions | Cab type | HOWO flat proof cab, single sleeper,air conditioning |
Overall dimension(L×W×H)(mm) | 10200X2500X3730mm | |
Axle number | 3 | |
Steering type | Left Hand Drive or RHD with power steering | |
Max. Drive Speed (km/h) | 80 | |
Curb weight (kg) | 18200 | |
Chassis parameter | Chassis manufacturer: | cnhtc |
Model | ZZ1257N4347E1 | |
Transmission | Manual ,10 forward and 2 reverse | |
Power-take-off(PTO) | Full power PTO | |
Brakes | air brake | |
Tire | 12.00R20 with 1 spare tire | |
Engine parameter | Engine manufacturer | cnhtc |
Model | D10.34-50 | |
Fuel type | Diesel | |
Horse Power(kw)/(hp) | 249kw/340hp | |
Displacement(ml) | 9726ml | |
Emission Standard | Euro 3/4/5 | |
Superstructure Parameter | spraying medium | Hot asphalt, hot modified asphalt, emulsified asphalt, diluted asphalt, rubber modified asphalt, stone chip, etc |
Asphalt Tank | 8m3 with 80mm insulation layer, surface is made of stainless steel plate, | |
Chip Tank | 12m3 | |
Asphalt spraying width: | 4.5-6m | |
Asphalt spraying nozzle | 32-48 intellectualized asphalt nozzle | |
Asphalt Insulation way | All pipes can be held thermal insulation by conducting oil |
|
Asphalt pump | Made in China or Belgium | |
Asphalt motor | Made in China or Germany |
|
burners | G20 from Italy | |
Control system (PLC) | Main parts imported from Germany | |
Generator | 5.5KW HONDA Gasoline Generator |
1. Factory Supply:
a. one of the biggest and professional special using truck manufacturers in china,
b. more than 300 kinds of special truck for your needing.
2. OEM Ability: produce according to your demand, material, size, color and logo are optional for you.
3. Good Quality:
a. has solid technology, advanced equipments; reliant quality, flexible modes of operation and strict quality control system,
b. passed the ISO9001-2008 and the 3C (China Compulsory Certification),
c. our brand is china famous brand with good reputation in the market.
4. Good Service: you can contact us by 24-hour hotline or whatsapp or email.
5. Fast Delivery: 15-20 working days after payment, safe and quick delivery.
1. Price term: FOB Shanghai, China or CIF or DAF, according to customers' requirements.
2. Payment: 30-50% deposit after order confirmation, balance should be paid before delivery. All by T/T.
3. Delivery time: 15-20 working days after full payment is received.
4. Standard Steering: Left-hand drive, if you need Right-hand drive, please inform us, will make special order for you.
We highly recommend this Asphalt Synchronous Chip Sealer Truck . It's in excellent condition with good quality and competitive price. For further information, please feel free to contact me, we will offer our best service.
