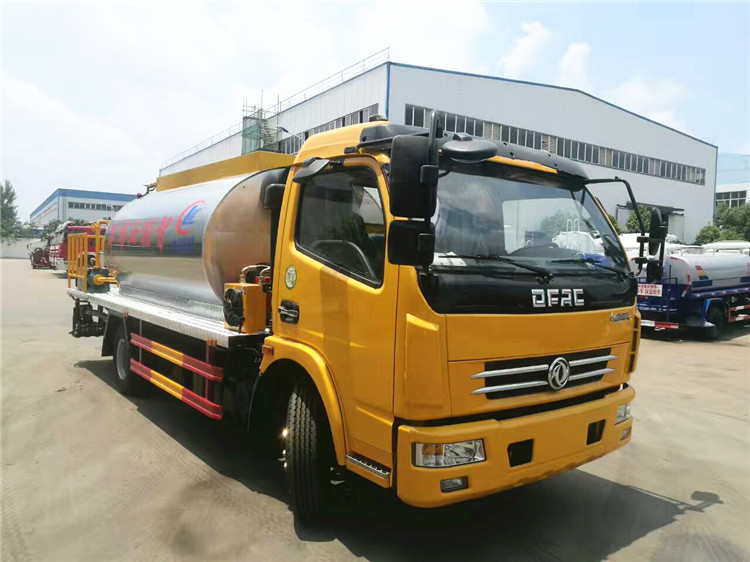

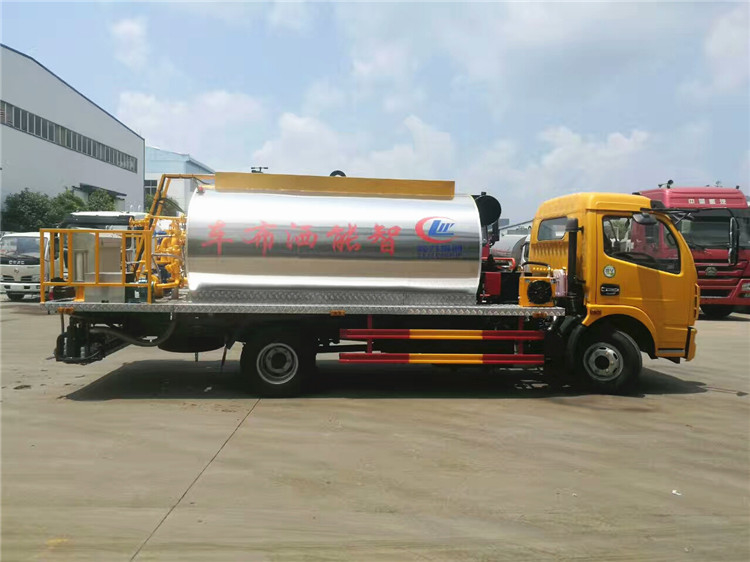

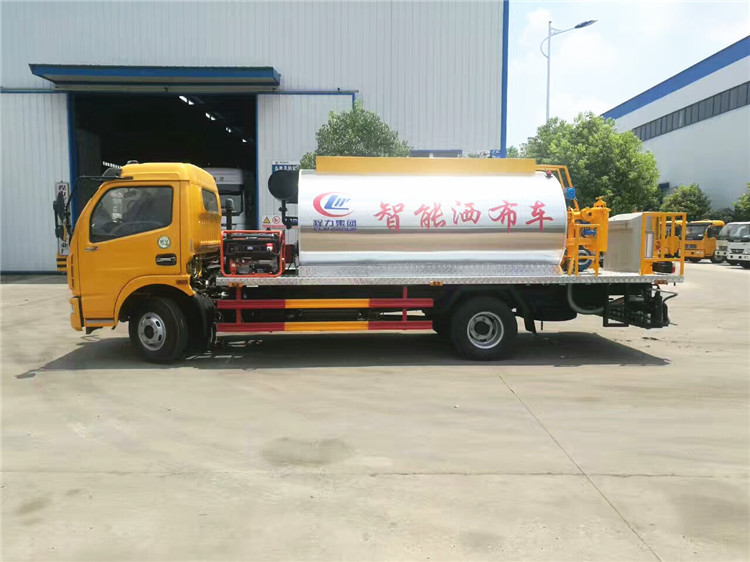

6000L Asphalt Spreader Truck Heated Bitumen 6m3 Dongfeng Road Construction Machinery
Desciption:
The 6000L Asphalt Spreader Truck, also known as a heated bitumen distributor, is a specialized piece of road construction machinery designed for efficient and precise application of asphalt. Here are the key features and specifications you might expect from such a vehicle, particularly one based on the Dongfeng platform:
Key Specifications:
Capacity:
Tank Volume: 6000 liters (6 cubic meters) for holding and distributing heated bitumen or asphalt emulsion.
Chassis:
Base Model: Typically built on a robust and reliable Dongfeng truck chassis.
Drive Configuration: Commonly 4×2 for good maneuverability and adequate power for urban and rural road construction.
Engine:
Performance: Adequate horsepower to ensure smooth operation of both the vehicle and the asphalt spreading mechanism.
Emission Standards: Euro 6 compliant, ensuring low emissions and meeting stringent environmental regulations.
Asphalt Heating and Distribution System:
Heating System: Equipped with a burner and heating system to maintain the asphalt at the required temperature for optimal spreading.
Spraying Width: Typically can spread asphalt over a width of up to 6 meters (about 19.7 feet).

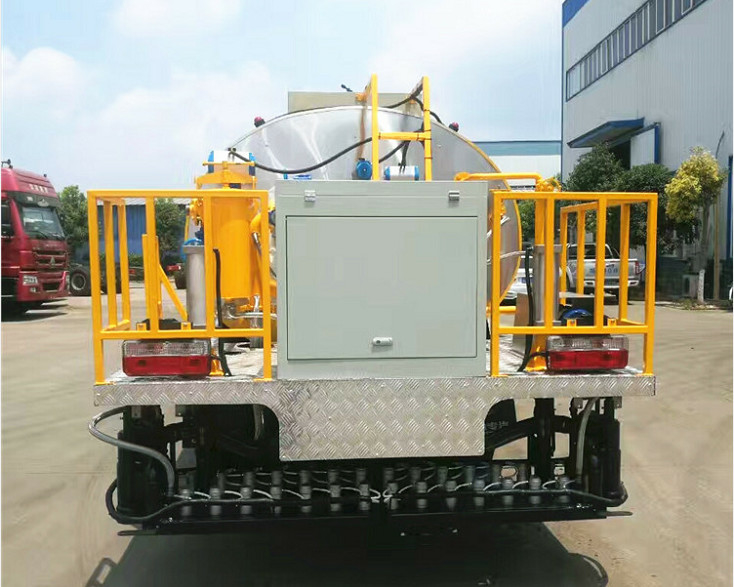

Spraying Mechanism: Includes a high-pressure spray bar with adjustable nozzles for precise application.
Insulation: The tank is usually well-insulated to maintain the temperature of the asphalt.
Control System:
Automated Controls: Advanced control systems for adjusting the spray width, rate, and pressure.
In-Cab Controls: Operator can control the spraying mechanism from within the driver’s cab for convenience and safety.
Safety Features:
Burner Safety: Equipped with safety mechanisms to prevent overheating and ensure safe operation of the burner and heating system.
Emergency Shutdown: Systems in place for immediate shutdown in case of a malfunction.
Additional Features:
Storage Compartments: For tools and additional equipment.
Lighting: Adequate lighting for nighttime operations or low-visibility conditions.
Reflective Markings: Ensures visibility and safety on the road.
Applications:
Road Construction: Ideal for the precise and efficient application of asphalt during road construction and maintenance.
Pavement Repair: Useful for patching and repairing damaged road surfaces.
Surface Dressing: Suitable for tasks such as sealing, surface dressing, and priming in roadworks.
Would you like more detailed information on any specific aspect of this asphalt spreader truck?
Specification:
|
Item
|
Parameter
|
|
Vehicle name
|
DFAC DLK Asphalt distributor truck
|
|
Vehicle model
|
CLW5070GLQ3
|
|
Chassis model
|
EQ1090T9ADJ3AC
|
|
Curb weight
|
5850 kg
|
|
Overall dimensions
|
7380×2280×2550 mm
|
|
Wheel base
|
3800 mm
|
|
Fuel type
|
Diesel
|
|
Engine model
|
YC4E140-33
|
|
Engine horse power
|
140 hp
|
|
Displacement
|
426 ml
|
|
Emission standard
|
Euro 3
|
|
Tire specification
|
7.50R16
|
|
Number of tires
|
6+1 SPARE
|
|
Traction system
|
4×2
|
|
Transmission
|
6-speed with over drive
|
|
Max speed
|
90 km/h
|
|
Driver's cab
|
Single row, flat head.
|
|
Common configuration
|
1. Asphalt pump: QGB270 (high viscosity asphalt pump, 270L/min);
2. Adopt hydraulic drive, hydraulic pump: CBQ540-L, asphalt pump
hydraulic motor model G5-16, manual reversing valve;
3. Spreading width of 4.5 meters, 16 asphalt nozzles;
4. Heating method:
Riyadh burner (G20) imported from Italy is directly burned without heat transfer oil;
5. Spray medium: spray emulsified asphalt.
|
Standard configuration
(Optional)
|
1. Asphalt pump: QGB450 (high viscosity asphalt pump, 450L/min);
2. Hydraulic system: manual reversing valve, asphalt pump hydraulic drive motor model 05-110-BD31; hydraulic pump adopts CBQ550-L;
3. Spreading width: 4.5 meters; 6 meters and 39 nozzles;
4. Control mode: rear working platform operation box control; 34 pneumatic nozzles (one control-);
5. Heating method: Italian imported Riyadh burner (G20) + heat transfer oil to automatically heat up;
6. Generator: 6KW gasoline generator;
7. Spray medium: emulsified asphalt, hot asphalt, modified asphalt, etc.
|
Smart configuration
(Optional)
|
1. Asphalt pump: QGB680 (high viscosity asphalt pump);
2. Hydraulic system: proportional valve (Taiwan EFBG-03-160-HF), automatic reversing valve and relief valve, radiator adopts Risheng brand, asphalt pump hydraulic drive motor model 05-110-BD31; hydraulic
pump: CBQ550 -L;
3. Control method: touch screen computer intelligent control in the cab, control system (Siemens, Germany); 34 asphalt intelligent nozzles (one control and one);
4. Heating method: automatic heating of heat transfer oil + burner G20 (imported from Italy);
5. Gasoline generator: 6kw;
6. Spreading volume: 0.25-3L/㎡;
7. Spreading width 4.5 meters; 6 meters 39 nozzles;
8. Spray medium: emulsified asphalt, hot asphalt, modified asphalt, etc.
|
|
Production cycle
|
15-20 working days
|
|
Warranty
|
12 month, from the date of supply
|
Application:
Our Services
1. Factory Supply:
a. one of the biggest and professional special using truck manufacturers in china,
b. more than 300 kinds of special truck for your needing.
2. OEM Ability: produce according to your demand, material, size, color and logo are optional for you.
3. Good Quality:
a. has solid technology, advanced equipments; reliant quality, flexible modes of operation and strict quality control system,
b. passed the ISO9001-2008 and the 3C (China Compulsory Certification),
c. our brand is china famous brand with good reputation in the market.
4. Good Service: you can contact us by 24-hour hotline or whatsapp or email.
5. Fast Delivery: 15-20 working days after payment, safe and quick delivery.
FAQ
1. Price term: FOB Shanghai, China or CIF or DAF, according to customers' requirements.
2. Payment: 30-50% deposit after order confirmation, balance should be paid before delivery. All by T/T.
3. Delivery time: 15-20 working days after full payment is received.
4. Standard Steering: Left-hand drive, if you need Right-hand drive, please inform us, will make special order for you.
We highly recommend this Asphalt Synchronous Chip Sealer Truck . It's in excellent condition with good quality and competitive price. For further information, please feel free to contact me, we will offer our best service.
