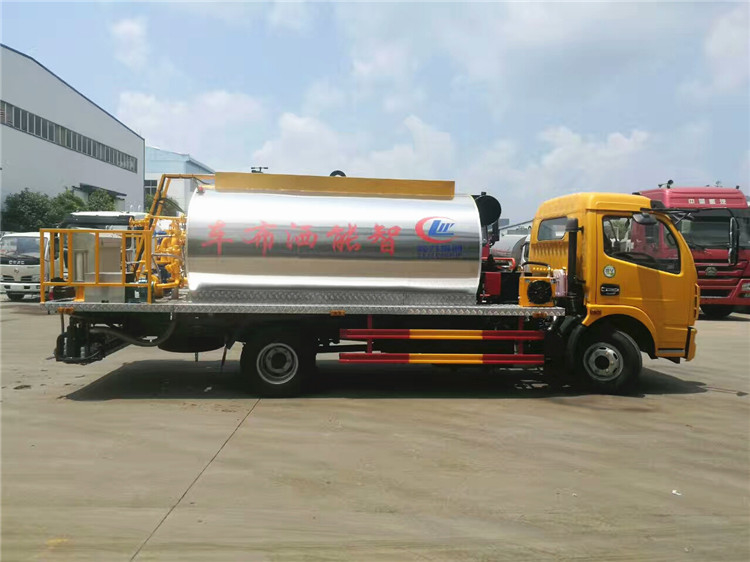

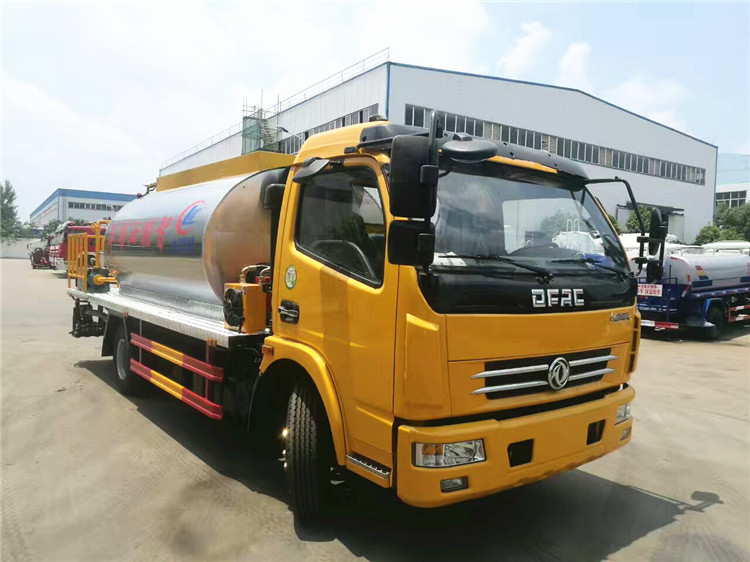

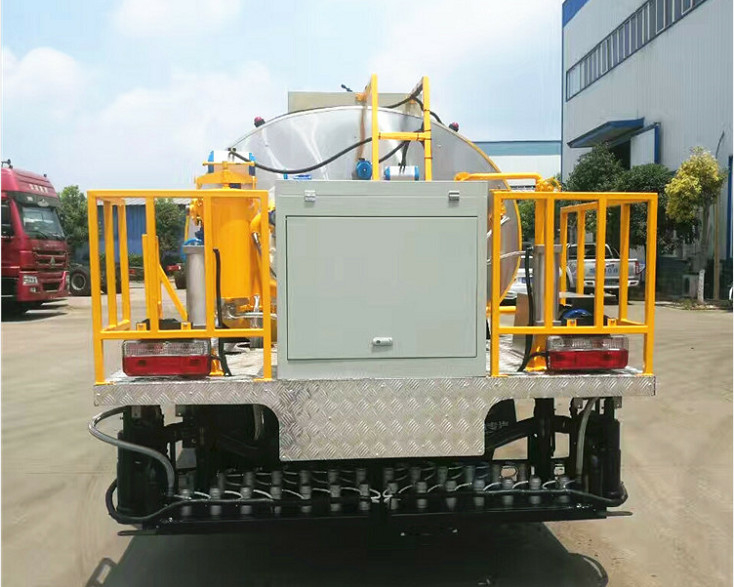

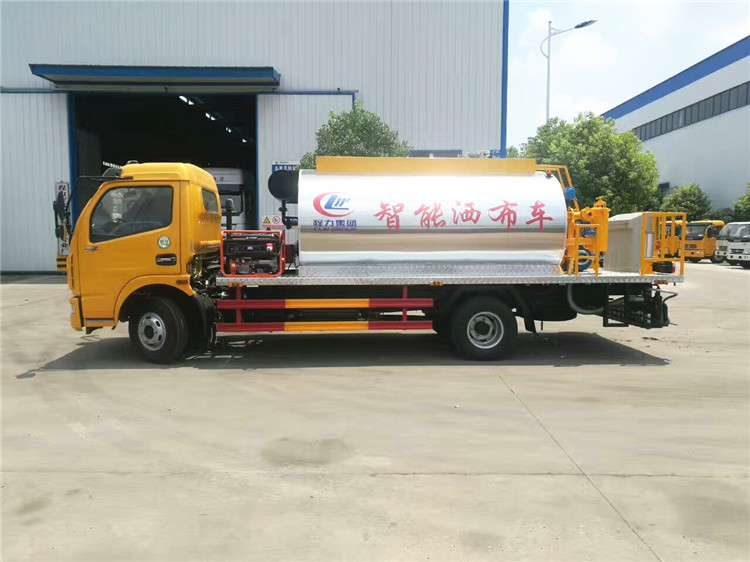

Dongfeng 6000 liters asphalt distributor truck bitumen spreader truck
Desciption:
Asphalt spreader is an important pavement construction machine, widely used in highway, urban road, airport, port and other places of pavement construction and maintenance engineering. The following is a detailed introduction to the asphalt distributor:
Definition and function
Asphalt sprinkling truck refers to the tank type special operation vehicle equipped with insulation container, asphalt pump, heater and spraying system, which is mainly used for spraying hot asphalt, emulsified asphalt, residual oil and other liquid asphalt. Its functions include, but are not limited to:
Transport and distribute liquid bitumen, including hot bitumen, emulsified bitumen and residual oil.
Asphalt binder is supplied to the soil that is loosened in situ for the construction of asphalt stabilized soil pavement or pavement base.
Pavement construction and maintenance are carried out on highways, urban roads, airports and port terminals.
Second, the working principle
The working principle of asphalt spreader mainly involves three aspects: asphalt supply, spreader control and hydraulic transmission:
Asphalt supply: Through asphalt tanks and delivery systems, ensuring a continuous and stable supply of asphalt.
Sprinkling control: The control system adjusts the width, thickness and amount of sprinkling to achieve accurate construction.
Hydraulic transmission: drive each component of the sprinkling system to ensure smooth construction.
3. Characteristics and advantages
Intelligent operation: Modern asphalt distributor adopts intelligent control system, and the whole process of sprinkling can be completed in the cab, which greatly improves the construction efficiency.
Accurate construction: Through computer control, each nozzle can be controlled separately, and the width and amount of sprinkling can be adjusted arbitrarily to ensure the construction quality.
High efficiency and energy saving: High performance asphalt pumps and heating systems are used to reduce energy consumption and improve construction efficiency.
Safe and reliable: with a variety of safety protection measures, such as automatic control of thermal oil heating system, low failure rate and easy maintenance.
Iv. Application scenarios
Asphalt spreader can be used in a variety of scenarios, including but not limited to:
Pavement construction and maintenance of highways, urban roads, airports and port terminals.
The spreading of permeable layer, waterproof layer and bonding layer of asphalt pavement of high grade highway.
Asphalt covering, spraying and other operations in highway maintenance.
Implement the layered paving technology of county and township level road oil road construction.
5. Development Trend
With the continuous development of road construction technology and the improvement of intelligent level, asphalt sprinklers are also constantly upgraded and improved. In the future, asphalt sprinklers will be more intelligent, efficient and environmentally friendly, and provide better services for road construction and maintenance.
In summary, as an important equipment for pavement construction, asphalt sprinklers play an irreplaceable role in the construction of highways and urban roads. Its unique working principle, remarkable characteristics and advantages, as well as a wide range of application scenarios, make the asphalt distributor an indispensable tool in the field of road construction and maintenance.
Specification:
|
Item
|
Parameter
|
|
Vehicle name
|
DFAC DLK Asphalt distributor truck
|
|
Vehicle model
|
CLW5070GLQ3
|
|
Chassis model
|
EQ1090T9ADJ3AC
|
|
Curb weight
|
5850 kg
|
|
Overall dimensions
|
7380×2280×2550 mm
|
|
Wheel base
|
3800 mm
|
|
Fuel type
|
Diesel
|
|
Engine model
|
YC4E140-33
|
|
Engine horse power
|
140 hp
|
|
Displacement
|
426 ml
|
|
Emission standard
|
Euro 3
|
|
Tire specification
|
7.50R16
|
|
Number of tires
|
6+1 SPARE
|
|
Traction system
|
4×2
|
|
Transmission
|
6-speed with over drive
|
|
Max speed
|
90 km/h
|
|
Driver's cab
|
Single row, flat head.
|
|
Common configuration
|
1. Asphalt pump: QGB270 (high viscosity asphalt pump, 270L/min);
2. Adopt hydraulic drive, hydraulic pump: CBQ540-L, asphalt pump
hydraulic motor model G5-16, manual reversing valve;
3. Spreading width of 4.5 meters, 16 asphalt nozzles;
4. Heating method:
Riyadh burner (G20) imported from Italy is directly burned without heat transfer oil;
5. Spray medium: spray emulsified asphalt.
|
Standard configuration
(Optional)
|
1. Asphalt pump: QGB450 (high viscosity asphalt pump, 450L/min);
2. Hydraulic system: manual reversing valve, asphalt pump hydraulic drive motor model 05-110-BD31; hydraulic pump adopts CBQ550-L;
3. Spreading width: 4.5 meters; 6 meters and 39 nozzles;
4. Control mode: rear working platform operation box control; 34 pneumatic nozzles (one control-);
5. Heating method: Italian imported Riyadh burner (G20) + heat transfer oil to automatically heat up;
6. Generator: 6KW gasoline generator;
7. Spray medium: emulsified asphalt, hot asphalt, modified asphalt, etc.
|
Smart configuration
(Optional)
|
1. Asphalt pump: QGB680 (high viscosity asphalt pump);
2. Hydraulic system: proportional valve (Taiwan EFBG-03-160-HF), automatic reversing valve and relief valve, radiator adopts Risheng brand, asphalt pump hydraulic drive motor model 05-110-BD31; hydraulic
pump: CBQ550 -L;
3. Control method: touch screen computer intelligent control in the cab, control system (Siemens, Germany); 34 asphalt intelligent nozzles (one control and one);
4. Heating method: automatic heating of heat transfer oil + burner G20 (imported from Italy);
5. Gasoline generator: 6kw;
6. Spreading volume: 0.25-3L/㎡;
7. Spreading width 4.5 meters; 6 meters 39 nozzles;
8. Spray medium: emulsified asphalt, hot asphalt, modified asphalt, etc.
|
|
Production cycle
|
15-20 working days
|
|
Warranty
|
12 month, from the date of supply
|
Application:
Our Services
1. Factory Supply:
a. one of the biggest and professional special using truck manufacturers in china,
b. more than 300 kinds of special truck for your needing.
2. OEM Ability: produce according to your demand, material, size, color and logo are optional for you.
3. Good Quality:
a. has solid technology, advanced equipments; reliant quality, flexible modes of operation and strict quality control system,
b. passed the ISO9001-2008 and the 3C (China Compulsory Certification),
c. our brand is china famous brand with good reputation in the market.
4. Good Service: you can contact us by 24-hour hotline or whatsapp or email.
5. Fast Delivery: 15-20 working days after payment, safe and quick delivery.
FAQ
1. Price term: FOB Shanghai, China or CIF or DAF, according to customers' requirements.
2. Payment: 30-50% deposit after order confirmation, balance should be paid before delivery. All by T/T.
3. Delivery time: 15-20 working days after full payment is received.
4. Standard Steering: Left-hand drive, if you need Right-hand drive, please inform us, will make special order for you.
We highly recommend this Asphalt Synchronous Chip Sealer Truck . It's in excellent condition with good quality and competitive price. For further information, please feel free to contact me, we will offer our best service.
