Name: 6m3 4x2 Asphalt Distribution Truck , Heated Bitumen Sprayer Truck
Brand: CLW
SKU: CLW5070GLQ3
Price: 325 USD
Availability: InStock
Rating: 4.7 (101 reviews)

Home > products > Asphalt Distribution Truck >

6m3 4x2 Asphalt Distribution Truck , Heated Bitumen Sprayer Truck

6m3 Asphalt Distribution Truck

4x2 Asphalt Distribution Truck

Bitumen Sprayer Truck

Place of Origin:

Suizhou city, Hubei province

Brand Name:

CLW

Certification:

ISO, CCC

Model Number:

CLW5070GLQ3

Request A Quote

6m3 4x2 Asphalt Distribution Truck , Heated Bitumen Sprayer Truck

Product Details

Product Name:

Asphalt Distributor Truck

Overall Dimension:

7380×2280×2550 Mm

Steering Type:

Left Hand Drive Or RHD With Power Steering

Capacity:

6m3 Asphalt Tank

Application:

Asphalt Road Construction

Color & Logo:

Per Customer Requirement

Highlight:

6m3 Asphalt Distribution Truck

4x2 Asphalt Distribution Truck

Bitumen Sprayer Truck

Payment & Shipping Terms

Minimum Order Quantity

1 unit

Price

USD325,000-USD36,000

Packaging Details

Nude, ship by roll roll ship or bulk ship

Delivery Time

30 working days after deposit received

Payment Terms

T/T, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 units per year

Dongfeng 6000 Liter 6m3 Bitumen Spreader Truck Distributor Truck Rhd

Get Best Price

6000L Asphalt Spreader Truck Heated Bitumen 6m3 Dongfeng Road Construction Machinery

Get Best Price

QGB950 Asphalt Distribution Truck 24cbm , 8x4 Multi-Functional Chip Sealer ruck

Get Best Price

6m3 4x2 Asphalt Distribution Truck , Heated Bitumen Sprayer Truck

Get Best Price

Contact Now

Product Description

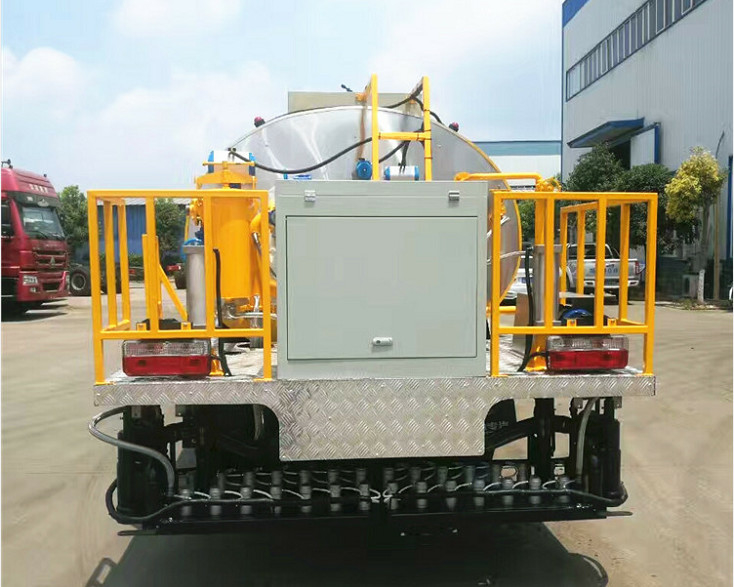

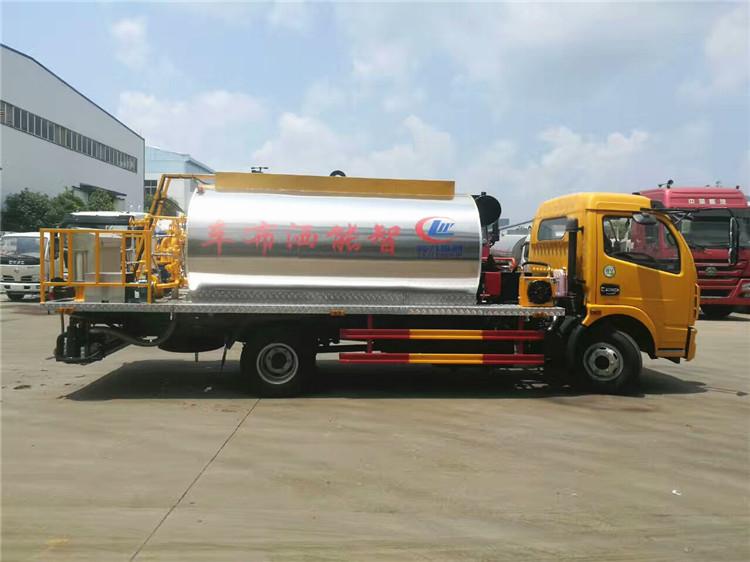

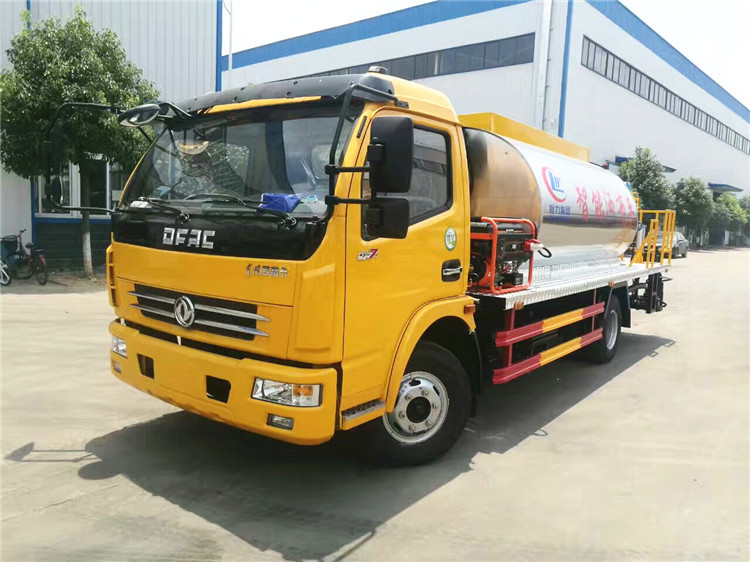

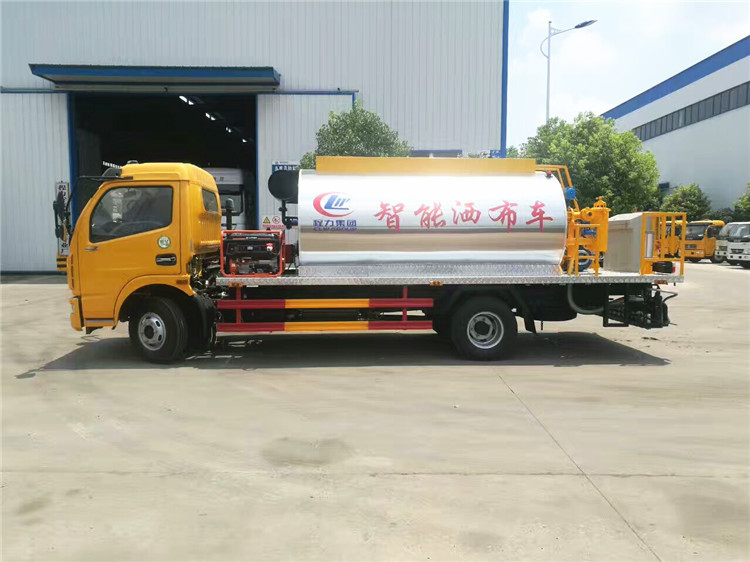

6m3 Dongfeng 4x2 heated bitumen sprayer asphalt distributor trucks

Desciption:

Asphalt spraying vehicle / asphalt distributor / bitumen spreader truck can also be defined as a liquid asphalt which is sprayed with hot asphalt, emulsified asphalt and residual oil. Road construction machinery; can be widely used in road construction, urban roads, airports, port terminals and reservoirs; large-capacity asphalt spreader can also be used as asphalt carrier, mainly used for asphalt penetration method surface treatment, through layer Construction and maintenance projects such as in-situ mixing, asphalt mixing and asphalt mixing.

Asphalt spreader vehicle refers to a tank-type special operation vehicle equipped with an insulated container, an asphalt pump, a heater and a spraying system for spraying asphalt.

Specification:

Item	Parameter
Vehicle name	DFAC DLK Asphalt distributor truck
Vehicle model	CLW5070GLQ3
Chassis model	EQ1090T9ADJ3AC
Curb weight	5850 kg
Overall dimensions	7380×2280×2550 mm
Wheel base	3800 mm
Fuel type	Diesel
Engine model	YC4E140-33
Engine horse power	140 hp
Displacement	426 ml
Emission standard	Euro 3
Tire specification	7.50R16
Number of tires	6+1 SPARE
Traction system	4×2
Transmission	6-speed with over drive
Max speed	90 km/h
Driver's cab	Single row, flat head.
Common configuration	1. Asphalt pump: QGB270 (high viscosity asphalt pump, 270L/min); 2. Adopt hydraulic drive, hydraulic pump: CBQ540-L, asphalt pump hydraulic motor model G5-16, manual reversing valve; 3. Spreading width of 4.5 meters, 16 asphalt nozzles; 4. Heating method: Riyadh burner (G20) imported from Italy is directly burned without heat transfer oil; 5. Spray medium: spray emulsified asphalt.
Standard configuration (Optional)	1. Asphalt pump: QGB450 (high viscosity asphalt pump, 450L/min); 2. Hydraulic system: manual reversing valve, asphalt pump hydraulic drive motor model 05-110-BD31; hydraulic pump adopts CBQ550-L; 3. Spreading width: 4.5 meters; 6 meters and 39 nozzles; 4. Control mode: rear working platform operation box control; 34 pneumatic nozzles (one control-); 5. Heating method: Italian imported Riyadh burner (G20) + heat transfer oil to automatically heat up; 6. Generator: 6KW gasoline generator; 7. Spray medium: emulsified asphalt, hot asphalt, modified asphalt, etc.
Smart configuration (Optional)	1. Asphalt pump: QGB680 (high viscosity asphalt pump); 2. Hydraulic system: proportional valve (Taiwan EFBG-03-160-HF), automatic reversing valve and relief valve, radiator adopts Risheng brand, asphalt pump hydraulic drive motor model 05-110-BD31; hydraulic pump: CBQ550 -L; 3. Control method: touch screen computer intelligent control in the cab, control system (Siemens, Germany); 34 asphalt intelligent nozzles (one control and one); 4. Heating method: automatic heating of heat transfer oil + burner G20 (imported from Italy); 5. Gasoline generator: 6kw; 6. Spreading volume: 0.25-3L/㎡; 7. Spreading width 4.5 meters; 6 meters 39 nozzles; 8. Spray medium: emulsified asphalt, hot asphalt, modified asphalt, etc.
Production cycle	15-20 working days
Warranty	12 month, from the date of supply

Application:

Our Services

1. Factory Supply:
a. one of the biggest and professional special using truck manufacturers in china,
b. more than 300 kinds of special truck for your needing.

2. OEM Ability: produce according to your demand, material, size, color and logo are optional for you.

3. Good Quality:
a. has solid technology, advanced equipments; reliant quality, flexible modes of operation and strict quality control system,
b. passed the ISO9001-2008 and the 3C (China Compulsory Certification),
c. our brand is china famous brand with good reputation in the market.

4. Good Service: you can contact us by 24-hour hotline or whatsapp or email.

5. Fast Delivery: 15-20 working days after payment, safe and quick delivery.

FAQ

1. Price term: FOB Shanghai, China or CIF or DAF, according to customers' requirements.

2. Payment: 30-50% deposit after order confirmation, balance should be paid before delivery. All by T/T.

3. Delivery time: 15-20 working days after full payment is received.

4. Standard Steering: Left-hand drive, if you need Right-hand drive, please inform us, will make special order for you.

We highly recommend this Asphalt Synchronous Chip Sealer Truck . It's in excellent condition with good quality and competitive price. For further information, please feel free to contact me, we will offer our best service.
