24m3 Asphalt Distribution Truck 8x4 , Synchronous Chip Sealer Truck

Asphalt Distribution Truck 8x4

24m3 Asphalt Distribution Truck

Synchronous Chip Sealer Truck

Place of Origin:

Suizhou city, Hubei province

Brand Name:

CLW

Certification:

ISO, CCC

Model Number:

CLW5250TFCZ5

Request A Quote

24m3 Asphalt Distribution Truck 8x4 , Synchronous Chip Sealer Truck

Product Details

Product Name:

Synchronous Seal Coating Truck

Overall Dimension:

10200X2500X3730mm

Steering Type:

Left Hand Drive Or RHD With Power Steering

Capacity:

8m3 Asphalt Tank &12m3 Stone Silo

Control Mode:

Intelligent Control

Color & Logo:

Per Customer Requirement

Highlight:

Asphalt Distribution Truck 8x4

24m3 Asphalt Distribution Truck

Synchronous Chip Sealer Truck

Payment & Shipping Terms

Minimum Order Quantity

1 unit

Price

USD125,000-USD138,000

Packaging Details

Nude, ship by roll roll ship or bulk ship

Delivery Time

30 working days after deposit received

Payment Terms

T/T, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 units per year

Dongfeng 6000 Liter 6m3 Bitumen Spreader Truck Distributor Truck Rhd

Get Best Price

6000L Asphalt Spreader Truck Heated Bitumen 6m3 Dongfeng Road Construction Machinery

Get Best Price

QGB950 Asphalt Distribution Truck 24cbm , 8x4 Multi-Functional Chip Sealer ruck

Get Best Price

6m3 4x2 Asphalt Distribution Truck , Heated Bitumen Sprayer Truck

Get Best Price

Contact Now

Product Description

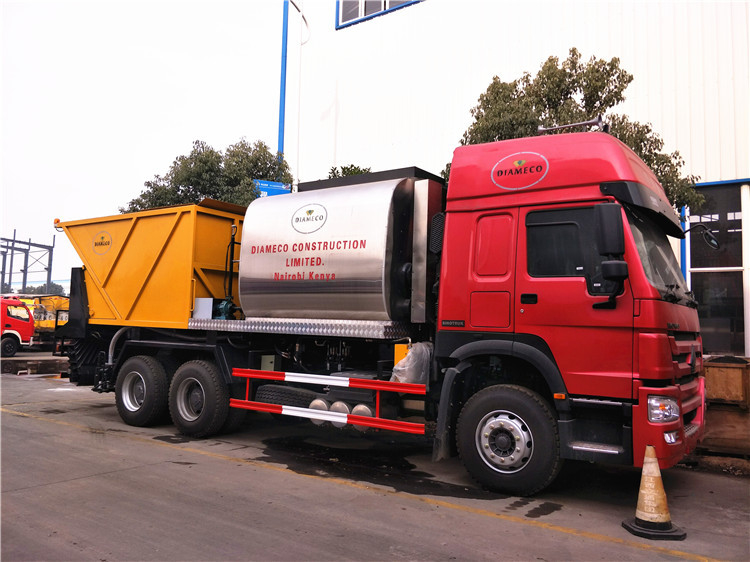

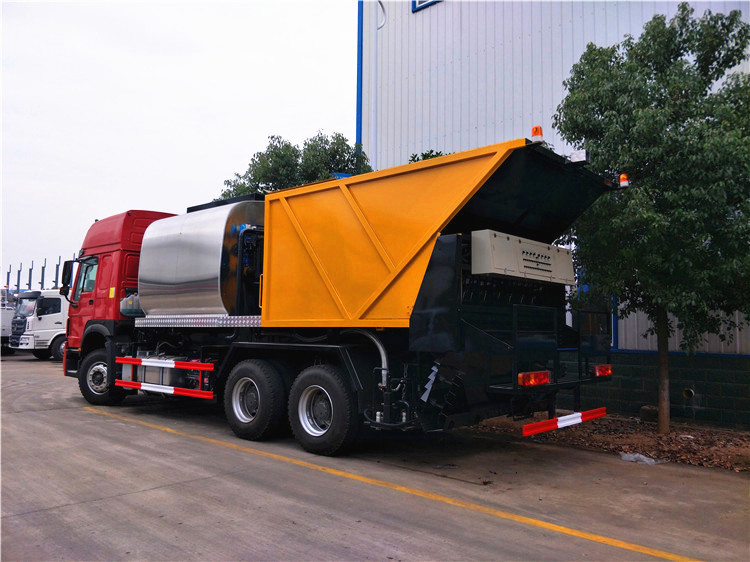

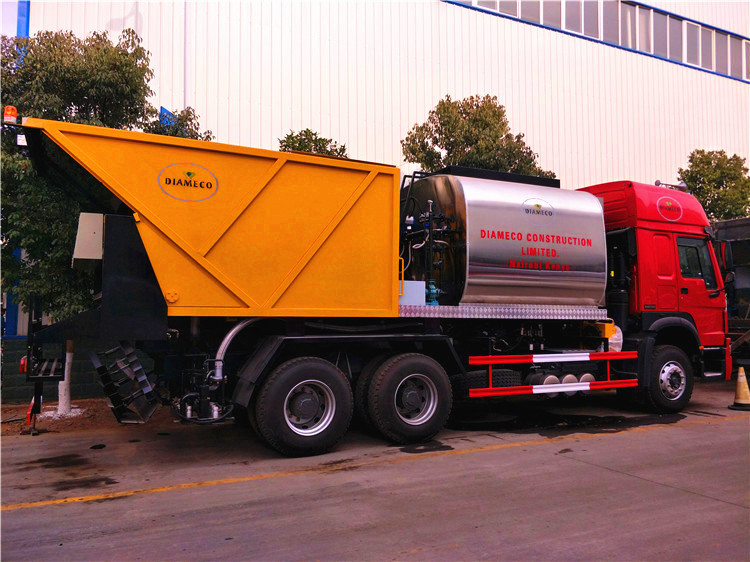

Asphalt Gravel Truck 24m3 SINOTRUK HOWO 8x4 Synchronous Chip Sealer Truck

Desciption:

Asphalt synchronous chip sealer truck is also called bitumen spray truck, it can distribute liquid asphalt, emulsified asphalt, hot asphalt, rubber asphalt, etc. The synchronous gravel sealer is used in the gravel seal process of road surface, bridge deck waterproofing, and lower seal layer. It is a special equipment that synchronizes the spraying of the asphalt binder and the spreading of the aggregate to make the most sufficient surface contact between the asphalt binder and the aggregate to achieve the maximum adhesion between them.

1. Asphalt tank: 8 cubic meters, stone silo: 12 cubic meters
2. Asphalt pump adopts QGB950 (high viscosity asphalt pump, 950 liters/min);
3. Hydraulic system: GPC4-50-20-16 (Tianjin) triple gear pump, automatic reversing valve and overflow valve, asphalt pump hydraulic drive motor model 05-130-BD31; EFRD-G03-160-5-31 ( Taiwan) Proportional valve.
4. Control mode: touch-screen computer intelligent control in the cab, control system (German STW module), 32 asphalt intelligent nozzles (one control, one), 36 stone debris gates;
5. The maximum spreading width is 4 meters, the asphalt spreading amount: 0.25-4.0 L/m2, the stone chip spreading amount: adjustable
6. Heating method: heat-conducting oil automatic heating + dual burner G20 (Italy imported Riello).
7. Gasoline engine: Honda 5.5kw or hydraulic motor drive. (Optional agitator; vertical agitator plus 10,000)
8. Spraying medium: emulsified asphalt, hot asphalt, modified asphalt, etc.

Specification:

Vehicle Model	CLW5250TFCZ5	SINOTRUK HOWO 6x4 asphalt synchronous chip sealer truck
Vehicle Main Dimensions	Cab type	HOWO flat proof cab, single sleeper,air conditioning
	Overall dimension(L×W×H)(mm)	10200X2500X3730mm
	Axle number	3
	Steering type	Left Hand Drive or RHD with power steering
	Max. Drive Speed (km/h)	80
	Curb weight (kg)	18200
Chassis parameter	Chassis manufacturer:	cnhtc
	Model	ZZ1257N4347E1
	Transmission	Manual ,10 forward and 2 reverse
	Power-take-off(PTO)	Full power PTO
	Brakes	air brake
	Tire	12.00R20 with 1 spare tire
Engine parameter	Engine manufacturer	cnhtc
	Model	D10.34-50
	Fuel type	Diesel
	Horse Power(kw)/(hp)	249kw/340hp
	Displacement(ml)	9726ml
	Emission Standard	Euro 3/4/5
Superstructure Parameter	spraying medium	Hot asphalt, hot modified asphalt, emulsified asphalt, diluted asphalt, rubber modified asphalt, stone chip, etc
	Asphalt Tank	8m3 with 80mm insulation layer, surface is made of stainless steel plate,
	Chip Tank	12m3
	Asphalt spraying width:	4.5-6m
	Asphalt spraying nozzle	32-48 intellectualized asphalt nozzle
	Asphalt Insulation way	All pipes can be held thermal insulation by conducting oil
	Asphalt pump	Made in China or Belgium
	Asphalt motor	Made in China or Germany
	burners	G20 from Italy
	Control system (PLC)	Main parts imported from Germany
	Generator	5.5KW HONDA Gasoline Generator

Application:

Our Services

1. Factory Supply:
a. one of the biggest and professional special using truck manufacturers in china,
b. more than 300 kinds of special truck for your needing.

2. OEM Ability: produce according to your demand, material, size, color and logo are optional for you.

3. Good Quality:
a. has solid technology, advanced equipments; reliant quality, flexible modes of operation and strict quality control system,
b. passed the ISO9001-2008 and the 3C (China Compulsory Certification),
c. our brand is china famous brand with good reputation in the market.

4. Good Service: you can contact us by 24-hour hotline or whatsapp or email.

5. Fast Delivery: 15-20 working days after payment, safe and quick delivery.

FAQ

1. Price term: FOB Shanghai, China or CIF or DAF, according to customers' requirements.

2. Payment: 30-50% deposit after order confirmation, balance should be paid before delivery. All by T/T.

3. Delivery time: 15-20 working days after full payment is received.

4. Standard Steering: Left-hand drive, if you need Right-hand drive, please inform us, will make special order for you.

We highly recommend this Asphalt Synchronous Chip Sealer Truck . It's in excellent condition with good quality and competitive price. For further information, please feel free to contact me, we will offer our best service.
